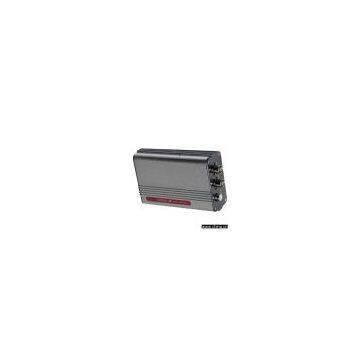

Sell Video Server

Model No.:sn2220s
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:T/T, Western Union
Certification:CE, FCC, BSMI
Description:MPEG-4 video server box is an internet-based digital media server. It compresses video and audio source. Upload the compressed live video and audio into intranet-internet through Ethernet connection. MPEG-4 video server box is a self-contained web server. Users could access the AV IP-VIDEO SERVER by using standard Internet Browser such as IE or any other internet browser. Performing the management, configuration, and monitoring easily. MPEG-4 video server box contains image compression chipset that is capable of delivering standard MPEG-4, and real-time video into network connection with limited bandwidth. Hardware specification: 1) Video compress: MPEG-4 2) Internal micphone: yes (built-in micphone) 3) External micphone: yes (RCA Interface / ADPCM) 4) TV out: yes (NTSC and PAL) 5) Video size: 720 x 480, 640 x 480, 320 x 240, 160 x 120 6) Video input: 1 channel BNC connector 7) Video output: 1 channel BNC connector 8) Video-in format: NTSC and PAL 9) Compression: MPEG-4 10) Frame rate: 30fps 11) Video record function: MPEG-4, AVI, Video with Audio 12) Motion detection: Yes 13) Audio format: ADPCM, G.726 14) Built-in RTC (Real Time Colck) 15) Power adaptor DC input: DC 5V/2A Networking: 1) Network connection: RJ45: 10/100 Base-T 2) Protocols: TCP/IP, DHCP, HTTP, FTP, SMTP, PPPoE, UDP, RTSP, SMS 3) DHCP: support 4) Dynamic DNS (DDNS): supports (/orite DDNS/IPCAM DDNS) 5) Alarm notification: nail & FTP or SMS 6) Speed dome camera control: YES 7) View through: IE, quicktime 10) Security: 3 layer password protection 11) Motion detection: yes 12) OSD for camera name / date / time 13) Auto touring setting for speed dome camera 14) Control speed dome camera PAN , TILT, ZOOM, motor move speed 15) 16 Camera position preset point 16) Frame rate setup 17) Bit rate setup 17) Bandwidth setup 19) Built-in web server allows camera to be accessed by standard Internet browser 20) 2 default HTTP ports supported. They can be changed to fit different network environment 21) Capture photos or record movie to your PC 22) Send SMS the detected images to preset mobile phone 23) E-Mail the detected images to preset e-mail 24) FTP the detected images to preset FTP Server 25) Embedded web server supported 26) Firmware upgrade: Yes/on line firmware update Interface: 1) TV-IN (BNC) 2) TV-OUT (BNC) 3) Built-in microphone 4) Audio-IN (RCA) 5) Power IN Jack 6) GPIO, input x 1 set , output x 1 set 7) RS-485 (Pan/Tilt/Zoom Control) 8) RS-485 protocol: Pelco-D 9) Internal microphone or external audio-in switch 10) Dimensions: 91 x 65 x 53mm 11) Weight: 310g
