polyester cord strapping from china manufacturer

Specifications

1. polyester cord strapping is referred to as "synthetic steel"
2. safer for use
3. cost effective

Features:

Composite Strapping is made from polyester filament yarns embedded in a polymer coating and is often referred to as "synthetic steel". Incorporating all the benefits of bonded and woven poly strapping, composite strapping offers additional advantages:

1. high abrasion resistance

2. the highest possible joint efficiency in the buckle

3. faster, safer and much more cost effective

4. no damage to painted surfaces

5. no corrosion & easy handling

6. low investment cost

7. a small, manageable system

8. retensionable

9. available width: from 13mm to 32mm

10. system breaking strength from 488 to 2300 daN

11. weather resistant

12. absorb larger aounts of impact energy compared to steel strap

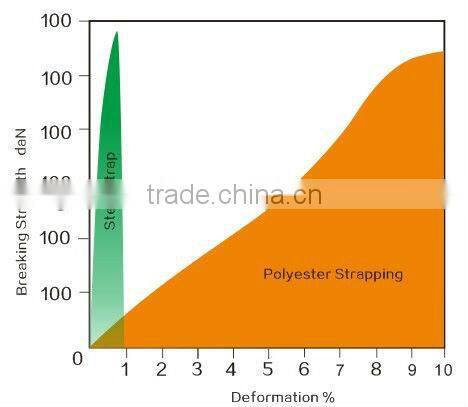

P.S.: left chart shows the advantage of our composite strap relative to steel strap. Shaded strap can absorb before breaking in their impact.

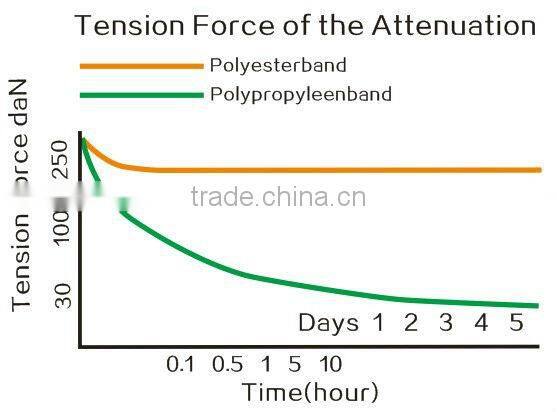

13. tension force won't attenuation obviously during transportation of goods.





Specifications and Sizes:



Item No.	Width(mm)	Broken load(daN)	Length per Roll (mtr)	Rolls per      Box	Rolls per     Pallet
YLCS13	13 mm	488	1100	2	90
YLCS16	16 mm	688	850	2	90
YLCS16/2	16 mm	688	600	2	90
YLCS19	19 mm	725	600	2	90
YLCS19/2	19 mm	770	500	2	90
YLCS25	25 mm	1300	500	2	90
YLCS32	32mm	2300	300	2	90



Transport Information:

For our Standard Packaging:



For YLCS13,YLCS19,YLCS19/2: Carton - 2 piece (346mm x 346mm x 400mm)

20ft FCL:          1170 pieces

40ft FCL:          2446 pieces

40ft hq FCL:     2872 pieces



For YLCS16: Carton - 2 piece (360mm x 360mm x 400mm)

20ft FCL:          1078 pieces

40ft FCL:          2254 pieces

40ft hq FCL:     2646 pieces



For YLCS16/2,YLCS25,YLCS32 : Carton - 2 piece (370mm x 370mm x 400mm)

20ft FCL:          1018 pieces

40ft FCL:          2128 pieces

40ft hq FCL:     2500 pieces



Or permit us to consolidate with other items or with other orders.

Please let us know your requirements...



How to use this polyester cord strapping?





Applications:
