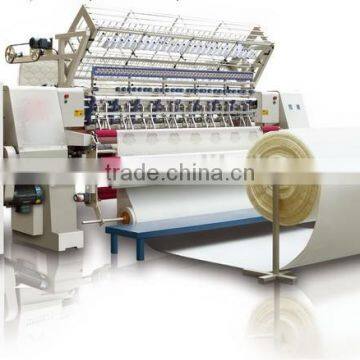

CIFM Best selling / HY-94-3A Gloves Lock Stitch Mutil-Needle Quilting Machine

Specifications

Computerized automatic needle-lifting speed adjustment
Multi-span independent pattern
High rigidity machine body and structure

CIFM Best selling / HY-94-3A Gloves Lock Stitch Mutil-Needle Quilting Machine





Features and Benefits



Purpose:It is widely used for quilting high-quality garments, quilt covers,vanity,gloves,sleeping bag, pajamas,bed spread,seat cover, plus material and household ornam

Note:When you order, please make sure the type of the bobbin, 10# or 7#.

Detail Information:

· Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.

· High rigidity machine body and structure can make the machine running faster and more stable.

· Adopting the new structure of press plate’s adjusting makes the machine much simple.

· Multi-span independent pattern (360°and 180° patterns are available)

· Advanced and practical up thread-break detection unit

· Computerized automatic needle-lifting speed adjustment

· New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting

·   Easy preparation of CAD drawing extremely precise

· Different patterns in each line can be quilted on 3.2 m fabric and patterns can strongly combine

· Able to quilt simple embroidery patterns

· Fault detecting and indication enabling fast fault correction and return operation

Parameter(Unit mm):

Parameter(Unit mm)	HY-64-3A	HY-94-3A	HY-128-3A
Dimension(L×W×H):	3350 1160 1750	4500 1160 1750	5350 1160 1800
Quantity of needle bar:	3	3	3
Quilting width:	1600	2450	3300
Space between needle rows:	76.2,152.4	76.2,152.4	76.2,152.4
Space between needles:	25.4	25.4	25.4
X-axis movement displacement:	203.2	305	305
Thickness of quilting:	≤25	≤25	≤25
Stitch length:	2~5	2~5	2~5
Speed of production(m/h)	20-100	20-100	20-90
Model of needle:	16#,19#	16#,19#	16#,19#
Speed of main shaft(RPM):	550~600	550~600	450~550
Total power required:	3.5KW	3.5KW	4.5KW
Voltage:	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ
Gross weight:	2500kg	3200kg	4200kg
