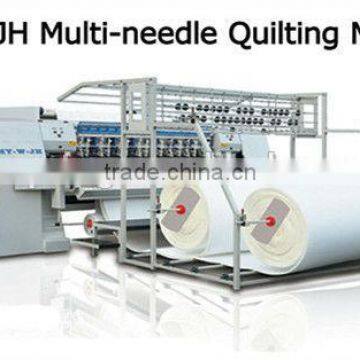

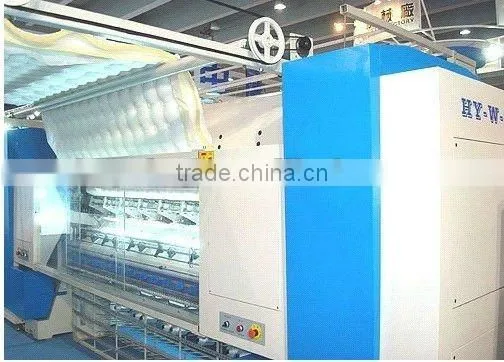

High Quality Multi-needle Mattress Quilting Machine for Mattress Cover
- Guangzhou
- T/T
You May Like
-
Mattress Spring Machine High Speed BC-80 Bonnel Spring Coiling Machine for Mattress
-
TE-103HL High Efficiency Mattress Tape Edge Machine
-
Home Textile 300U Chain Stitch Mattress Tape Edge Sewing Machine
-
Good Quality Bonnell Spring Assembling Machine Mattress Machines
-
Chinese Cheap Mattress Spring Coiling Machine With Good Quality
-
Pocket Spring Assembling Mattress Machine With Nordson Gluing Box
Product Details
| Place of Origin | Guangdong, China | Brand Name | Everbright | |
| Model Number | HY-W-JH | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Multi-needle Mattress Quilting Machine for Mattress Cover
New Features :
- CE certificated
-Thread brake detector and emergency safety device
-Automatic needle-lifting and CNC speed adjustment
-Track and jump and independent patterns
( 360ºand 180º patterns are available)
-Operated using high quality sealed bearing that do not need lubriacaton
-Adjustable presser foot lifting machanism enables to quilt a broad range of material thickness.
-CAD pattern drawing, pattern system allows you to creat your own designs.
-Production management function, easy for checking the prduction cost.
Technical Data:
| Dimension(L×W×H) | 4800×1600×2000mm |
| Max. Material width | 2450mm |
| Distance between needle bars | 50.8,76.2,127mm/5" or 76.2,76.2,152.4mm/6" |
| between two needles | 25.4mm /1" |
| Max.lateral pass | 410mm/16" |
| Thickness of quilting | ≤80mm (for all patterns) |
| Length of step | 3-8mm |
| Speed of production | 60~230 (Meter/hour) |
| Model of needle | 24/180, 23/160 ,22/140, 21/130 |
| Sewing speed | Max.980 stitches/min |
| Power | 7KW |
| Voltage | 380V/50HZ , 220V/60HZ |
| Gross weight | 4500kg |
This machine use chain stitch quilting construction and computerized system for avoiding the troubles to frequently replace the shuttle during working. The quilting fabrics have even stitch and firm construction. The quilting patterns are easy o change. There are 160 patterns stored in computer and 1000 windows available for you, you can change the patterns or edit your desired patterns. All the above features are more excellent than the common model of chain stitch quilting machine.
We are the mattress machine manufacturer. And one stop for mattress and components manufacture solution! We had been worked in this industry for more than15 years.
Besides, Tape edge machine, Bonnell spring machine, Panel cutter machine, Sewing machine, Flanging machine, Pocket spring machine etc all whole set for mattress production we can supply for you.
Welcome to send inquiry to us, we will handle it at the first time. Thank you!
