Computerized Multi-needle Mattress Quilting Machine
- Guangzhou
- T/T
You May Like
-
Border Wire Straightening Machine for Mattress Spring Making ZD-1
-
Good Quality Bonnel Assembly Mattress Making Spring Machine BA-200
-
Bonnel Spring Coiling Machine for Making Mattress BC-80
-
Easy Operation Border Wire Straightening Machine
-
High Precision Bonnel Assembly Mattress Making Spring Machine
-
Good Performance Bonnel Spring Coiling Machine
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | Everbright | Model Number | HY-94-3JLD | |
| Max Sewing Speed | 650-930RPM | Max Sewing Thickness | 2450MM | |
| Number of Head | Single Head | Moving Style | Other | |
| Voltage | 380V 220V | Power(W) | 5KW | |
| Dimension(L*W*H) | 4495*1200*2015mm | Weight | 4000KG | |
| Certification | CE | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

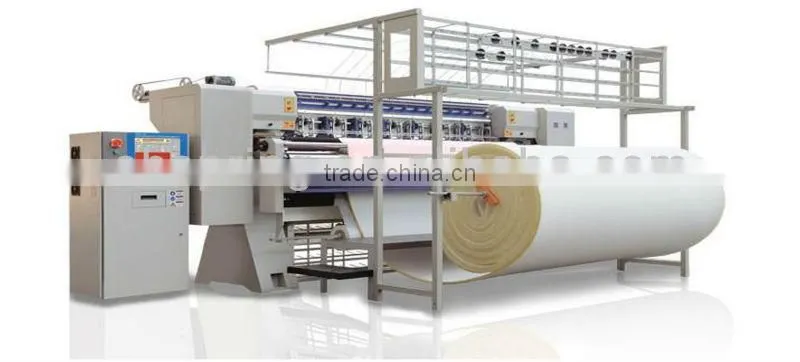

Computerized Multi-needle Mattress Quilting Machine
Model:HY-94-3JLD
Technical characteristics:
- CE certificate
- No need to adjust the press plate’s position when the thickness of quilting materila varies
- Outstanding features such as high rigidity, high running speed, low vibration and noise
- CNC precision control system
- Easy preparation of CAD drawings extremely precise
- Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
- Fault detection function for ease of determing the running state of the machine at any given time
Technical Data:
| Dimension(L×W×H) | 4495*1200*2015mm |
| Max. Material width | 2450mm |
| Distance between needle rows | 50.8,76.2,127mm/5" or 76.2,76.2,152.4mm/6" |
| between two needles | 25.4mm /1" |
| Max.lateral pass | 410mm/16" |
| Thickness of quilting | ≤50mm (for all patterns) |
| Length of step | 3-6mm |
| Speed of production | 45~180 (Meter/hour) |
| Model of needle | 24/180, 23/160 ,22/140, 21/130 |
| Sewing speed | Max.980 stitches/min |
| Power | 5KW |
| Voltage | 380V/50HZ , 220V/60HZ |
| Gross weight | 4000kg |
Company Introduction:
Everbright Bedding is a leading mattress machine and components manufactory in China, have been supporting to mattress industry for more than 15 years, and can supply one stop for mattress manufacturing, from machines to materials.
We are One Stop for mattress and components manufacture solution!
1.We have all kinds of mattress making machine, that can help you to start the mattress making. These machines can fit in a production line. They work high efficiently with high quality.
2.We supply mattress components,such as fabric, edge tape, spring units, felt pad, air vent, corner guard etc. When you buy the machine, we can help you to fit in the container that save the shipping cost.
3.Our price is the most competitive price.
We have many models quilting machine for you to choose, pls contact us, tell us your requirement, we will recommend a suitable one for you. Thank you for your inquiry in advance.
