HIGH EFFICIENCY HY-QG-3 Fabric Strip Cutter Machine

FOB Price

US$ 17,000 - 18,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	EVERBRIGHT	Model Number	HY-QG-3
Voltage	380V/50HZ , 220V/60HZ	Power(W)	2KW
Dimension(LWH)	3750x1330x2365mm	Weight	1500 KG
Certification	CE	Warranty	1-2 Years
After-sales Service Provided	Engineers available to service machinery overseas

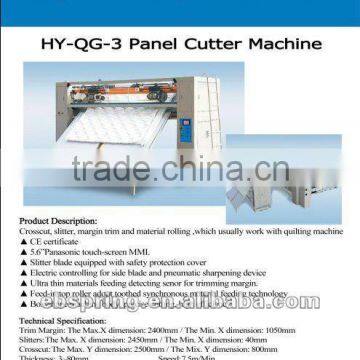

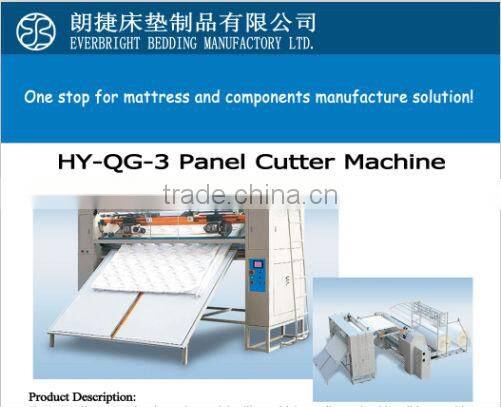

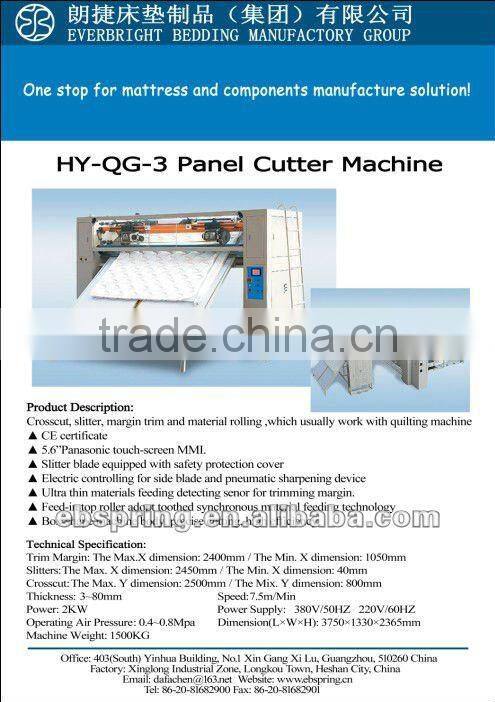

Pannel Cutter:

Technical Prameter:

Trim Margin	The Max.X dimension: 2400mm The Min. X dimension: 1050mm
Slitters	The Max. X dimension: 2450mm The Min. X dimension: 40mm
Crosscut	The Max. Y dimension: 2500mm The Mix. Y dimension: 800mm
Thickness	3~80mm
Speed	7.5m/Min
Power	2KW
Power Supply	380V/50HZ 220V/60HZ
Operating Air Pressure	0.4~0.8Mpa
Dimension(LxWxH)	3750x1330x2365mm
Machine Weight	1500KG

Product Description:

Crosscut, slitter, margin trim and material rolling ,which usually work with quilting machine

1.CE certificate

2.5.6”Panasonic touch-screen MMI.

3. Slitter blade equipped with safety protection cover

4. Electric controlling for side blade and pneumatic sharpening device

5. Ultra thin materials feeding detecting senor for trimming margin.

6. Feed-in top roller adopt toothed synchronous material feeding technology

7.Box-shape machine body, precise cutting, high efficiency.

For more information, please feel free to contact with us.

We will give you the best service.

CNC industrial quilting machine for mattresses, Automatic Quilting

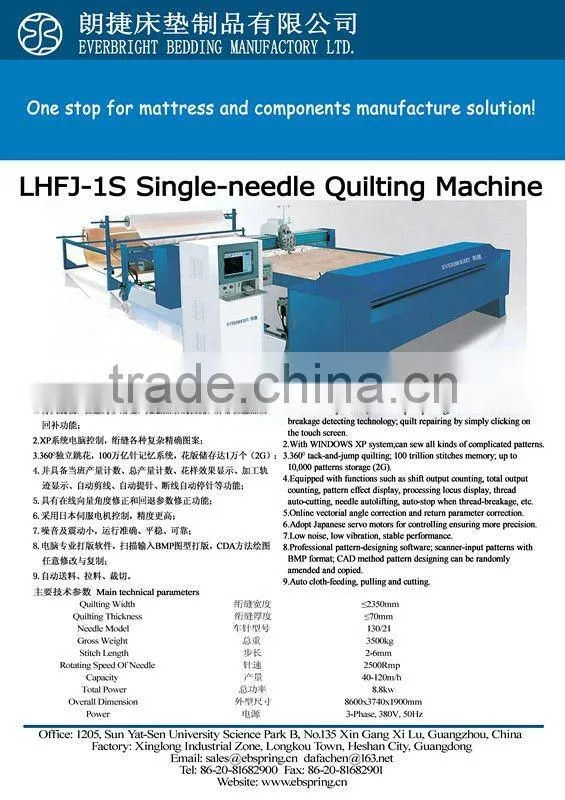

Single Needle Quilting Machine
