Computerized Multi Needle Industrial Mattress Panel Quilting Machines
- Guangzhou Shenzhen HK
- T/T
You May Like
-
Mattress Compression Package Integrated Machine / Wrapping Machine for Bedding Factories
-
Automatic Mattress Compress Roll Packing / Wrapping Machine
-
China Supplier Foam Block Delivery Foam-roll Compressing Machine
-
Block Foam Cutter Machine for Cutting Foam
-
High Speed CNC Digital Pocket Spring Coiling Machine
-
China Automatic Mattress Compress Roll Packing Wrapping Machine
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | EVERBRIGHT | Model Number | HY-W-JH | |
| Max Sewing Speed | 230m/hour | Max Sewing Thickness | 80mm | |
| Number of Head | Single Head | Moving Style | Other, Head and frame moved | |
| Voltage | 7KW | Power(W) | 380V/50HZ 220V/60HZ | |
| Dimension(L*W*H) | 4800x1600x2000mm | Weight | 4500KG | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

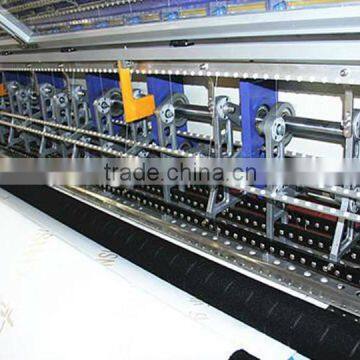

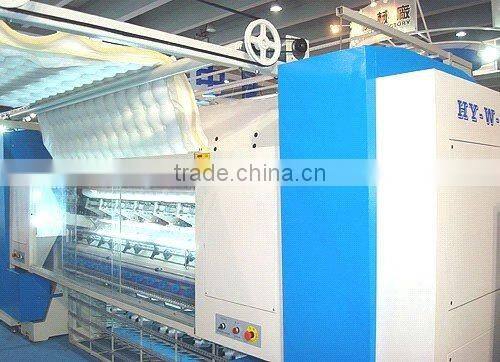

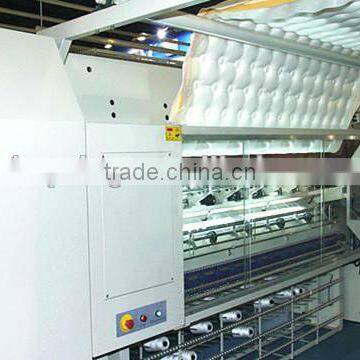

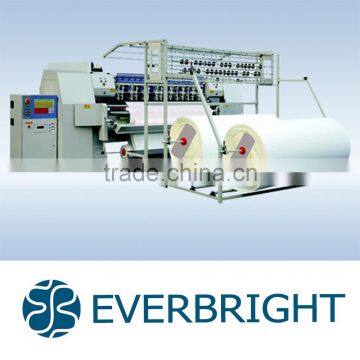

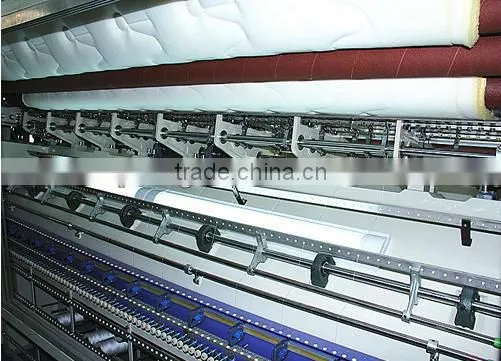

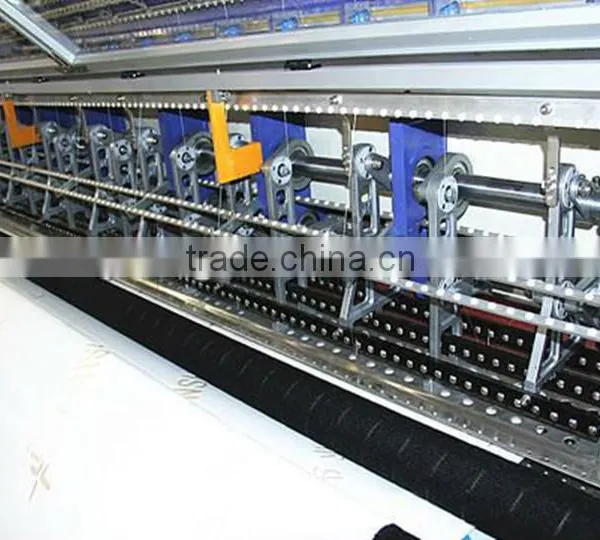

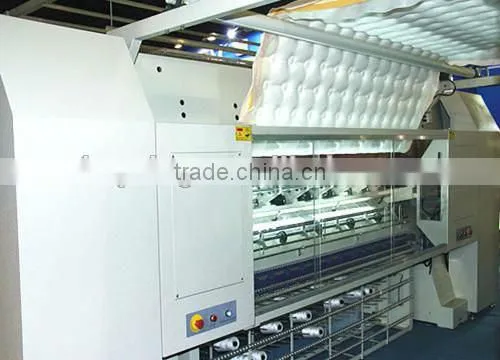

Computerized multi needle industrial mattress panel quilting machines

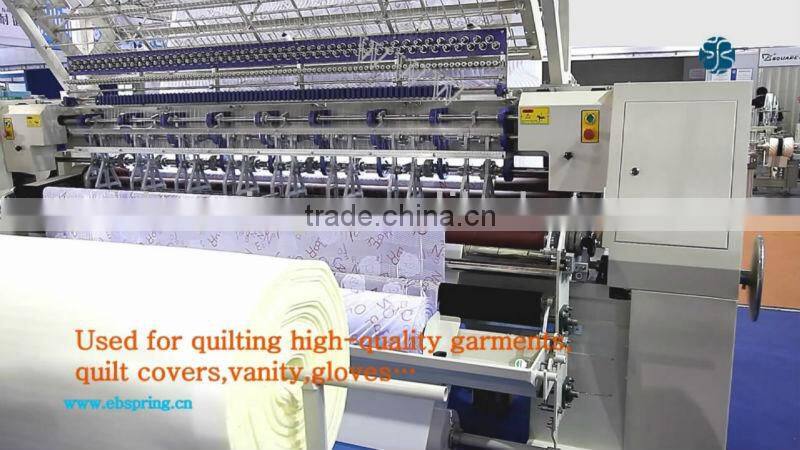

1. Purpose : It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.

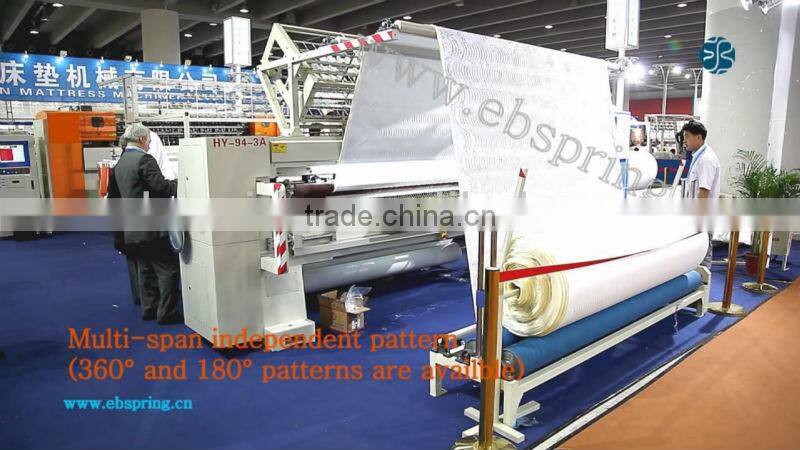

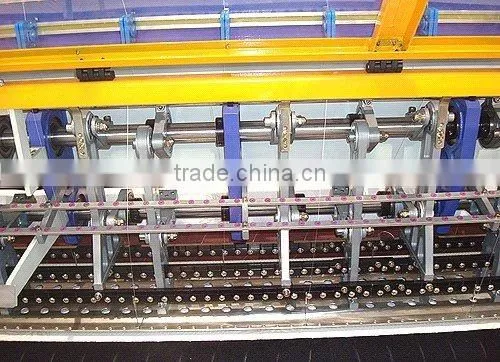

2. Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material Multi-span and independent patterns(360°and 180°patterns are available)
3. Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment CE Certificate.
4. No need to adjust the press plate' s position when the thickness of quilting material varies.
5. CNC precision control system
6. Easy preparation of CAD drawings extremely precise
7. Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
8. Fault detection function for ease of determining the running state of the machine at any given time
Technical Date(mm):
Width of quilting | 2450 |
Space between needle rows | 50.8,76.2,127,76.2,76.2,152.4 |
Space between needles | 25.4 |
Thickness of quilting | 80 |
Speed of production | 60-230 |
Model of needle | 24/180 23/160 22/140 21/130 |
Speed of main shaft | 200-980(RPM) |
Power supply | 380V/50HZ 220V/60HZ |
Dimension | 4800x1600x2000 |
X-axis movement distance | 410 |
Length of step | 3-8 |
Power | 7KW |
Gross weight | 4500Kg
|

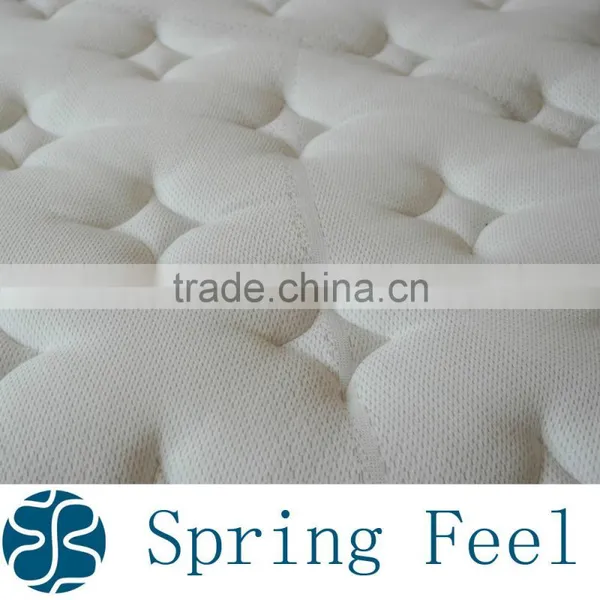

It is widely used for quilting high-quality mattresses , quilt covers , and household ornaments. Different patterns are available
Belowed are more quilting machines for your reference

EVERBRIGHT BEDDING MANUFACTORY LTD has become one of the leading manufacturers of mattress and components in China. Offer one stop for mattress and components manufacture solution more than 15 years!
EVERBRIGHT BEDDING MANUFACTORY LTD Offer OEM/ODM service for customers all over the world, has been developing rapidly, Leading by a dynamic team with innovation and passion, a private brand Everbright was launched.
2000
EVERBRIGHT BEDDING MANUFACTORY LTD was founded.
2007
Everbright was registered as a trademark.
2008--2014
We grow up step by step. We take part in Fairs all over the world.
2015
Looking for agency all over the world! If you are the one......
Pre-sale service
- Each inquiry is important for us, inquiry should be reply within 60 minutes in working time, 24 hours out of working time due to time zone
After-sale service
- Quality issue: EVERBRIGHT takes good quality as the most important in production, as a reliable manufacturer based in Heshan, China, With strict quality control and hard working team, all goods was checked before ship out, in case of any issue is found, please do contact us by email or by phone, we will resolve the problem for you, no excuse.
Refund or change goods policy:
- Contact us, Email or phone, skype ect
- Send us issue product photos
- Confirmed, send back to our factory
- Refund or replacement
Our One-step Service:
- We provide one-stop shopping service, which will certainly save both your time and cost.
- Machines, Non-woven fabric, foam, fabric, felt pad, inner spring unit etc, all the accessories for mattress are available.
1. Can I get a sample before order?
Re: Yes. We can send the sample. But shipping charge will charge by customers.
2. How do I get a detailed quotation?
Re: Please let us know the quantity & details you want.
3. How do I know your quality?
Re: Sample can offer before order.
4. Are you trading or factory/manufacturer?
Re: Everbright is a 100% manufacturer based in Heshan, office based in Guangzhou, welcome to visit.
5. How do I trust you and your company?
Re: Everbright is an authorised manufacturer with official factory and office under China laws, also applicable for CE and so on.
6. How do I place an order
Re: Contact us for the detailed product info, get quotation, check sample, visit our factory, quality and price, service approval, then place order, 30% deposit before production, 70% balance before shipment.
