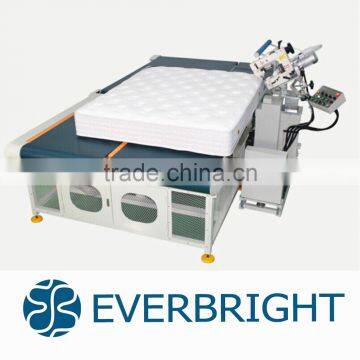

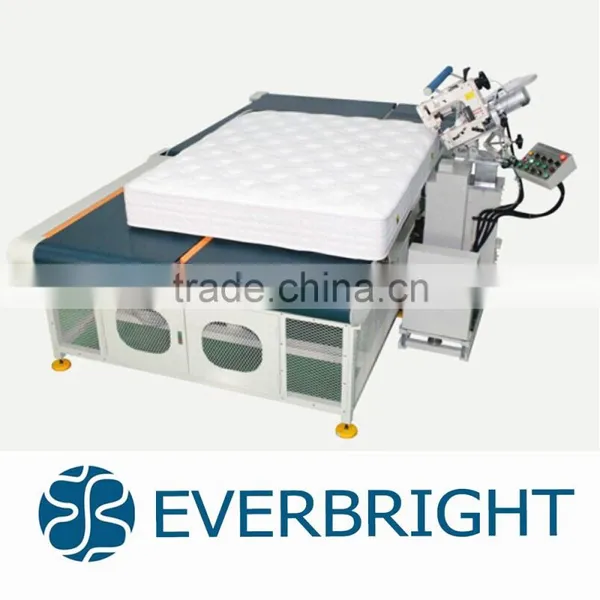

Good Quality V-ATE-30 Mattress Auto Tape Edge Machine
Product Information:

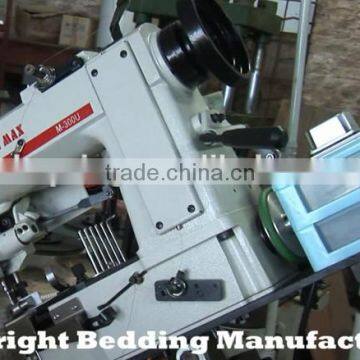

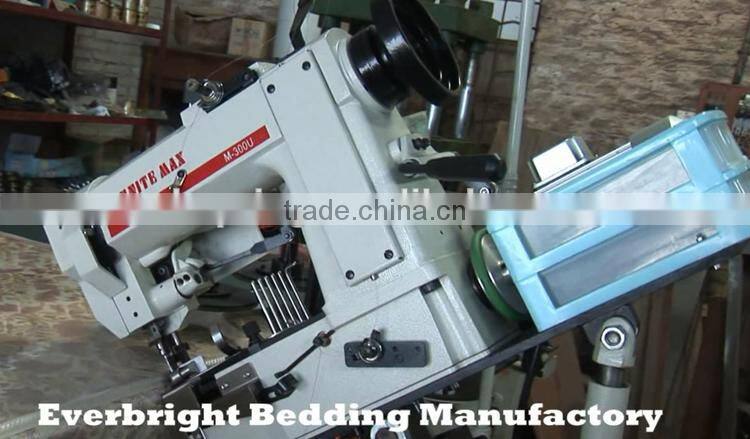

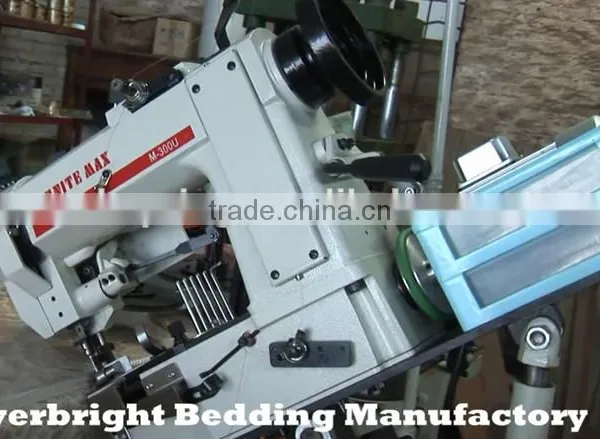

This machine is mainly used for mattress tape sewing. The main advance is sewing head need not moving, but the lifting machine can turn angles to sew mattress of different thickness. It is equipped with 300U chain sewing head and microcomputer controlling system imported from Japan. When producing, the conveyer can move forward. Backward, turning 90 degrees or 180 degrees to sew the whole mattress automatically.
Technical specification:
Work table size:4000*2000*800mm(adjustable)
Mattress thickness:150mm-600mm
Sewing speed: ≤9m/min(adjustable)
Angle of sewing head:35 degress to 55 degree
Lifting range of sewing head:≤300mm(adjusted by motor)
Power Supply: 3 phrase 380V
Power of sewing motor: 0.37KW
Power of lifting motor:0.37kw
Power of converyer:0.75kw x 2
Power of the push motor: 0.75kw
Air pressure:0.5-0.8mpa
Weight: 1350KG
Overall Dimension:4000x2600x1400mm

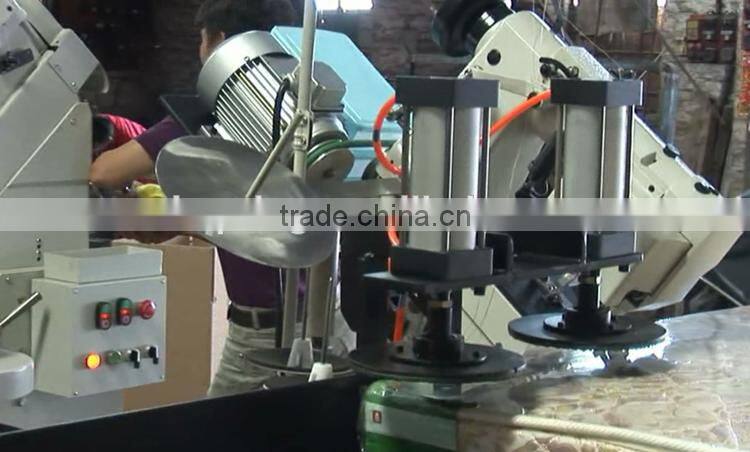

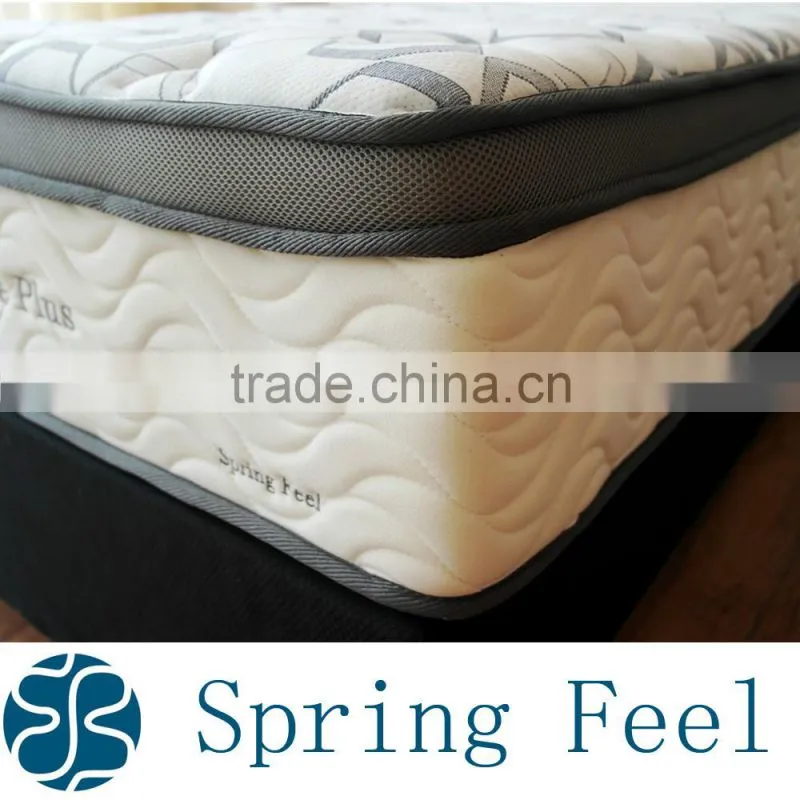

Working effect

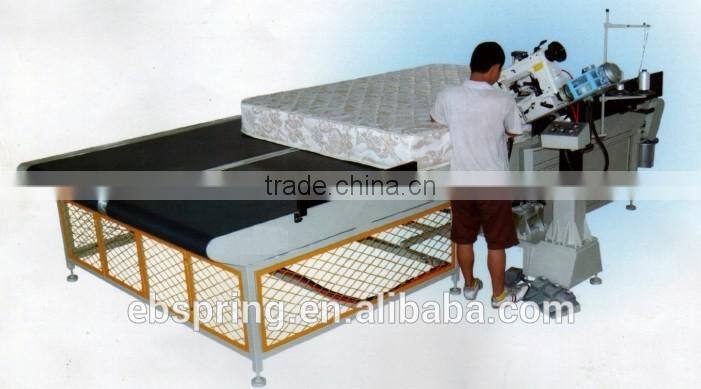

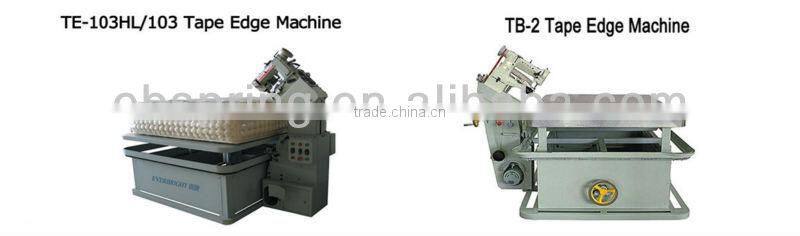

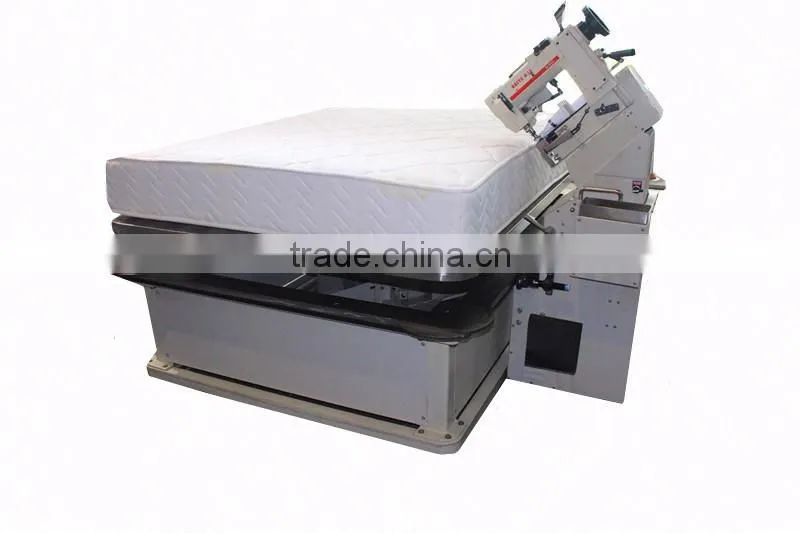

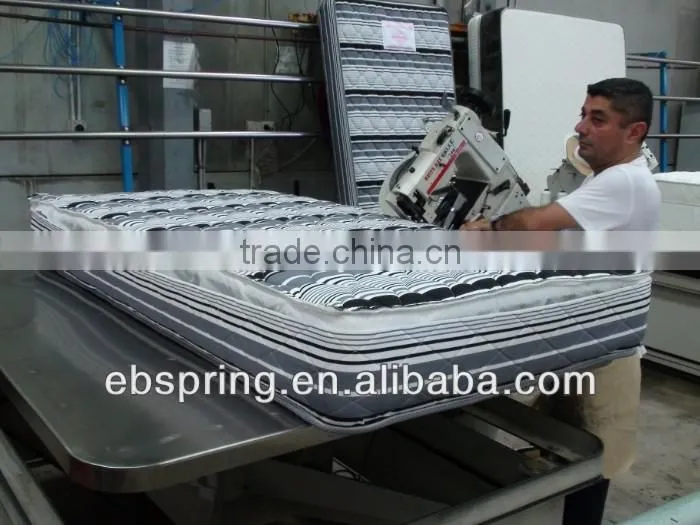

More Mattress Tape Edge Machines machine for your reference:
EVERBRIGHT BEDDING MANUFACTORY LTD has become one of the leading manufacturers of mattress and mattress machine in China. Offer one stop for mattress and components manufacture solution more than 15 years!
EVERBRIGHT BEDDING MANUFACTORY LTD offer OEM/ODM service for customers all over the world, has been developing rapidly, Leading by a dynamic team with innovation and passion, a private brand Everbright was launched.
2000
EVERBRIGHT BEDDING MANUFACTORY LTD was founded.
2007
Everbright was registered as a trademark.
2008--2014
We grow up step by step. We take part in Fairs all over the world.
2015
Looking for agency all over the world! If you are the one......
Pre-sale service
Each inquiry is important for us, inquiry should be reply within 60 minutes in working time, 24 hours out of working time due to time zone
After-sale service
Quality issue: EVERBRIGHT takes good quality as the most important in production, as a reliable manufacturer based in Heshan, China, With strict quality control and hard working team, all goods was checked before ship out, in case of any issue is found, please do contact us by email or by phone, we will resolve the problem for you, no excuse.
Refund or change goods policy:
- Contact us, Email or phone, skype ect
- Send us issue product photos
- Confirmed, send back to our factory
- Refund or replacement
Our One-step Service:
A. We provide one-stop shopping service, which will certainly save both your time and cost.
B. Machines, Non-woven fabric, foam, fabric, felt pad, inner spring unit etc, all the
accessories for mattress are available.
