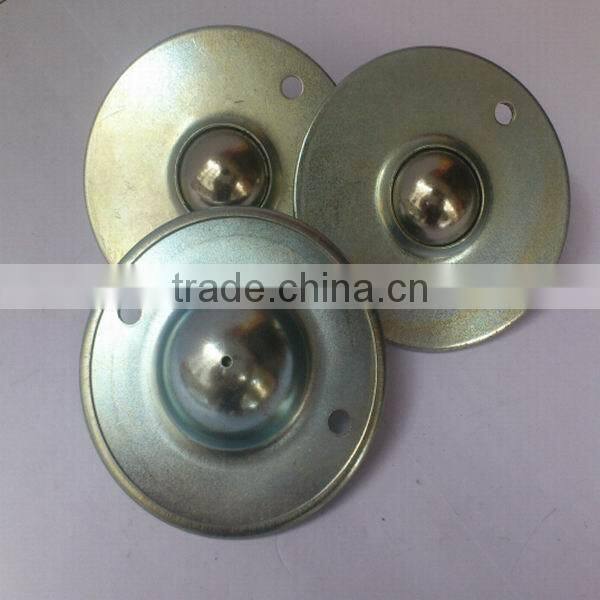

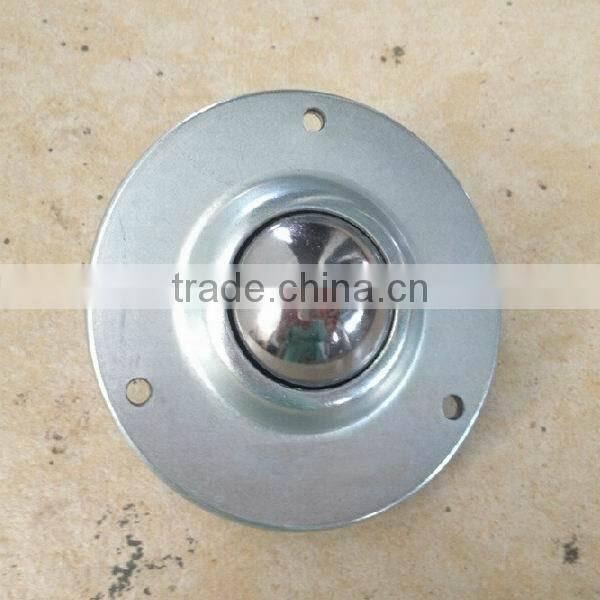

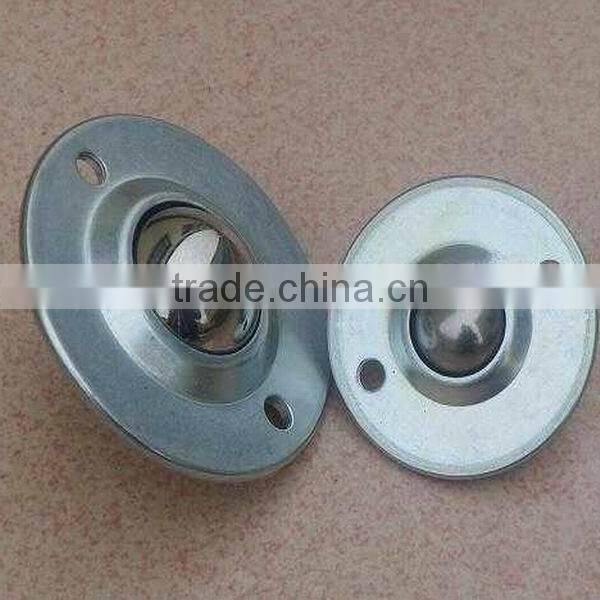

CY-30B light-duty unverisal ball transfer unit
Introduction
Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.
Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.
Application
They are used for heavy duty loads, and to build a multi-direction conveyor, moving goods, feeding machines and many more.
Contact
Attn: Emily
E-mail: emily at
Skype: Emily Cosmic
Datasheet
| Model No. | Ball size | Loading capacity Maximum/Breaking |
| CY-15A | 15MM | 10KG/15KG |
| CY-18A | 18MM | 20KG/25KG |
| CY-25A | 25.4MM | 25KG/30KG |
| CY-30A | 30MM | 40KG/50KG |
| CY-38A | 38MM | 60KG/80KG |
| CY-16B | 16MM | 10KG/15KG |
| CY-25B | 25MM | 25KG/30KG |
| CY-30B | 30MM | 35KG/40KG |
| CY-38B | 38MM | 45KG/55KG |
| CY-8H | 8MM | 3KG/5KG |
| CY-15H | 15MM | 15KG/25KG |
| CY-22H | 22MM | 40KG/55KG |
| CY-30H | 30MM | 70KG/85KG |
Welcome to enquire for more details!
