(5-115X Series)High Precison Cross-shaft Universal Joint With 4 Welded Plate Bearings

(5-115X Series)High Precison Cross-shaft Universal Joint With 4 Welded Plate Bearings thumbnail-1
(5-115X Series)High Precison Cross-shaft Universal Joint With 4 Welded Plate Bearings photo-1
US$ 5 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Structure:
Single
Material:
Alloy Steel
Operating Angle:
Max Working Angle 45 Degree
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Single
Material Alloy Steel
Operating Angle Max Working Angle 45 Degree
Place of Origin Zhejiang, China
Model Number 5-115X Series
Brand Name NTL

(5-115X Series)High Precison Cross-shaft Universal Joint with 4 Welded Plate Bearings



1.Normally we are using 20Cr or 20CrMnTi gear steel, as Chinese standarded alloy steel for the cross spider of our universal joint cross assembly and the glove bearing is also based on such material. Also we can make the u-joint as you requested material when the quantity is acceptable for production lot. For the needle roller, the material will be GCr15 bearing steel. High-quality materials are used for our accessarries such snap ring, NBR seal rings, straight or jointed hydraulic grease nipples, and general purpose lithium base grease for automobile.



2. Application:
     A power transmission universal joint cross assembly is widely used in automobile types including: middile and high end salon, off-road vehicles, most of the trucks, agriculture machinery, mine and heavy-duty machine, specifical purpose vehicles



3.  Feature:
     A universal joint is fitted between the driveshaft and the differential axle to transmit power through the axis of rotation. Perfectly smooth rotation is required, in order to handle the constantly changing angles of the rear axle caused by the vertical movement of uneven surfaces transmitted through the suspension system. In other words, a universal joint efficiently transmits power through both fixed and fluctuating angles. Moreover, since the universal joint is lightweight and compact with superior durability, it has proved to be a safe and positive product for power transfer in Automotive and Industrial applications. In recent years, we have been working to develop and produce the press type bearing which is aimed at improvement in intensity and durability and reduces cost further.



4. Structure:
     A universal joint has four needle roller bearings that provide the strength and life which is most important and both the axes of the spider are inserted into two yokes. In the bearing, a seal is located to prevent dust, water, etc.from ingress and to prevent grease egress. For heavy duty vehicles with high torque transmission, such as large size vehicles and various industrial machine vehicles, a wing type (3 kinds: block, wing, delta) is used. Bolt-fastening mechanism and key-way are incorporated to the bearing and a precise circle is on its back. By receiving the torque through the key-way, even if a bolt is loosely tightened, the shearing stress does not apply to the bolt.

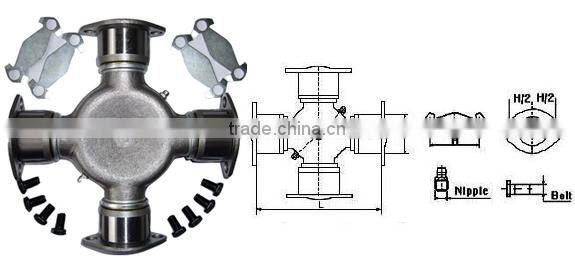

 (5-115X Series)High Precison Cross-shaft Universal Joint with 4 Welded Plate Bearings







Please make sure your products needed are listed in our verified table below.

Universal Joint with 4 Welded Plate Bearings

FIG Part No. D mm O mm L mm Spicer Precision GMB GKN Alloy Lempco
E 5-115X 39.68 116 5-115X 332 G5-115X HS308 1757
E 5-124X 58.9 167.5 5-124X 335 G5-124X 1804 U-107
E 5-279X 47.6 134.9 5-279X 333 G5-279X HS336 1806/7 U-105
E 5-280X 49.2 154.9 5-280X 334 G5-280X HS337 1802/3 U-106
E 5-281X 49.2 191.9 5-281X 381 G5-281X HS334 1810
E 5-308X 55.5 206 5-308X 388 HS348
E 5-339X 77.8 255.2
E 5-407X 49.2 178 5-407X 376 HS338
E 5-54X 71.5 223 5-54X
E GU4000 47.6 134.8 HS316
E GU5000 49.2 154.8 HS337
E GUIS54 36 97 9-37300-055 136101 UJ311
E GUIS58 36 97 9-37300-112 136101A UJ312
E U400 47.6 134.8 5-279X 333 UJ400
E U429 47.6 134.8 5-438X/ 475 UJ429
4101731
E U442 49.2 154.7 5-515X 476 UJ442
E U500 49.2 154.6 5-280X UJ500
E U640 36.5 107.9 5-4143X 969 UJ640
E U957 49.2 177.8 5-504X UJ957
E U958 49.2 191.7 5-281X UJ958
E U958 49.2 191.7 5-454X UJ958
E U958 49.2 191.7 6885514 UJ958






(5-115X Series)High Precison Cross-shaft Universal Joint with 4 Welded Plate Bearings
