Home > Industrial Equipment & Components > Power Transmission Parts > Shaft Coupling > Aluminum Alloy Flexible Shaft Coupling
US$ 10 - 35
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Structure:
Jaw / Spider
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15*40 mm Universal Joint Cross Bearing ST1540US$ 0.98 - 0.98MOQ: 100 Pieces -
High Quality Auto Parts Cross Joint 18x47mm for Universal JointUS$ 1.16 - 1.5MOQ: 20 Pieces
-
High Quality Auto Parts Cross Joint 27*70mm for Universal JointUS$ 2.38 - 2.75MOQ: 20 Pieces
-
Propshaft Unversal Joint Kit U381GUS$ 3.2 - 5.5MOQ: 100 Pieces
-
Heavy Duty SP-22 Ball Transfer Unit for Logistics Transportation, Automation EquipmentUS$ 0.98 - 1MOQ: 100 Pieces
Structure
Jaw / Spider
Flexible or Rigid
Flexible
Standard or Nonstandard
Standard
Material
Aluminium
Brand Name
ntl
Place of Origin
Jiangsu, China
Model Number
Customized

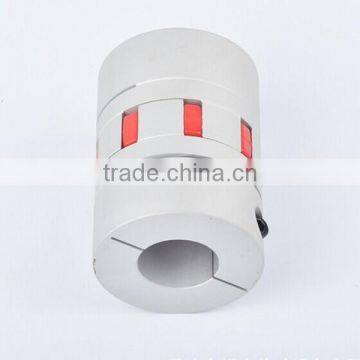

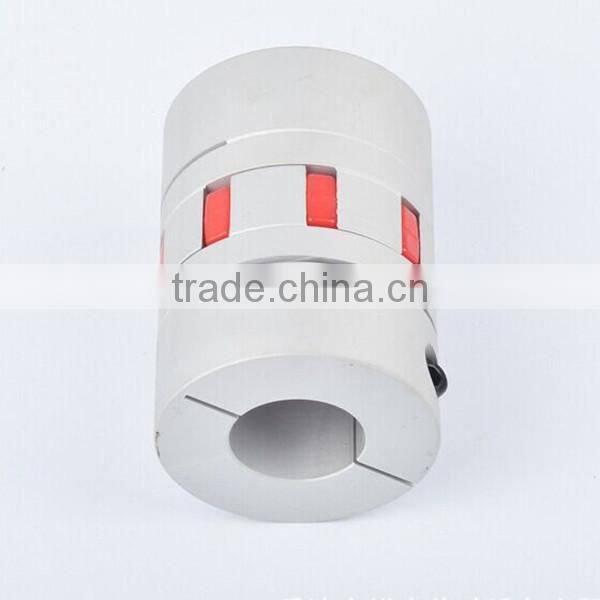

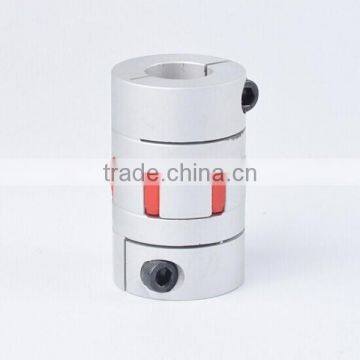

Aluminum Alloy Flexible Shaft Coupling
Flexible couplings are offered in the industrys largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.
| Applications: |
| 1. Widely used in various mechanical and hydraulic fields |
| 2. Small dimension, low weight, high transmitted torque |
| 3. Elastomers made of polyurethane with shore hardness between 80-98 |
| 4. Compensating the axial relative drift, buffer and vibration reduction |
| 7. Material: cast iron, steel and aluminum alloy |
| 8. Finishing: blacken, phosphate-coat, and oxidation. |
Other Coupling Models
Model | Inner bore | D (mm) | L (mm) | Nominal Torque (N.m) | The Max of Torque (N.m) | |
dmin | dmax | |||||
JM2-25 | 4 | 12 | 25 | 34 | 5.0 | 10.0 |
JM2-30 | 6 | 16 | 30 | 35 | 7.4 | 14.8 |
JM2-40 | 10 | 24 | 40 | 66 | 9.5 | 19.0 |
JM2-55 | 12 | 28 | 55 | 78 | 34 | 68 |
JM2-65 | 14 | 38 | 65 | 90 | 95 | 190 |
JM2-80 | 24 | 45 | 80 | 114 | 135 | 270 |
JM2-95 | 30 | 55 | 95 | 126 | 230 | 460 |
JM2-105 | 35 | 60 | 105 | 140 | 380 | 760 |
Model | Allowable speed (rpm) | Radial Misalignment(m.m) | Angular Misalignment(°) | Axle Misalignment(mm) | ||
JM2-25 | 17000 | 0.02 | 1.0 | +0.60 | ||
JM2-30 | 12000 | 0.02 | 1.0 | +0.60 | ||
JM2-40 | 10000 | 0.02 | 1.0 | +0.80 | ||
JM2-55 | 8000 | 0.02 | 1.0 | +0.80 | ||
JM2-65 | 6000 | 0.02 | 1.0 | +0.80 | ||
JM2-80 | 4600 | 0.02 | 1.0 | +1.00 | ||
JM2-95 | 3800 | 0.02 | 1.0 | +1.00 | ||
JM2-105 | 3400 | 0.02 | 1.0 | |||
