60x90x13 mm Crossed Roller Ring Bearing RB6013

60x90x13 mm Crossed Roller Ring Bearing RB6013 thumbnail-1
60x90x13 mm Crossed Roller Ring Bearing RB6013 photo-1
US$ 50 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
60,
Outside Diameter:
90,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 60,
Outside Diameter 90,
Model Number RB6013
Number of Row Single Row
Place of Origin Henan, China

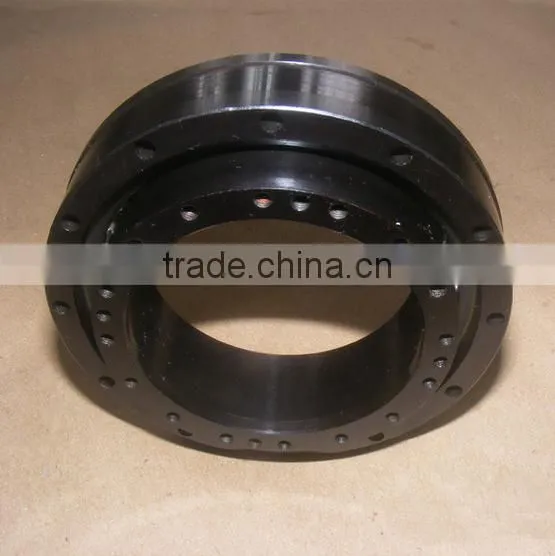

60x90x13 mm Crossed Roller Ring Bearing RB6013





Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.

We produce cross roller bearing SX011814 to SX0118/500. Customer's special design or other bearing codes are accepted.









Application

It can be used for construction equiment including rotary transporter, welding machine small/medium sized crane and excavators.



Model
 Main dimensions Basic load rating
(Radial)
Inner diameter Outer diameter Width Dynamic rating Static rating
d D B B1 C C0
mm mm mm kN kN
RB 2008 20 36 8 3.23 3.1
RB 2508 25 41 8 3.63 3.83
RB 3010 30 55 10 7.35 8.36
RB 3510 35 60 10 7.64 9.12
RB 4010 40 65 10 8.33 10.6
RB 4510 45 70 10 8.62 11.3
RB 5013 50 80 13 16.7 20.9
RB 6013 60 90 13 18 24.3
RB 7013 70 100 13 19.4 27.7
RB 8016 80 120 16 30.1 42.1
RB 9016 90 130 16 31.4 45.3
RB 10016 100 140 16 31.7 48.6
RB 10020 100 150 20 33.1 50.9
RB 11012 110 135 12 12.5 24.1
RB 11015 110 145 15 23.7 41.5
RB 11020 110 160 20 34 54
RB 12016 120 150 16 24.2 43.2
RB 12025 120 180 25 66.9 100
RB 13015 130 160 15 25 46.7
RB 13025 130 190 25 69.5 107
RB 14016 140 175 16 25.9 50.1
RB 14025 140 200 25 74.8 121
RB 15013 150 180 13 27 53.5
RB 15025 150 210 25 76.8 128
RB 15030 150 230 30 100 156
RB 16025 160 220 25 81.7 135
RB 17020 170 220 20 29 62.1
RB 18025 180 240 25 84 143
RB 19025 190 240 25 41.7 82.9
RB 20025 200 260 25 84.2 157
RB 20030 200 280 30 114 200
RB 20035 200 295 35 151 252
RB 22025 220 280 25 92.3 171
RB 24025 240 300 25 68.3 145
RB 25025 250 310 25 69.3 150
RB 25030 250 330 30 126 244
RB 25040 250 355 40 195 348
RB 30025 300 360 25 76.3 178
RB 30035 300 395 35 183 367
RB 30040 300 405 40 212 409




60x90x13 mm Crossed Roller Ring Bearing RB6013



60x90x13 mm Crossed Roller Ring Bearing RB6013



60x90x13 mm Crossed Roller Ring Bearing RB6013



60x90x13 mm Crossed Roller Ring Bearing RB6013



If you need,just feel free to contact with us.
