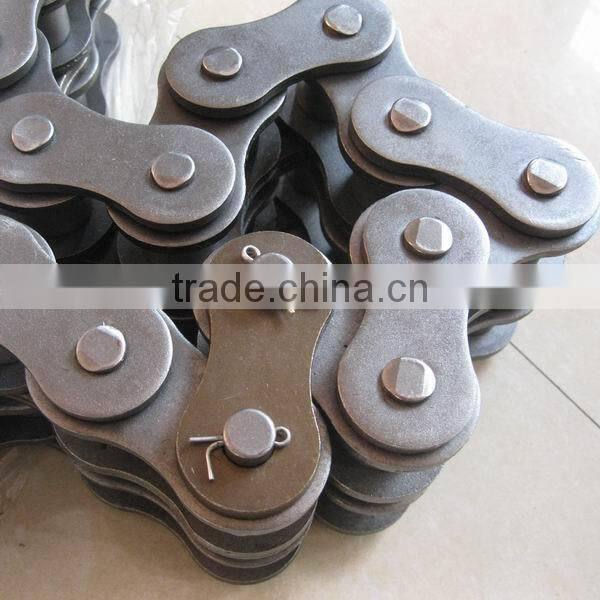

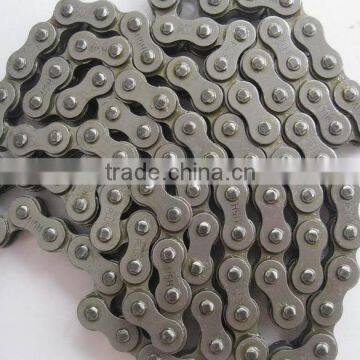

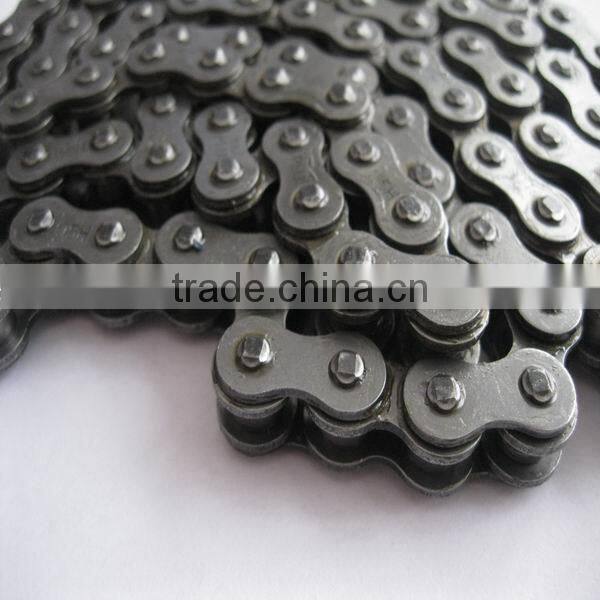

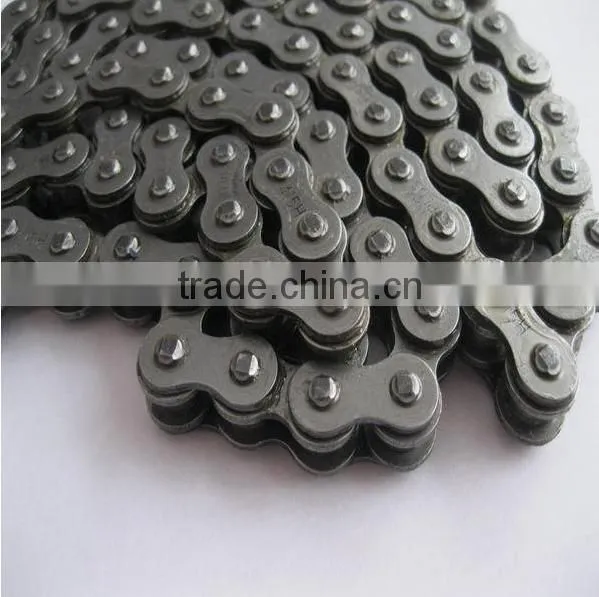

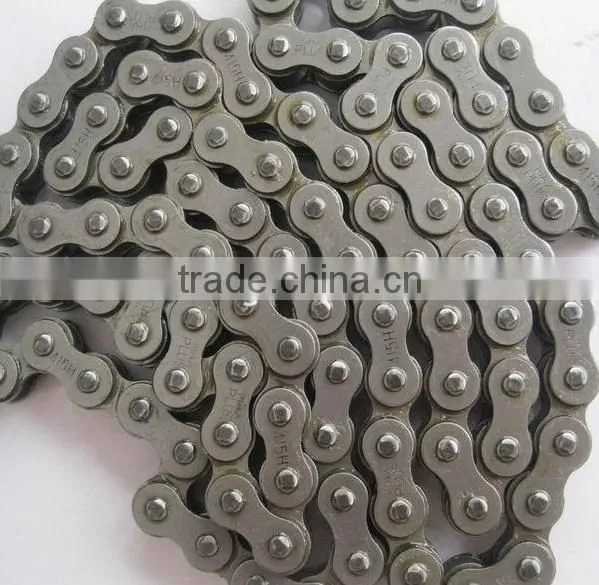

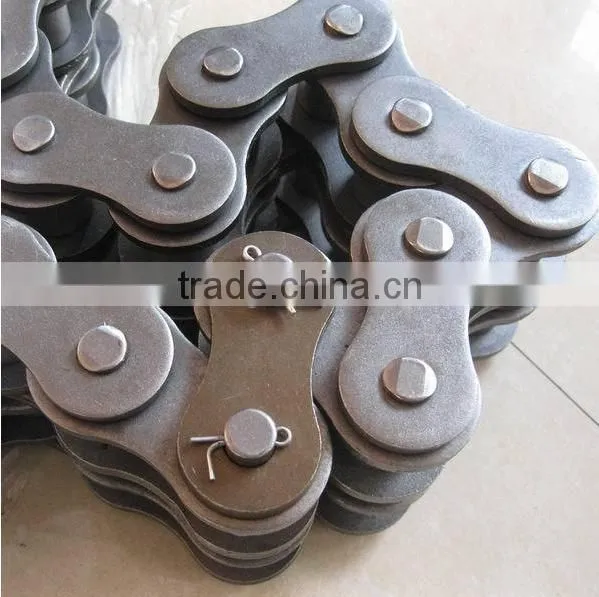

DIN Standard Industrial Roller Transmission 04C-1 25h-kette RS25 Chain
US$ 1 - 3
MOQ: 1 Meter
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
48B-3 Multiplex Roller Chains,short Pitch Precision Roller Chain (B Series)US$ 5 - 8MOQ: 10 Meters -
Industry Roller Chain 06B-1US$ 1 - 5MOQ: 1 Meter
-
24A Industrial Conveyor Roller ChainUS$ 1.6 - 5.8MOQ: 100 Meters
-
Wholesale Fexible KC-6022 Coupling ChainUS$ 35 - 38MOQ: 1 Piece
-
35BB19-5/8'' Bore 19 Tooth Idler Sprocket for 35-1 Roller ChainUS$ 1 - 80MOQ: 10 Pieces
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Alloy
Tensile Strength
high
Place of Origin
Zhejiang, China
Brand Name
NTL
Model Number
04C-1
DIN Standard Industrial Roller Transmission 04C-1 25h-kette RS25 Chain
Introduction
- Solid roller and solid bush
- End-softened pins make it easy to disassemble this chain
- Look for the round or "spin" riveting for the sign of a Renold chain
- The high waist plate shape with a high waist gives better stress distribution
- Engineered for the best fatigue resistance you can get
- Delivers wear resistance that surpasses anything produced elsewhere
- Components manufactured to the highest specifications for unbeatable accuracy
- For longer working life choose Renold roller chain
Feature
- Solid roller, solid bush
- End-softened pins for easy disassembly
- High waist plate shape
- Unrivalled component accuracy
- Reliability, Reputation and Performance
Advantage
- Unbeatable wear and fatigue resistance
- Longer working life
- Reduced bedding-in times
- Better resistance to shock loadings
Contact
Changsha Terry Machinery Co.,Ltd
Attn: Emily
E-mail: emily at
Skype: Emily Cosmic
Datasheet
| ISO KIN/ISO Chain No. | ANSI Chain No. | Pitch | Roller | Width between inner plates | Pin Dia. | Pin Length | Lnner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | weight/meter | |
| P (mm) | d1 max(mm) | b1 min(mm) | d2 max(mm) | L max(mm) | Lc max(mm) | h2 max(mm) | T max(mm) | Q min(kN/LB) | Q0 kN | q kg/m | ||
| *03C | *15 | 4.7625 | 2.48 | 2.38 | 1.62 | 6.1 | 6.9 | 4.3 | 0.6 | 1.80/409 | 2 | 0.08 |
| *04C-1 | *25 | 6.35 | 3.3 | 3.18 | 2.31 | 7.9 | 8.4 | 6 | 0.8 | 3.50/795 | 4.6 | 0.15 |
| *06C-1 | *35 | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.17 | 9 | 1.3 | 7.90/1795 | 10.8 | 0.33 |
| 31048 | 41 | 12.7 | 7.77 | 6.25 | 3.58 | 13.75 | 15 | 9.91 | 1.3 | 6.67/1516 | 12.6 | 0.41 |
Welcome to enquire for more details!
