Axially Split Spherical Roller Bearings

Axially Split Spherical Roller Bearings thumbnail-1
Axially Split Spherical Roller Bearings photo-1
US$ 100 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Bore Size:
120,
Outside Diameter:
200,
Model Number:
803824
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Bore Size 120,
Outside Diameter 200,
Model Number 803824
Precision Rating P0
Number of Row Single Row
Place of Origin Henan, China

Specifications

1.material:chrome steel
2.no MOQ demand
3.good quality control
4.custom-made

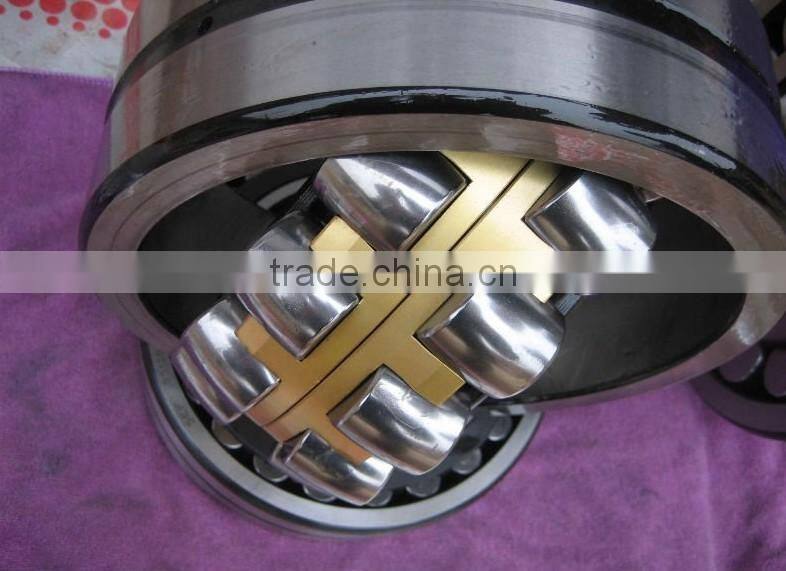

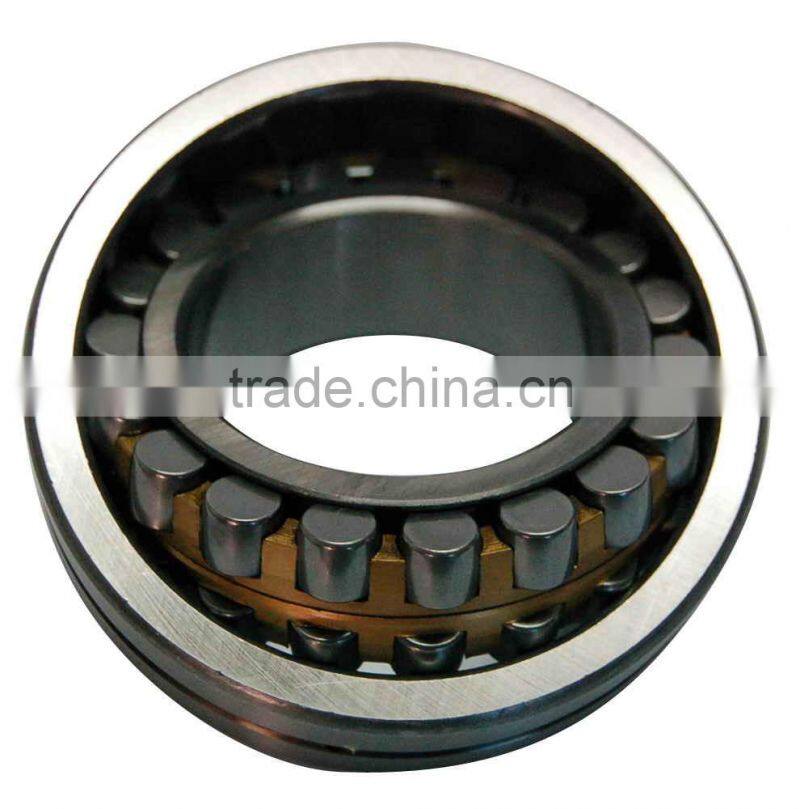

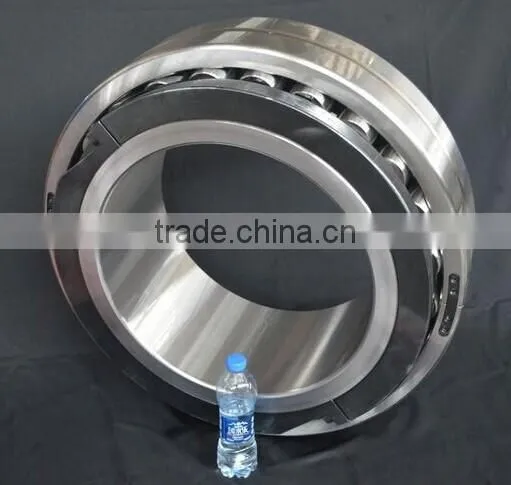

Axially split spherical roller bearings



Split bearings are the bearings on the basis of the overall design and production through a special process. Working resistance, smooth operation, operating temperature up to 180 degrees Celsius, they are very suitable for low-speed, heavy-duty, impact force, poor sealing performance places. Its biggest advantage is that the bearing can be easily installed removable, it can save a lot of time and reduce production costs.
Split bearings for all industrial sectors, mainly in the converter support for a variety of large-scale transportation equipment, associated supporting cast roll, lift and haul machines, paper machinery, removable hard place.





Principal dimensions Basic load ratings Designations Weight
    d1 D1
d D B C rsmin r1smin dyc_Cr stc_Cor ≈ ≈
mm KN kg
120 200 142 80 2 2 555 900 166 169 803824 17
140 230 102 53 2 2 370 600 180 190 803928 14
140 290 110 80 3 3 838 1145 193 247.5 803828 31.2
148 225 142 75 2.1 2.1 535 950 180 197 803830X3 14
180 300 125 74 2.1 2.1 715 1200 220 248 803836 30
280 500 260 176 5 5 2710 4650 419 439 803856 175
300 500 240 160 5 5 2527 4465 418 434 803860 165
320 540 250 176 6 6 2395 4586 439 454 803864K 196.5
340 580 280 190 5 5 2930 5574 475 487 803868 235
360 540 220 134 5 5 2250 4500 476 482 803872 155
400 600 240 148 5 5 2880 5850 522 541 803880 205
420 620 238 150 6 6 2880 5850 542 562 803884 215
460 700 245 165 6 6 3280 6550 604 635 803892 340
470 720 270 167 6 6 3570 7500 646 656 803894 375
560 800 230 150 5 5 3340 8150 669 742 8039/560 320





Axially split spherical roller bearingsAxially split spherical roller bearings





If you need,just feel free to contact with us.
