Spherical Roller Bearings for Grinding Machine 231/560CA/W33

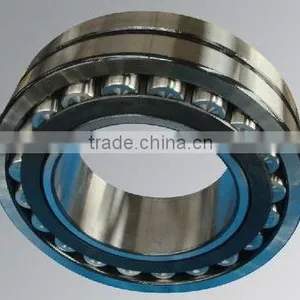

Spherical Roller Bearings for Grinding Machine 231/560CA/W33 thumbnail-1

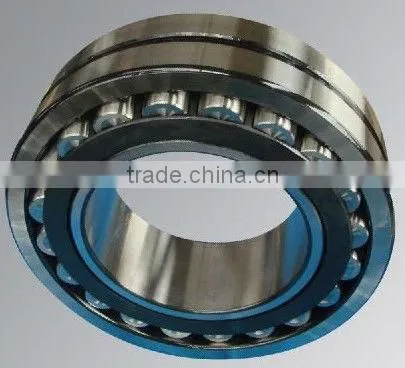

Spherical Roller Bearings for Grinding Machine 231/560CA/W33 photo-1
US$ 100 - 500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
100,
Outside Diameter:
120,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 100,
Outside Diameter 120,
Model Number 231/560CA/W33
Precision Rating P0 P6 P5
Number of Row Double Row

Specifications

1. Long life, high speed
2. High load carrying capability
3. Competitive price
4. Good shock resistance

Spherical roller bearing 231/560CA/W33



spherical roller bearing has two rows of spherical rollers, the outer race is provided with a common concave spherical raceway, while the inner race is provided with two concave spherical raceways that from an angle with the bearing axis.The curvature center of the outer raceway is consistent with the bearing center.The self-aligning roller bearing is self-adjusted, and it is not affected by non-centering or shaft deformation flexure of shaft and bearing block, so it can compensate the concentricity error caused by these reasons.Except being subject to radial load,this type of bearing can also be subject to bidirectional axial load and their combination load.The load capacity is large, and the bearing is provided with preferable shock resistant capacity.Sheft-aligning roller bearings are mainly applied on mechanical equipments of steel,mine, paper making, shipping, textile machinery, coal mill and electric power industrials.It is one of the bearing most widely used in mechanical industry.



Bearings NO. d/mm D/mm B/mm C/kN C0/kN Weight/kg
239/560 CA/W33 560 750 140 3450 7200 175
239/560 CAK/W33 560 750 140 3450 7200 170
230/560 CA/W33 560 820 195 5600 10200 355
230/560 CAK/W33 560 820 195 5600 10200 345
240/560 ECA/W33 560 820 258 7350 14600 465
240/560 ECAK30/W33 560 820 258 7350 14600 455
231/560 CA/W33 560 920 280 9150 16000 740
231/560 CAK/W33 560 920 280 9150 16000 715
241/560 ECJ/W33 560 920 355 12000 21600 985
241/560 ECK30J/W33 560 920 355 12000 21600 975
232/560 CA/W33 560 1030 365 11500 22000 1350
232/560 CAK/W33 560 1030 365 11500 22000 1310
239/600 CA/W33 600 800 150 3900 8300 220
239/600 CAK/W33 600 800 150 3900 8300 215
230/600 CA/W33 600 870 200 6000 11400 405
230/600 CAK/W33 600 870 200 6000 11400 395
240/600 ECAF/W33 600 870 272 8150 17000 520
240/600 ECAK30F/W33 600 870 272 8150 17000 510
231/600 CA/W33 600 980 300 10200 18000 895
231/600 CAK/W33 600 980 300 10200 18000 865
241/600 ECA/W33 600 980 375 11500 23600 1200
241/600 ECAK30/W33 600 980 375 11500 23600 1185
232/600 CA/W33 600 1090 388 13100 25500 1600
232/600 CAK/W33 600 1090 388 13100 25500 1555
