Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > Self-aligning Roller Bearing 23084CA/W33

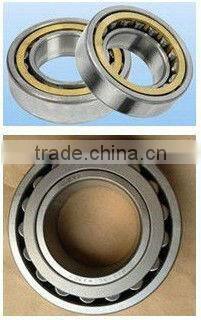

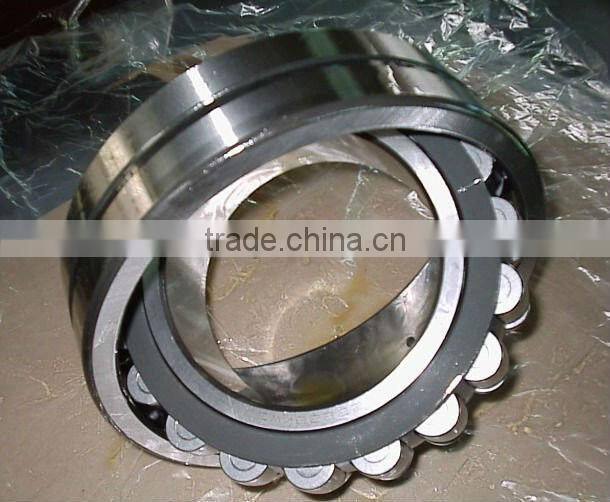

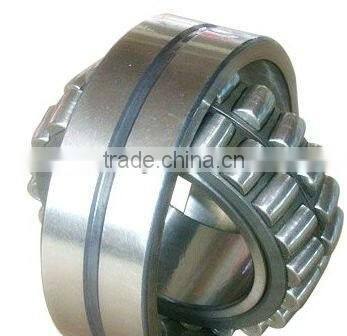

Self-aligning Roller Bearing 23084CA/W33

Self-aligning Roller Bearing 23084CA/W33 thumbnail-1
Self-aligning Roller Bearing 23084CA/W33 photo-1
US$ 100 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
420,
Outside Diameter:
620,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 420,
Outside Diameter 620,
Model Number 23084CA/W33
Precision Rating P0 P6 P5 P4 P2
Seals Type OPEN/2RS/ZZ
Number of Row Double Row
Place of Origin Hebei, China

Specifications

Self-aligning roller bearing 23084CA/W33
1.bearing steel material;
2.Demension:420*620*150;
3.Good quality control;
4.No MOQ

Self-aligning roller bearing 23084CA/W33



Appliction

Suitable for precision instruments, low noise motor, automobile, motorcycles and general machinery, machinery industry is the most widely used class of bearing



Features

Outer ring raceway is spherical surface, has the automatic Accent Heart, can compensate concentricity and deflection errors, but their inner, outer ring relative inclination of not more than 3 degrees.

1.outer ring raceway is spherical part, bearing with internal self-aligning capability, in order to adapt to the shaft and hole relative deviation.

2. can bear radial load and impact load, but also can withstand a certain degree of bi-directional axial load.

3.such bearings can limit the axial displacement of the shaft or to the casing in the bearing axial clearance range.

4. the structure principle and characteristic of bearing and self-aligning ball bearing the same load, the capacity and speed limit permit, may substitute mutually.

5. tapered bore bearing by using fasteners or withdrawal may facilitate shaft mounted fold.







 Designation  Principal  Dimension  (kN)  (r/min)  Mass
Basic Load Ratings Speed ratings
d D B r  Dynamic  Static  Grease  Oil kg
min
22244 220 400 108 4 1200 2100 850 1200 57.6
23244 220 400 144 4 1800 2820 670 850 94.6
22344/W33 220 460 145 5 1700 3090 670 850 129
23948CA 240 320 60 2.1 635 710 1300 1700 14.9
23048 240 360 92 3 820 1800 900 1200 37.6
23048K/W33 240 360 92 3 820 1800 900 1200 37.4
23148 240 400 128 4 1200 2560 760 990 77.2
24148/W33 240 400 160 4 1200 3300 430 540 81.6
24148CAK30/W33 240 400 160 4 2020 2040 480 600 77.8
22248 240 440 120 4 1490 2370 800 1000 85
23248 240 440 160 4 2200 3460 600 760 128
22348K 240 500 155 5 1780 3140 600 760 154
22348K/W33 240 500 155 5 1780 3140 600 760 153
23256CA 280 500 176 5 2970 2910 600 750 147
22356 280 580 175 6 2680 4490 540 670 238
22356K/W33 280 580 175 6 2680 4490 540 670 238
23960CA/W33 300 420 90 3 1190 1320 950 1300 40.5
23060 300 460 118 4 1430 2740 720 900 75.2
24060CA/W33 300 460 160 4 2280 4600 540 670 101
23060CA/W33 300 460 118 4 1830 1880 800 1000 71.5
22260 300 540 140 5 2070 3250 670 850 143
23964K 320 440 90 3 1200 2210 600 750 45.1
23064K 320 480 121 4 1400 2920 720 900 81.5
24064CA 320 480 160 4 2380 2620 700 900 106
23164CAK 320 540 176 5 3150 3200 630 800 195
23264CA 320 580 208 5 3900 3900 500 630 251
23264CAK/W33 320 580 208 5 3900 3900 500 630 251
23968 340 460 90 3 1260 2360 810 1050 50.5
23068K 340 520 133 5 1620 3400 630 810 109
23068/W33 340 520 133 5 1620 3400 630 810 109
23068CA 340 520 133 5 2280 2390 700 900 114
23068CAK 340 520 133 5 2280 2390 700 900 111
24068CAK30 340 520 180 5 2870 3200 530 670 135
23080 400 600 148 5 2100 4570 540 670 165
23080CA 400 600 148 5 2820 3000 600 750 158
24080CA/W33 400 600 200 5 2840 3050 450 560 202
23180 400 650 200 6 3060 6670 340 430 239
23180CA 400 650 200 6 4100 4300 380 480 272
23280 400 720 256 6 5750 8420 310 390 530
22380 400 820 243 7.5 4650 8960 240 320 650
23084 420 620 150 5 2320 4570 400 500 159
23084CA 420 620 150 5 2970 3300 450 560 149
23184/W33 420 700 224 6 4170 8100 320 400 402
23284CA 420 760 272 7.5 6140 11250 320 400 659









Self-aligning roller bearing 23084CA/W33



Self-aligning roller bearing 23084CA/W33 Self-aligning roller bearing 23084CA/W33
