Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > Rotary Table Robot Cross Roller Slewing Bearing RA9008 CRBS908

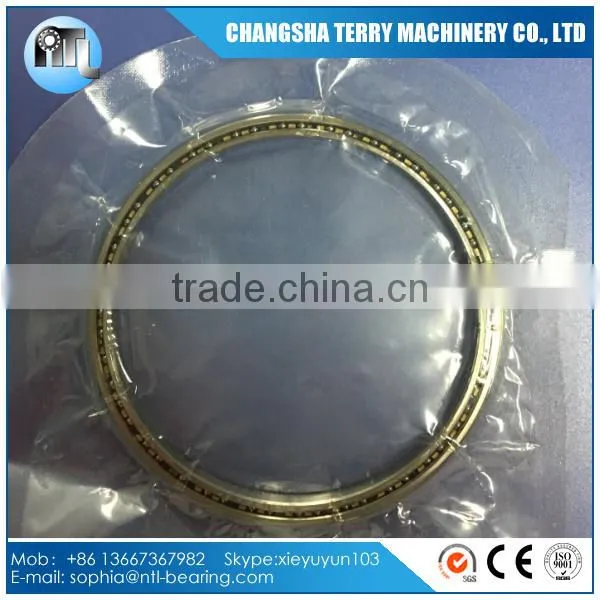

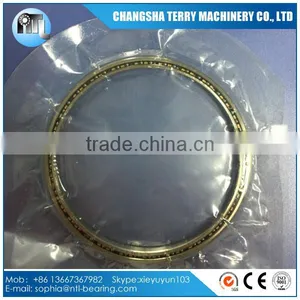

Rotary Table Robot Cross Roller Slewing Bearing RA9008 CRBS908
US$ 70 - 78
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
90,
Outside Diameter:
106,
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30*62*16mm Stainless Steel Taper Roller Bearing 30206US$ 1 - 20MOQ: 10 Pieces -
Thin Section Cross Roller Slewing Bearing XRA9008 CRBS908US$ 78 - 78MOQ: 1 Piece
-
High Quality Cylindrical Roller Bearing Planet Gear Bearing RSL182205US$ 19.5 - 19.5MOQ: 10 Pieces
-
Full Complement Roller Bearing Planet Gear Bearing F-219012US$ 10 - 10MOQ: 10 Pieces
-
Cylindrical Roller Bearing Textile Bearings F-212543US$ 1 - 10MOQ: 10 Pieces
Brand Name
NTL
Bore Size
90,
Outside Diameter
106,
Model Number
RA9008 CRBS908
Precision Rating
P0
Seals Type
rubber seal
Number of Row
Single Row
Place of Origin
Henan, China
Rotary table robot cross roller slewing bearing RA9008 CRBS908
XRA series is the wall thickness of the inner and outer rings made very thin cylindrical cross roller bearings, small footprint and can withstand heavy loads, ideal for a robot or industrial robot hand portion of the rotary joints. The outer ring 2 is divided structure, through the integral rivets.
RA series crossed cylindrical roller bearing, this model is to type RB inside and outside the ring thickness decreases to the limit of the compact, as outer ring structure and RB series fission structure, the most suitable for the need of light weight, compact design, such as mechanical rotating parts.
Bearing No | Dimension(mm) | Basic load rating(kn) | Weight(kg) | ||||
d | D | B | C | Co | |||
XRA5008 | CRBS508 | 50 | 66 | 8 | 5.1 | 7.19 | 0.08 |
XRA6008 | CRBS608 | 60 | 76 | 8 | 5.68 | 8.68 | 0.09 |
XRA7008 | CRBS708 | 70 | 86 | 8 | 5.98 | 9.8 | 0.1 |
XRA8008 | CRBS808 | 80 | 96 | 8 | 6.37 | 11.3 | 0.11 |
XRA9008 | CRBS908 | 90 | 106 | 8 | 6.67 | 12.4 | 0.12 |
XRA10008 | CRBS1008 | 100 | 116 | 8 | 7.15 | 13.9 | 0.16 |
XRA11008 | CRBS1108 | 110 | 126 | 8 | 7.45 | 15 | 0.15 |
XRA12008 | CRBS1208 | 120 | 136 | 8 | 7.84 | 16.5 | 0.17 |
XRA13008 | CRBS1308 | 130 | 146 | 8 | 7.94 | 17.6 | 0.18 |
XRA14008 | CRBS1408 | 140 | 156 | 8 | 8.33 | 19.1 | 0.19 |
XRA15008 | CRBS1508 | 150 | 166 | 8 | 8.82 | 20.6 | 0.2 |
XRA16013 | CRBS16013 | 160 | 186 | 13 | 23.3 | 44.9 | 0.59 |
XRA17013 | CRBS17013 | 170 | 196 | 13 | 23.5 | 46.5 | 0.64 |
XRA18013 | CRBS18013 | 180 | 206 | 13 | 24.5 | 49.8 | 0.68 |
XRA19013 | CRBS19013 | 190 | 216 | 13 | 24.9 | 51.5 | 0.69 |
XRA20013 | CRBS20013 | 200 | 226 | 13 | 25.8 | 54.7 | 0.71 |
