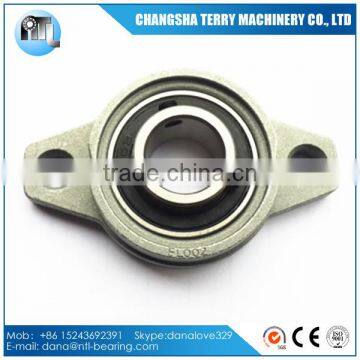

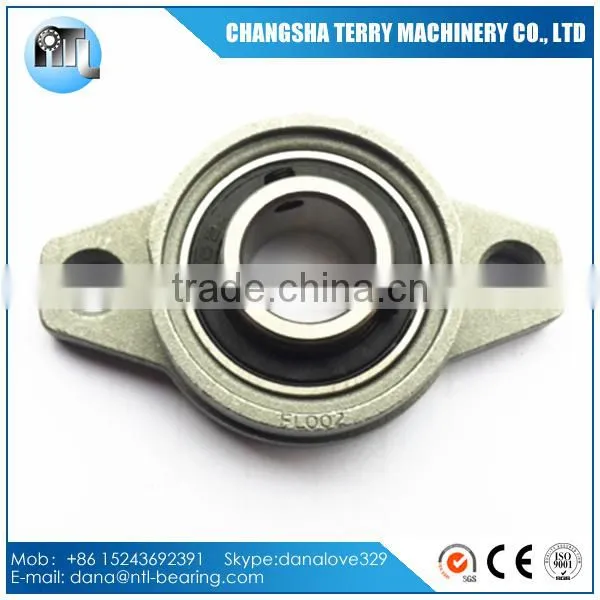

Home > Industrial Equipment & Components > Bearing > Pillow Block Bearing > KFL002 Zinc Alloy Pillow Block Bearing
US$ 0.5 - 0.9
MOQ: 1 Piece
Key Specifications
Get Latest Price
Bore Size:
15, 90
Brand Name:
NTL
Model Number:
KFL002
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SUCFL205 Stainless Steel Pillow Block Bearing With Plastic HousingUS$ 6.38 - 6.38MOQ: 10 Pieces -
Stainless Steel Pillow Block Insert Bearing UC201US$ 2 - 2MOQ: 50 Pieces
-
UCPA206 Pillow Block Insert BearingUS$ 1.5 - 1.5MOQ: 100 Pieces
-
UCPA205 Pillow Block BearingUS$ 1.5 - 1.5MOQ: 100 Pieces
-
10mm Insert Zinc Alloy Material Pillow Block Bearing KP000 KP001US$ 0.67 - 1MOQ: 100 Pieces
Bore Size
15, 90
Brand Name
NTL
Model Number
KFL002
Place of Origin
Jiangsu, China
Pillow block bearing
| Unit No. | Shaft d | Dimensions(mm) | Bolt Size mm | Bearing No. | Housing No. | Weight | |||||||||
| (mm) | H | J | A2 | A1 | A | N | L | s | Z | A3 | (kg) | ||||
| KFL000 | 10 | 60 | 45 | 6 | 6 | 12 | 7 | 36 | 4 | 16 | 20.3 | M6 | K000 | FL000 | 0.07 |
| KFL001 | 12 | 63 | 48 | 6 | 6 | 12 | 7 | 38 | 4 | 16.5 | 21 | M6 | K001 | FL001 | 0.08 |
| KFL002 | 15 | 67 | 53 | 6.5 | 6.5 | 13 | 7 | 42 | 4.5 | 18.5 | 23 | M6 | K002 | FL002 | 0.11 |
| KFL003 | 17 | 71 | 56 | 7 | 7 | 14 | 7 | 46 | 5 | 19.5 | 25 | M6 | K003 | FL003 | 0.14 |
| KFL004 | 20 | 90 | 71 | 8 | 8 | 16 | 10 | 55 | 6 | 23 | 28 | M8 | K004 | FL004 | 0.23 |
| KFL005 | 25 | 95 | 75 | 8 | 8 | 16 | 10 | 60 | 6 | 24.5 | 28.5 | M8 | K005 | FL005 | 0.27 |
| KFL006 | 30 | 112 | 85 | 9 | 9 | 18 | 13 | 70 | 6.5 | 27 | 30.5 | M10 | K006 | FL006 | 0.39 |
| Bearing Unit No. | Dimensions(mm) | ||||||||||
| Shaft Dia | |||||||||||
| d | |||||||||||
| mm | h | a | e | b | S1 | S2 | g | w | n | Bi | |
| UCP202 | 15 | 30.2 | 127 | 95 | 38 | 13 | 19 | 14 | 62 | 11.5 | 27.4 |
| UCP203 | 17 | 30.2 | 127 | 95 | 38 | 13 | 19 | 14 | 62 | 11.5 | 27.4 |
| UCP204 | 20 | 33.3 | 127 | 95 | 38 | 13 | 19 | 14 | 65 | 12.3 | 31 |
| UCP205 | 25 | 36.5 | 140 | 105 | 38 | 13 | 19 | 15 | 71 | 14.3 | 34.1 |
| UCP206 | 30 | 42.9 | 165 | 121 | 48 | 17 | 21 | 17 | 83 | 15.9 | 38.1 |
| UCP207 | 35 | 47.6 | 167 | 127 | 48 | 17 | 21 | 18 | 93 | 17.5 | 42.9 |
| UCP208 | 40 | 49.2 | 184 | 137 | 54 | 17 | 21 | 18 | 98 | 19 | 49.2 |
| UCP209 | 45 | 54 | 190 | 146 | 54 | 17 | 21 | 20 | 106 | 19 | 49.2 |
| UCP210 | 50 | 57.2 | 206 | 159 | 60 | 20 | 25 | 21 | 114 | 19 | 51.6 |
| UCP211 | 55 | 63.5 | 219 | 171 | 60 | 20 | 25 | 23 | 126 | 22.2 | 55.6 |
| UCP212 | 60 | 69.8 | 241 | 184 | 70 | 20 | 25 | 25 | 138 | 25.4 | 65.1 |
| UCP213 | 65 | 76.2 | 265 | 203 | 70 | 25 | 29 | 27 | 151 | 25.4 | 65.1 |
| UCP214 | 70 | 79.4 | 266 | 210 | 72 | 25 | 31 | 27 | 157 | 30.2 | 74.6 |
| UCP215 | 75 | 82.6 | 275 | 217 | 74 | 25 | 31 | 28 | 163 | 33.3 | 77.8 |
| UCP216 | 80 | 88.9 | 292 | 232 | 78 | 25 | 31 | 30 | 175 | 33.3 | 82.6 |
| UCP217 | 85 | 95.2 | 310 | 247 | 83 | 25 | 31 | 32 | 1870 | 34.1 | 85.7 |
| UCP218 | 90 | 101.6 | 327 | 262 | 88 | 27 | 33 | 33 | 200 | 39.7 | 96 |
| Bearing Unit | Shaft Dia | Dimensions(mm) | Weight | |||||||||
| No. | d | (kg) | ||||||||||
| mm | a | e | b | i | g | l | z | s | n | Bi | ||
| UCFL202 | 15 | 113 | 90 | 60 | 15 | 12 | 25.5 | 30.9 | 12 | 11.5 | 27.4 | 0.42 |
| UCFL203 | 17 | 113 | 90 | 60 | 15 | 12 | 25.5 | 30.3 | 12 | 11.5 | 27.4 | 0.41 |
| UCFL204 | 20 | 113 | 90 | 60 | 15 | 12 | 25.5 | 33.7 | 12 | 12.3 | 31 | 0.48 |
| UCFL205 | 25 | 130 | 99 | 68 | 16 | 14 | 27 | 35.8 | 16 | 14.3 | 34.1 | 0.6 |
| UCFL206 | 30 | 148 | 117 | 80 | 18 | 14 | 31 | 40.2 | 16 | 15.9 | 38.1 | 0.98 |
| UCFL207 | 35 | 161 | 130 | 90 | 19 | 16 | 34 | 44.4 | 16 | 17.5 | 42.9 | 1.31 |
| UCFL208 | 40 | 175 | 144 | 100 | 21 | 16 | 36 | 51.2 | 16 | 19 | 49.2 | 1.53 |
| UCFL209 | 45 | 188 | 148 | 108 | 22 | 18 | 38 | 52.2 | 19 | 19 | 49.2 | 1.68 |
| Bearing Unit No. | Shaft Dia | Dimensions(mm) | Weight | |||
| d | (kg) | |||||
| mm | h | a | e | b | ||
| UCC202 | 15 | 72 | 20 | 11.5 | 27.4 | 0.45 |
| UCC203 | 17 | 72 | 20 | 11.5 | 27.4 | 0.44 |
| UCC204 | 20 | 72 | 20 | 12.3 | 31 | 0.49 |
| UCC205 | 25 | 80 | 22 | 14.3 | 34.1 | 0.65 |
| UCC206 | 30 | 85 | 27 | 15.9 | 38.1 | 0.82 |
| UCC207 | 35 | 90 | 28 | 17.5 | 42.9 | 1.03 |
| UCC208 | 40 | 100 | 30 | 19 | 49.2 | 1.2 |
| UCC209 | 45 | 110 | 31 | 19 | 49.2 | 1.5 |
