One Way Clutch Bearing Csk20 2rs for Printing Machine

one way clutch bearing csk20 2rs for printing machine

CSK series one way bearings is a sprag type freewheel , integrated into 6200 series ball bearing(except sizes 8 and 40), Also named OW BB KK etc. It provides you an one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space. It is bearing supported, shipped grease lubricated and protected against dust larger than 0.3mm diameter. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit asspecified. Operating temperature range:-20°C to +100°C. Peaks up to +120°C are acceptable for short periods.

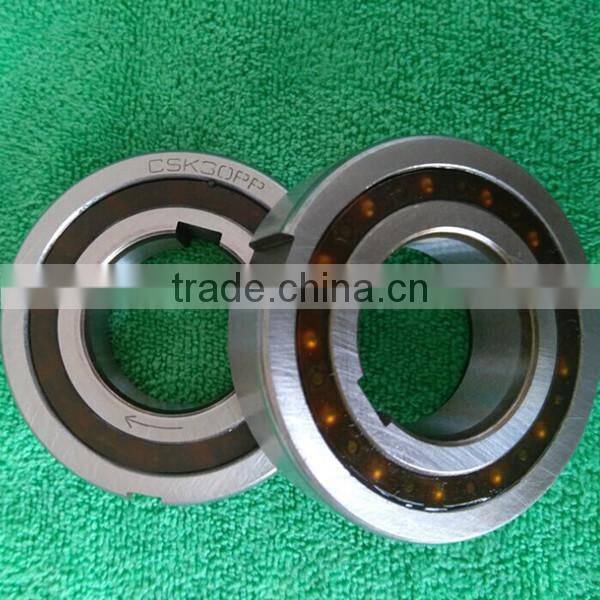

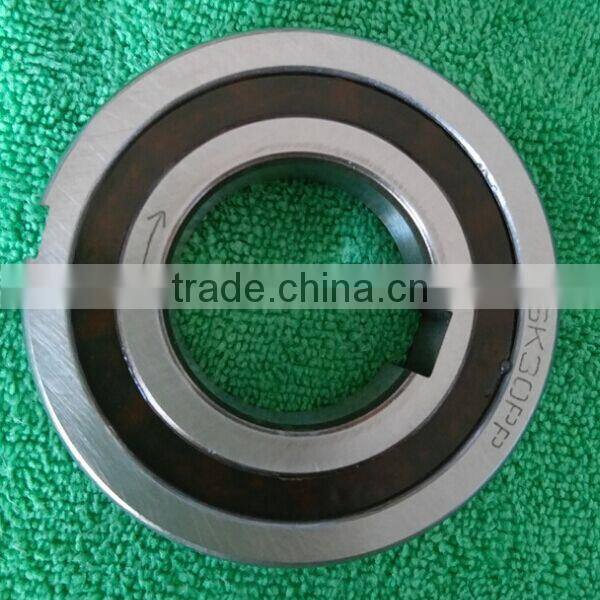

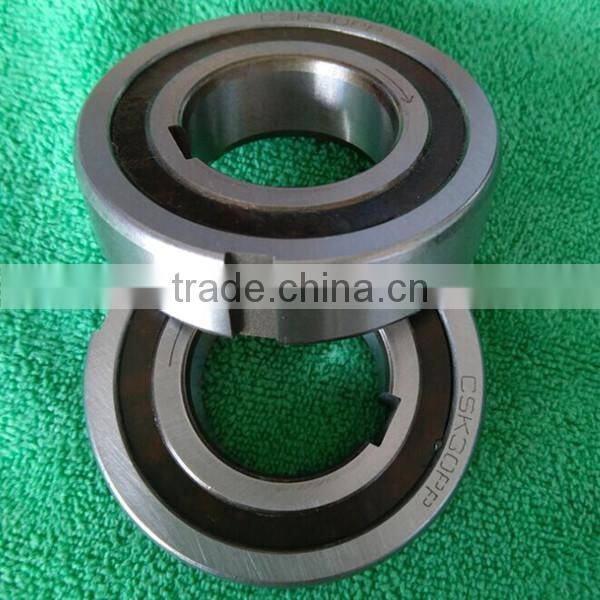

The CSK series freewheel include CSK CSK…P CSK..PP type. CSK…P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race, The type of CSK…PP clutches have a keyway on both inner race and outer race.

The CSK series one way cluth bearings have be used widely in washing machine, grass cutter, printing machine, textile machinery and food machinery etc.

if you are interested in our products, please contact me freely:)

Attn: connie

eamil:connie at

whatsapp:+8615073676619

wechat:empty919
