Home > Industrial Equipment & Components > Bearing > Deep Groove Ball Bearing > 8mm 608 688 Si3N4 Full Ceramic Ball Bearing
US$ 6 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
3, 150
Outside Diameter:
8, 200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
608ZZ Plastic Nylon Pulley Wheel With Ball BearingUS$ 0.05 - 0.5MOQ: 1 Piece -
6207CE 35*72*17mm High Technology Ceramic Deep Groove Ball BearingUS$ 0.15 - 0.25MOQ: 1 Piece
-
626-ZZ Plastic Black Nylon Coated Pulley Bearing for Sliding DoorUS$ 0.05 - 2MOQ: 1 Piece
-
Nylon Coated Ball Bearing Plastic PulleyUS$ 0.1 - 0.5MOQ: 1 Piece
-
U Groove Sliding Door Roller BearingUS$ 0.1 - 0.4MOQ: 1 Piece
Brand Name
NTL
Bore Size
3, 150
Outside Diameter
8, 200
Model Number
608 688
Place of Origin
Jiangsu, China
Ceramic Ball Bearing

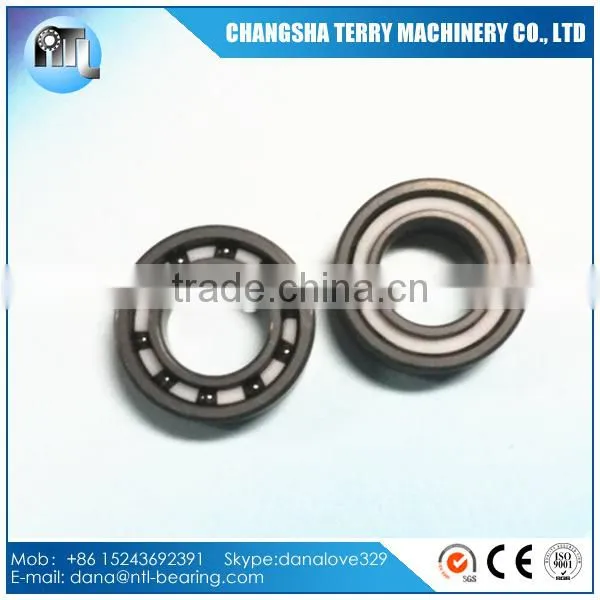

608 full ceramic ball bearing Si3N4
We supply the Hybrid Ceramic Bearing. Full Complement ceramic bearings,Ceramic Balls at high precision and competitive price.
High speed ceramic ball bearings
Models:
672~6709
682~6820
692~6920
602~6020
623~6220
633~6320
16000
MR52-MR149,R,FR,MR,MFR
Features:
1.High speed bearings:12000rpm--75000rpm
2.High temperature-resistant bearing:100°C--800°C.It can been applied in kiln,plastic,steel and other equipments that can bear high temperature
3.Corrosion-resistant bearings
4.Electric-insulated bearings
5.Vacuum bearings:self-lubricating without oil
| Flange | Open | Shield | Boundary Diameter | ||
| d | D | Df | |||
| F | 681 | 1 | 3 | 3.8 | |
| F | 691 | 1 | 4 | 5 | |
| F | 682 | ZZ | 2 | 5 | 6.1 |
| F | 602 | ZZ | 2 | 7 | 8.5 |
| F | 603 | ZZ | 3 | 9 | 10.5 |
| F | 623 | ZZ | 3 | 10 | 11.5 |
| F | 684 | ZZ | 4 | 9 | 10.3 |
| F | 685 | ZZ | 5 | 11 | 12.5 |
| F | 605 | ZZ | 5 | 14 | 16 |
| F | 606 | ZZ | 6 | 17 | 19 |
| F | 626 | ZZ | 6 | 19 | 22 |
| F | 607 | ZZ | 7 | 19 | 22 |
| F | 688 | ZZ | 8 | 16 | 18 |
| F | 608 | ZZ | 8 | 22 | 25 |
| BearingNo | Bored(mm) | O.dD(mm) | WidthB(mm) | Load Rating | Weight(kg) | |
| Dynamic | Static | |||||
| 695 | 5 | 13 | 4 | 0.83 | 0.39 | 0.0022 |
| 696 | 6 | 15 | 5 | 1.13 | 0.56 | 0.0039 |
| 697 | 7 | 17 | 5 | 1.55 | 0.78 | 0.0053 |
| 698 | 8 | 19 | 6 | 2.03 | 1.05 | 0.0072 |
| 699 | 9 | 20 | 6 | 1.9 | 0.99 | 0.0075 |
| 6900 | 10 | 22 | 6 | 2.07 | 1.12 | 0.01 |
| 6901 | 12 | 24 | 6 | 2.2 | 1.24 | 0.011 |
| 6902 | 15 | 28 | 7 | 2.64 | 1.51 | 0.017 |
| 6903 | 17 | 30 | 7 | 2.79 | 1.66 | 0.018 |
| 6904 | 20 | 37 | 9 | 5.05 | 3.08 | 0.036 |
| 6905 | 25 | 42 | 9 | 5.63 | 3.68 | 0.042 |
| 6906 | 30 | 47 | 9 | 5.82 | 3.97 | 0.048 |
| 6907 | 35 | 55 | 10 | 9.5 | 6.8 | 0.074 |
| 6908 | 40 | 62 | 12 | 13.7 | 9.9 | 0.11 |
| 6909 | 45 | 68 | 12 | 14.1 | 10.9 | 0.132 |
| 6910 | 50 | 72 | 12 | 14.5 | 11.7 | 0.133 |
| ID | OD | Width | chamfer | LOADING(KN) | BALL | WEIGHT | |||
| Dynamic | Static | No. | Size | KG | |||||
| Cr | Cor | mm | |||||||
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 7 | 4.763 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 8 | 4.763 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 9 | 4.763 | 0.035 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 10 | 4.763 | 0.04 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 9 | 6.35 | 0.068 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 10 | 6.35 | 0.079 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 11 | 7.144 | 0.113 |
| 6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 11 | 7.938 | 0.149 |
| 6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 12 | 7.938 | 0.185 |
| 6009 | 45 | 75 | 16 | 1 | 21 | 15.1 | 12 | 8.731 | 0.231 |
| 6010 | 50 | 80 | 16 | 1.1 | 21.8 | 16.6 | 13 | 8.731 | 0.256 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 8 | 4.763 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 7 | 5.953 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 8 | 5.953 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 8 | 6.747 | 0.066 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 8 | 7.938 | 0.106 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 9 | 7.938 | 0.128 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 9 | 9.525 | 0.199 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.7 | 15.3 | 9 | 11.112 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.1 | 17.8 | 9 | 12 | 0.366 |
| 6209 | 45 | 85 | 19 | 1.1 | 32.5 | 20.4 | 10 | 12 | 0.398 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 10 | 12.7 | 0.454 |
| 6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 6 | 7.144 | 0.053 |
| 6301 | 12 | 37 | 12 | 1 | 9.7 | 4.2 | 6 | 7.938 | 0.06 |
| 6302 | 15 | 42 | 13 | 1 | 11.4 | 5.45 | 7 | 7.938 | 0.082 |
| 6303 | 17 | 47 | 14 | 1 | 13.5 | 6.55 | 7 | 8.731 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 7 | 9.525 | 0.144 |
| 6305 | 25 | 62 | 17 | 1.1 | 21.2 | 10.9 | 7 | 11.5 | 0.232 |
| 6306 | 30 | 72 | 19 | 1.1 | 26.7 | 15 | 8 | 12 | 0.36 |
| 6307 | 35 | 80 | 21 | 1.5 | 33.5 | 19.1 | 8 | 13.494 | 0.457 |
| 6308 | 40 | 90 | 23 | 1.5 | 40.5 | 24 | 8 | 15.081 | 0.63 |
| 6309 | 45 | 100 | 25 | 1.5 | 53 | 32 | 8 | 17.462 | 0.814 |
| 6310 | 50 | 110 | 27 | 2 | 62 | 38.5 | 8 | 19.05 | |
If need any further information or samples,pls feel free to contact us.
Changsha Terry Machinery Co.,Ltd
sales manager:dana xu
Mobile:86 152 4369 2391
Fax:86 731 85515405
Skype:danalove329
Email:dana(at)
