Home > Products > Ceramic Bearing&Plastic Bearing > R188 Yoyo Bearing U Groove Hybrid Ceramic Si3N4 Bearing for Fidgetspinner Toy

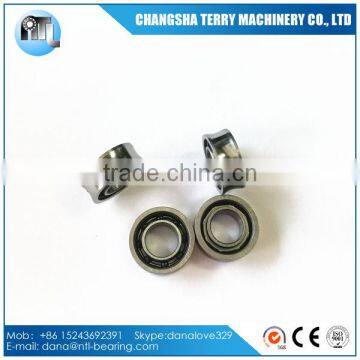

R188 Yoyo Bearing U Groove Hybrid Ceramic Si3N4 Bearing for Fidgetspinner Toy

FOB Price

US$ 1 - 2 / Piece

10 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NTL	Bore Size	3, 150
Outside Diameter	8, 200	Model Number	R188
Place of Origin	Jiangsu, China

Product Description

Ceramic Ball Bearing

R188 yoyo bearing U groove Hybrid ceramic Si3N4 bearing for fidgetspinner toy

We supply the Hybrid Ceramic Bearing. Full Complement ceramic bearings,Ceramic Balls at high precision and competitive price.

High speed ceramic ball bearings

Models:

672~6709

682~6820

692~6920

602~6020

623~6220

633~6320

16000

MR52-MR149,R,FR,MR,MFR

Features:
1.High speed bearings:12000rpm--75000rpm

2.High temperature-resistant bearing:100°C--800°C.It can been applied in kiln,plastic,steel and other equipments that can bear high temperature

3.Corrosion-resistant bearings

4.Electric-insulated bearings

5.Vacuum bearings:self-lubricating without oil

Flange	Open	Shield	Boundary Diameter
Flange	Open	Shield	d	D	Df
F	681		1	3	3.8
F	691		1	4	5
F	682	ZZ	2	5	6.1
F	602	ZZ	2	7	8.5
F	603	ZZ	3	9	10.5
F	623	ZZ	3	10	11.5
F	684	ZZ	4	9	10.3
F	685	ZZ	5	11	12.5
F	605	ZZ	5	14	16
F	606	ZZ	6	17	19
F	626	ZZ	6	19	22
F	607	ZZ	7	19	22
F	688	ZZ	8	16	18
F	608	ZZ	8	22	25

BearingNo	Bored(mm)	O.dD(mm)	WidthB(mm)	Load Rating		Weight(kg)
BearingNo	Bored(mm)	O.dD(mm)	WidthB(mm)	Dynamic	Static	Weight(kg)
695	5	13	4	0.83	0.39	0.0022
696	6	15	5	1.13	0.56	0.0039
697	7	17	5	1.55	0.78	0.0053
698	8	19	6	2.03	1.05	0.0072
699	9	20	6	1.9	0.99	0.0075
6900	10	22	6	2.07	1.12	0.01
6901	12	24	6	2.2	1.24	0.011
6902	15	28	7	2.64	1.51	0.017
6903	17	30	7	2.79	1.66	0.018
6904	20	37	9	5.05	3.08	0.036
6905	25	42	9	5.63	3.68	0.042
6906	30	47	9	5.82	3.97	0.048
6907	35	55	10	9.5	6.8	0.074
6908	40	62	12	13.7	9.9	0.11
6909	45	68	12	14.1	10.9	0.132
6910	50	72	12	14.5	11.7	0.133

	ID	OD	Width	chamfer	LOADING(KN)		BALL		WEIGHT
					Dynamic	Static	No.	Size	KG
					Cr	Cor	No.	mm	KG
6000	10	26	8	0.3	4.55	1.95	7	4.763	0.019
6001	12	28	8	0.3	5.1	2.39	8	4.763	0.021
6002	15	32	9	0.3	5.6	2.84	9	4.763	0.035
6003	17	35	10	0.3	6.8	3.35	10	4.763	0.04
6004	20	42	12	0.6	9.4	5.05	9	6.35	0.068
6005	25	47	12	0.6	10.1	5.85	10	6.35	0.079
6006	30	55	13	1	13.2	8.3	11	7.144	0.113
6007	35	62	14	1	16	10.3	11	7.938	0.149
6008	40	68	15	1	16.8	11.5	12	7.938	0.185
6009	45	75	16	1	21	15.1	12	8.731	0.231
6010	50	80	16	1.1	21.8	16.6	13	8.731	0.256
6200	10	30	9	0.6	5.1	2.39	8	4.763	0.032
6201	12	32	10	0.6	6.1	2.75	7	5.953	0.037
6202	15	35	11	0.6	7.75	3.6	8	5.953	0.045
6203	17	40	12	0.6	9.6	4.6	8	6.747	0.066
6204	20	47	14	1	12.8	6.65	8	7.938	0.106
6205	25	52	15	1	14	7.85	9	7.938	0.128
6206	30	62	16	1	19.5	11.3	9	9.525	0.199
6207	35	72	17	1.1	25.7	15.3	9	11.112	0.288
6208	40	80	18	1.1	29.1	17.8	9	12	0.366
6209	45	85	19	1.1	32.5	20.4	10	12	0.398
6210	50	90	20	1.1	35	23.2	10	12.7	0.454
6300	10	35	11	0.6	8.2	3.5	6	7.144	0.053
6301	12	37	12	1	9.7	4.2	6	7.938	0.06
6302	15	42	13	1	11.4	5.45	7	7.938	0.082
6303	17	47	14	1	13.5	6.55	7	8.731	0.115
6304	20	52	15	1.1	15.9	7.9	7	9.525	0.144
6305	25	62	17	1.1	21.2	10.9	7	11.5	0.232
6306	30	72	19	1.1	26.7	15	8	12	0.36
6307	35	80	21	1.5	33.5	19.1	8	13.494	0.457
6308	40	90	23	1.5	40.5	24	8	15.081	0.63
6309	45	100	25	1.5	53	32	8	17.462	0.814
6310	50	110	27	2	62	38.5	8	19.05

If need any further information or samples,pls feel free to contact us.

Changsha Terry Machinery Co.,Ltd

sales manager:dana xu

Mobile:86 152 4369 2391

Fax:86 731 85515405

Skype:danalove329

Email:dana(at)

Company Profile

Changsha Terry Machinery Co., Ltd.

Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy. We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields. Our Advantages Products Big volume in Stock, No MOQ required We comply with all the international standards, such as ISO9001 and TS16949 standards. Personnel Our sales persons are well trained to accommodate your requests and speak English for your convenience. Our technicians and engineers have 23 years of Experience in the Bearing Industry. Service & Quality control We supply detailed drawings and offer whenever necessary. We inspect every piece of bearing by ourselves before delivery.
