Yoke type track roller bearing NATR8PP NATR8PP
Yoke track roller bearings
Model RSTO support roller bearing
Model STO and STO...ZZ support roller bearing
Model RNA22...2RS and NA22...2RS support roller bearing
Model NATR and NATR...PP support roller bearing
Model NUTR support roller bearing
Model NAST support roller bearing

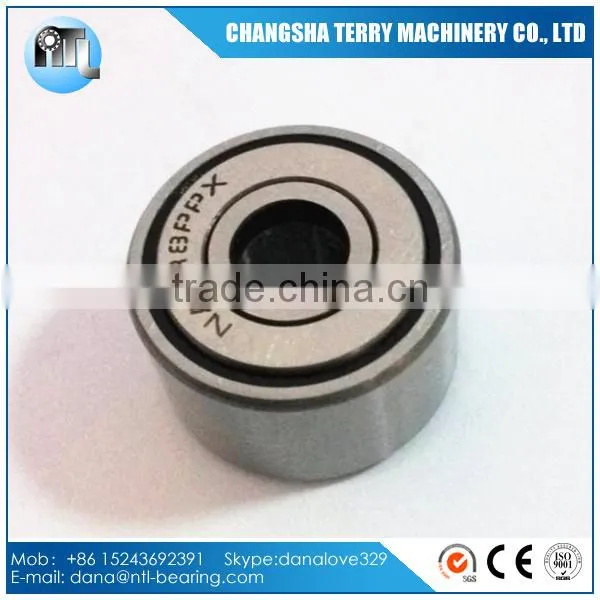

Bearing Code:NATR8PPX (X--the outer ring surface is cylinder face)
Material:GCr15
Size: inside diameter-8mm
outerside diameter-24mm
thickness:15mm
Basic Load Rating: Dymamic-6800N Static-7700N
Outside Diameter | Bearing Designation and mass approx | Borndary Dimensions | Basic Load Rating | Limiting Speed | ||||||||||
Without seal | Mass | Sealed | Mass | d | D | B | C | d1 | Dynamic | Static | As yoke type track rollers | Oil | ||
Dynamic | Static | |||||||||||||
mm | g | g | mm | N | rpm | |||||||||
16 | NATR 5 | 14 | NATR 5 PP | 14 | 5 | 16 | 12 | 11 | 12 | 3050 | 3000 | 2050 | 2400 | 22000 |
NATV 5 | 15 | NATV 5 PP | 15 | 5 | 16 | 12 | 11 | 12 | 4500 | 6300 | 3680 | 4300 | 8500 | |
19 | NATR 6 | 20 | NATR 6 PP | 20 | 6 | 19 | 12 | 11 | 14 | 3600 | 3650 | 2450 | 2850 | 20000 |
NATV 6 | 21 | NATV 6 PP | 21 | 6 | 19 | 12 | 11 | 14 | 5700 | 8700 | 4600 | 6750 | 7000 | |
24 | NATR 8 | 41 | NATR 8 PP | 41 | 8 | 24 | 15 | 14 | 19 | 4500 | 5400 | 3900 | 4500 | 5000 |
NATV 8 | 42 | NATV 8 PP | 42 | 8 | 24 | 15 | 14 | 19 | 8600 | 12000 | 6700 | 9800 | 5500 | |
