Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > Angular Contact Ball Bearing Guide Roller Bearing LR5200 NPPU
Angular Contact Ball Bearing Guide Roller Bearing LR5200 NPPU
US$ 2.5 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
10, 40
Outside Diameter:
32, 60
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zinc Plating u Shape Rope Groove Pulley v Belt Pulley 608zzUS$ 0.5 - 1MOQ: 500 Pieces -
v Groove Bearing Sg15 Sg20 Sg25 Use for Embroidery Machine and Linear BlockUS$ 0.39 - 0.45MOQ: 50 Pieces
-
Embroidery Machinery SG15 u Groove Track Roller BearingUS$ 0.88 - 0.98MOQ: 10 Pieces
-
Textile Machinery SG10 u Groove Track Roller BearingUS$ 0.98 - 1.08MOQ: 10 Pieces
-
KR22PP CF10UU Needle Roller Cam Follower Track Roller BearingUS$ 1.58 - 1.78MOQ: 10 Pieces
Brand Name
NTL
Bore Size
10, 40
Outside Diameter
32, 60
Model Number
LR5200 NPPU
Precision Rating
P0 P6 P5
Seals Type
ZZ, RS
Number of Row
Single Row
Place of Origin
Zhejiang, China
Product Description

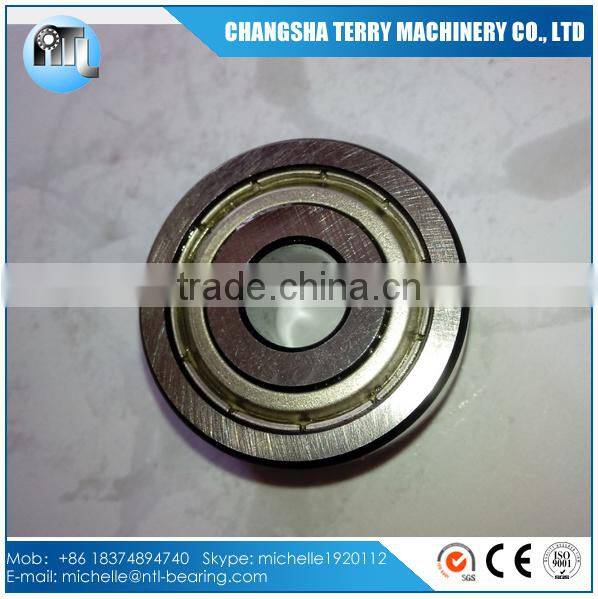

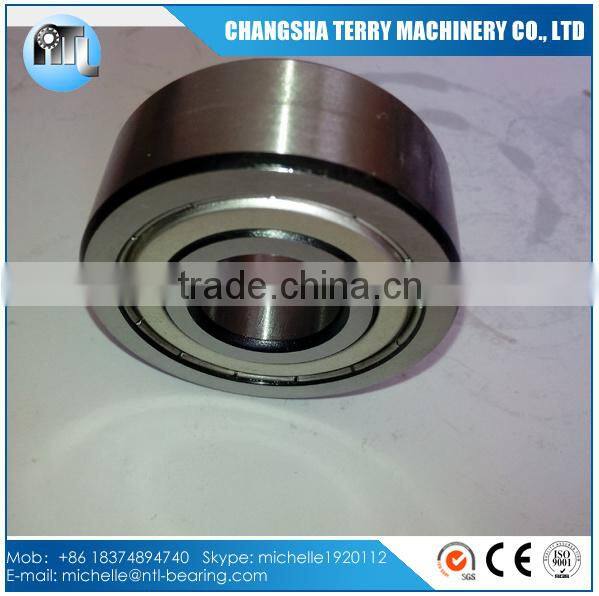

angular contact ball bearing guide roller bearing LR5200 NPPU
The Track Roller is made very strictly, the inspection is critical, special for the runout of outer ring and roundness of working surface, to guarantee the smooth running and mini error and low the noise Level
Our precision guide wheel bearings are widely exported to USA, EU ,Germany and had been widely used in China many precision machineries,precision linear guides .
High tolerance and long life character ,we had wone good reputation from our customers !
Products includes:SG FR LR A W(RM/VW) LV(RV) LFR and Special series!
Shield type: Z, ZZ, RS, 2RS, NPP, KDD
LR Series Track Roller Bearings
| Type | Weight | D | d | B | C | R | Rs | Cw | Cow | Puw | Seal | Shield |
| (g) | mm | N | ||||||||||
| LR206NPP | 330 | 72 | 30 | 16 | 16 | -- | 1 | 16600 | 9600 | 391 | 5500 | 7500 |
| LR206NPPU | 330 | 72 | 30 | 16 | 16 | 500 | 1 | 16600 | 9600 | 391 | 5500 | 7500 |
| LR206KDD | 330 | 72 | 30 | 16 | 16 | -- | 1 | 16600 | 9600 | 391 | 5500 | 7500 |
| LR206KDDU | 330 | 72 | 30 | 16 | 16 | 500 | 1 | 16600 | 9600 | 391 | 5500 | 7500 |
| LR207NPP | 400 | 80 | 35 | 17 | 17 | -- | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 |
| LR207NPPU | 400 | 80 | 35 | 17 | 17 | 500 | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 |
| LR207KDD | 400 | 80 | 35 | 17 | 17 | -- | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 |
| LR207KDDU | 400 | 80 | 35 | 17 | 17 | 500 | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 |
| LR208NPP | 450 | 85 | 40 | 18 | 18 | -- | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 |
| LR208NPPU | 450 | 85 | 40 | 18 | 18 | 500 | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 |
| LR208KDD | 450 | 85 | 40 | 18 | 18 | -- | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 |
| LR208KDDU | 450 | 85 | 40 | 18 | 18 | 500 | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 |
| LR209NPP | 500 | 90 | 45 | 19 | 19 | -- | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 |
| LR209NPPU | 500 | 90 | 45 | 19 | 19 | 500 | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 |
| LR209KDD | 500 | 90 | 45 | 19 | 19 | -- | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 |
| LR209KDDU | 500 | 90 | 45 | 19 | 19 | 500 | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 |
| LR50/5NPP | 10 | 17 | 5 | 7 | 7 | -- | 0.2 | 1650 | 950 | 39 | 12000 | 16000 |
| LR50/5NPPU | 10 | 17 | 5 | 7 | 7 | 500 | 0.2 | 1650 | 950 | 39 | 12000 | 16000 |
| LR50/5KDD | 10 | 17 | 5 | 7 | 7 | -- | 0.2 | 1650 | 950 | 39 | 12000 | 16000 |
| LR50/5KDDU | 10 | 17 | 5 | 7 | 7 | 500 | 0.2 | 1650 | 950 | 39 | 12000 | 16000 |
| LR50/6NPP | 20 | 19 | 6 | 9 | 9 | -- | 0.3 | 2650 | 1310 | 54 | 11000 | 15000 |
| LR50/6NPPU | 20 | 19 | 6 | 9 | 9 | 500 | 0.3 | 2650 | 1310 | 54 | 11000 | 15000 |
