Home > Industrial Equipment & Components > Bearing > Plain Bearing > JDB Solid-lubricant Inlaid Graphite Bronze Bushing
US$ 0.3 - 2.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NTL
Model Number:
JDB
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PTFE SF1 DU Bronze Bushing BearingUS$ 0.05 - 3.5MOQ: 1 Piece -
Tin-plated Self Lubricating PTFE Coated SF1 du Bushing BearingUS$ 0.06 - 0.15MOQ: 1 Piece
-
High Quality Customized JDB Graphite Bronze Bushing BearingUS$ 0.2 - 10MOQ: 1 Piece
-
High Quality JDB Graphite Bronze Bushing BearingUS$ 0.2 - 10MOQ: 1 Piece
-
45mm Graphite Self Lubricating Bronze Bushing BearingUS$ 0.2 - 10MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
NTL
Model Number
JDB
Type
Sleeve
Material
graphite copper, PTFE

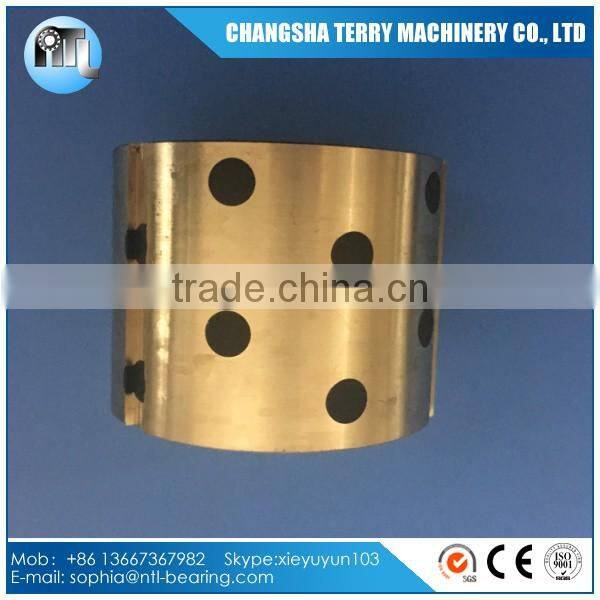

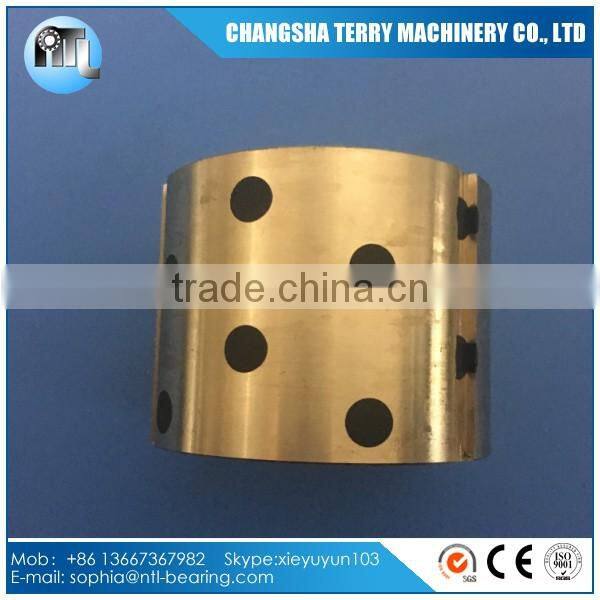

JDB Solid-lubricant Inlaid graphite bronze bushing
Mosaic solid bearings, JDB - 1 is on the high strength of brass substrate, enchase a high-performance solid lubrication graphite or MoS2 solid lubricant products. It broke through the general bearing on the limitations of the oil film lubrication. In use process, through the friction heat make solid lubricant and shaft friction, the excellent conditions of forming, powder and oil lubrication, both to protect shaft wear and tear, and the solid lubrication characteristics of eternity. It is twice as tall as general copper sleeve, wear-resisting performance is twice as high. Has been widely used in metallurgical continuous casting machine, train bracket, steel rolling equipment, mining machinery, shipping, steam turbine and other high temperature, high load, occasions such as use of low speed and heavy loading.
Features:
Substrate material: CuZn24AL6
The matrix hardness: HB230-270
The coefficient of friction: < 0.16
The highest use temperature: 300 °C
Application Feature
1).Good load capacity and anti-wear.
2).It is in high load capacities and low speed with rotational,oscillationg or frequent stop-start motion.
3).It can work for a long time without oil in the condition of boundary lubrication,under oil or grease lubrication interval, the working-life will be longer.
4).It is machinable for the thicker of PTFE.
5).The bushes can be applied in auto chassis ,forging machine,metallurgical,civil engineering ,power satation,strip rolling industries,ect.
6).It is widely used in the machine where lead is unacceptable.
Technical Date
| Max.load | Static | 250N/mm² |
| Lower speed | 140N/mm² | |
| Roatating oscillating | 70N/mm² | |
| Max.PV(dry running) | 3N/mm².m/s | |
| Temp.limit | -40°C to+ 110°C | |
| Friction coefficient | 0.05~0.20 | |
| Max.speed | Grease Lubrication | 2m/s |
| Oil continued to | >2m/s | |
| Thermal condustivity | 50W(m.k)`1 | |
| Coefficient of thermal expansion | 11X10` .K`1 | |
| Initial assembly must be painted in the oil hold in the grease | ||
If you need,just feel free to contact with us.
Sophia
Skype:xieyuyun103
Tel:+86 13667367982
