Home > Products > Ball screw > Good quality ball screw SUF2005-4

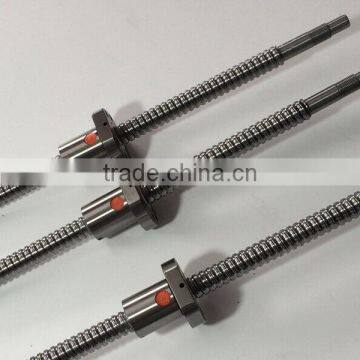

Good quality ball screw SUF2005-4
- 50000 Meter / Meters per Month
- Shanghai
- T/T Credit Card
Product Details
Manufacturing Process: | Rolled Thread | Material: | GCr15 | Length: | 100~3000 mm |
Model Number: | SFU2005-4 | Brand Name: | NTL |
Product Description
High precision ball screw SFU2005
Part No. | Screw diameter | PH | Ball | n | D
| D3 | D4 | H | B | L | L(D) | D M | D 5 | |
SFU1204-3 | 12 | 4 | 2.381 | 3 | 22 | 42 | 32 | 36 | 8 | 36 | 6 | 4.7 | ||
SFU1605-3 | 16 | 5 | 3.175 | 3 | 28 | 48 | 38 | 40 | 10 | 44 | 85 | 6 | 5.5 | |
SFU2005-3 | 20 | 5 | 3.175 | 3 | 36 | 58 | 47 | 44 | 10 | 44 | 85 | 6 | 6.6 | |
SFU2505-3 | 25 | 5 | 3.175 | 3 | 40 | 62 | 51 | 48 | 10 | 44 | 85 | 6 | 6.6 | |
SFU2005-4 | 20 | 5 | 3.175 | 4 | 36 | 58 | 47 | 44 | 10 | 44 | 6 | 6.6 | ||
SFU2505-4 | 25 | 5 | 3.175 | 4 | 40 | 62 | 51 | 48 | 10 | 50 | 6 | 6.6 | ||
SFU3205-4 | 32 | 5 | 3.175 | 4 | 50 | 80 | 65 | 62 | 12 | 52 | 98 | 6 | 9 | |
SFU4005-4 | 40 | 5 | 3.175 | 4 | 63 | 93 | 78 | 70 | 15 | 55 | 6 | 9 | ||
SFU1610-3 | 15.3 | 10 | 3.175 | 3 | 28 | 48 | 38 | 40 | 10 | 45 | 6 | 5.5 | ||
SFU2010-3 | 20 | 10 | 3.175 | 3 | 36 | 58 | 47 | 44 | 10 | 45 | 6 | 6.6 | ||
SFU2510-3 | 25 | 10 | 4.763 | 3 | 40 | 62 | 51 | 48 | 10 | 71 | 6 | 6.6 | ||
SFU2510-4 | 25 | 10 | 4.763 | 4 | 40 | 62 | 51 | 48 | 10 | 83 | 6 | 6.6 | ||
SFU3210-4 | 32 | 10 | 6.35 | 4 | 50 | 80 | 65 | 62 | 12 | 90 | 6 | 9 | ||
SFU4010-4 | 40 | 10 | 6.35 | 4 | 63 | 93 | 78 | 70 | 14 | 93 | 6 | 9 | ||
SFU5010-4 | 50 | 10 | 6.35 | 4 | 75 | 110 | 93 | 85 | 16 | 95 | 6 | 11 | ||
SFU6310-4 | 60 | 10 | 6.35 | 4 | 90 | 125 | 108 | 95 | 18 | 97 | 6 | 11 | ||
SFU2505-4 | 25 | 5 | 3.175 | 3 | 40 | 62 | 51 | 48 | 10 | 50 | 6 | 5.5 | ||
SFU3205-4 | 32 | 5 | 3.175 | 4 | 50 | 80 | 67 | 62 | 12 | 51 | 6 | 6.6 | ||
SFU2505-3 | 25 | 5 | 3.175 | 3 | 40 | 162 | 51 | 10 | 55 | 6 | 5.5 | |||
SFU5005-4 | 50 | 5 | 3.175 | 4 | 71 | 110 | 90 | 85 | 14 | 55 | 6 | 9 |
Applications:
IT industry, wood router,automobiles, household appliances,,window machines,railways, steel, engineering machinery,
petrochemical machinery. Widely used in CNC machinery, electronic equipment, automation equipment,laser equipment,medical equipment and other fields.
We supply SFU2505 rolled Ball screw assembly has been presented above,If you want more info.pls contact us,we will reply you asap.
