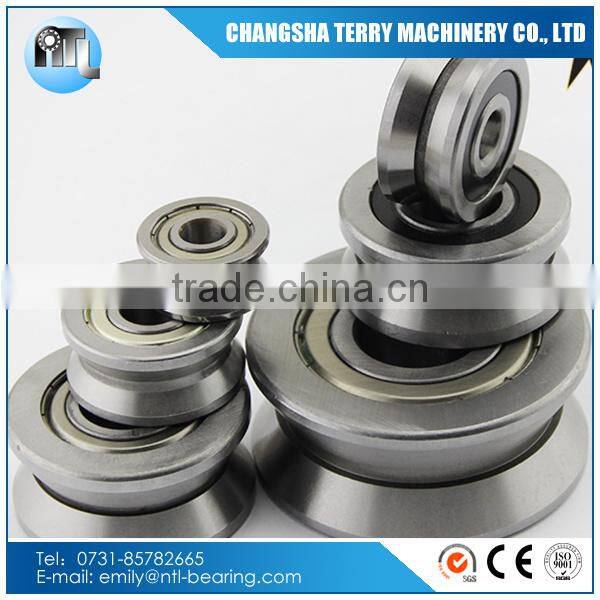

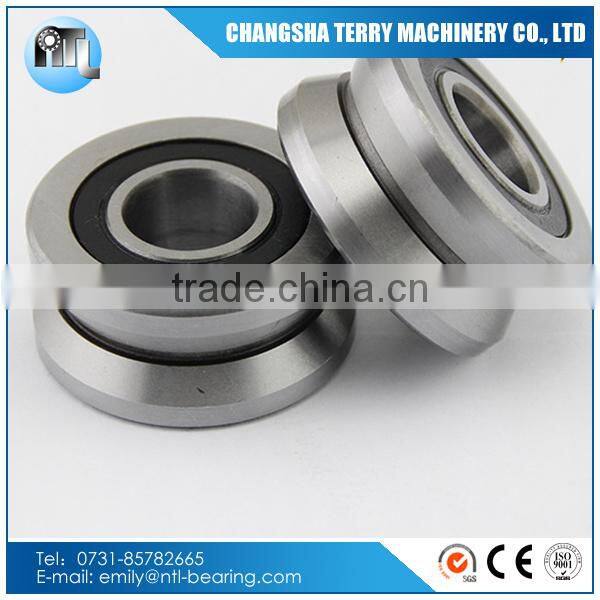

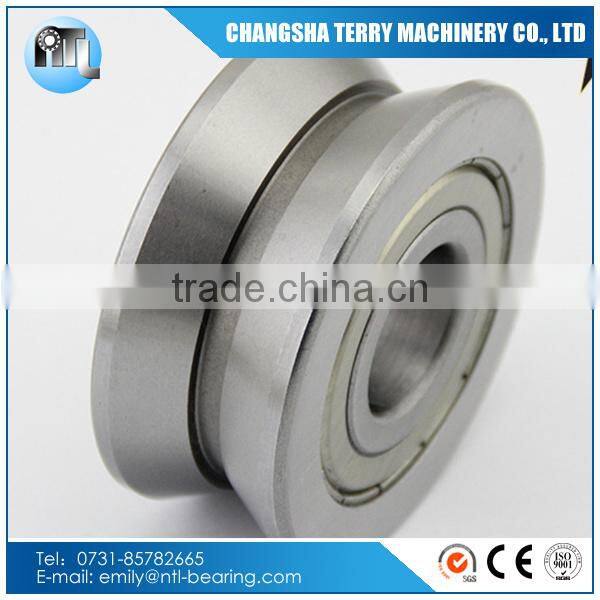

FR10 V groove track roller bearing
Feature
V guide roller bearing is W type roller orientation system of the main parts in, widely used in industrial robot, cutting equipment, mobile guide rail, production lines, etc.
For the two outer wheel had 90 degrees of V W shaped outside surface. Can be used in the lateral side or with 90 degrees in V type or the V type guide rail, also can use side in fit with cylindrical guide adaptation.
The wheel had double row angular contact ball bearing internal structure design and thickness of the outer lane, make the bearing capacity of the roller higher.
Application
Manipulator, shaft or large machine tool, wheel shaft box, large reduce, bearing of roller steel mill, agricultural
machinery, construction, hydro and wind engineering, machine tools and manufacturing machinery, material
handling and packaging industry, port engineering, electric tools industry, transmission, the semiconductor,
pump and fan, industrial robotics and automation, rubber, plastic and chemical, textile machine, metallurgy,
tractor, woodworking machinery, office automation equipment.
Bearing types
| Yoke type track rollers | without axial guidance | RSTO, STO, RNA22…2RS, NA22…2RS, | |
| with axial guidance | NATR…PP | ||
| full completement | NAST, NATR, NATV…PP, NATV, NUTR, PWTR...2RS, NNTR…2ZL, | ||
| Stud thread type track roller | with axial guidance | KR…PP, KR, KRE…PP, KRV…PP, NUKR, NUKRE, PWKR…2RS, PWKRE…2RS | |
| guide rail track roller | sealed | double row | LFR..2Z, LR50, LR52, LR53, SG, C,CR,LV, W, RM, RCP, RCV,REP, REV,RE |
| single row | LR6, LR2, KLR | ||
| Stud type track roller | sealed | double row | ZL52…DRS, ZLE52…2Z, KR52…2RS |
| single row | ZL2…DRS |
Datasheet
| Track Roller No. | Weight ≈(g) |
Dimensions (mm) | Load Ratings | ||||||||
| dw | d | D | b | C | A | α | rs | Cw (KN) | Cow(KN) | ||
| LV 20/7 ZZ | 17 | 10 | 7 | 22 | 11 | 11 | 14.5 | 120 | 0.3 | 3.78 | 2.05 |
| LV 20/8 ZZ | 49 | 10 | 8 | 30 | 14 | 14 | 18.1 | 120 | 0.3 | 5.13 | 2.67 |
| LV 202-38 ZZ | 87 | 10 | 15 | 38 | 17 | 17 | 22.25 | 120 | 0.5 | 8.47 | 5.37 |
| LV 202-40 ZZ | 110 | 10 | 15 | 40 | 18 | 18 | 22 | 120 | 0.5 | 8.47 | 5.37 |
| LV 201 ZZ | 130 | 20 | 12 | 41 | 20 | 20 | 28 | 120 | 0.3 | 8.47 | 5.37 |
| LV 201-14.2RS | 107 | 14 | 12 | 39.9 | 20.1 | 18 | 24 | 100 | 0.5 | 8.9 | 5 |
| LV 202-41 ZZ | 116 | 20 | 15 | 41 | 20 | 20 | 28 | 120 | 0.5 | 8.47 | 5.37 |
| LV 203 ZZ | 325 | 20 | 17 | 58 | 25 | 25 | 35 | 120 | 0.5 | 14.66 | 9.1 |
| LV 204-57 ZZ | 290 | 30 | 20 | 57 | 22 | 22 | 41 | 120 | 0.6 | 14.66 | 9.1 |
| LV 204-58 ZZ | 310 | 30 | 20 | 58 | 25 | 25 | 41 | 120 | 0.6 | 14.66 | 9.1 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yeah, she’d love to; can you buy her a ticket?
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001/ISO14001/TS16949. If you want other CE, we can do for you.
6. How long are your bearing’s lifetime?
My friend, with your gentle care, 6 months to 36 months for different products.
7. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
8. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
9. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
10. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
