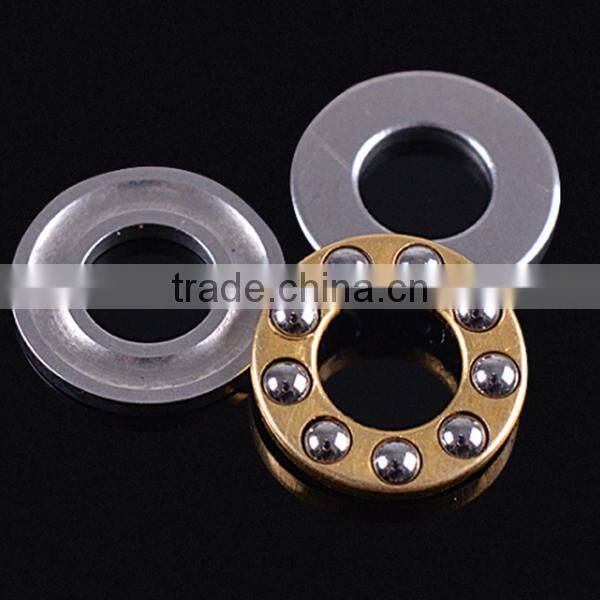

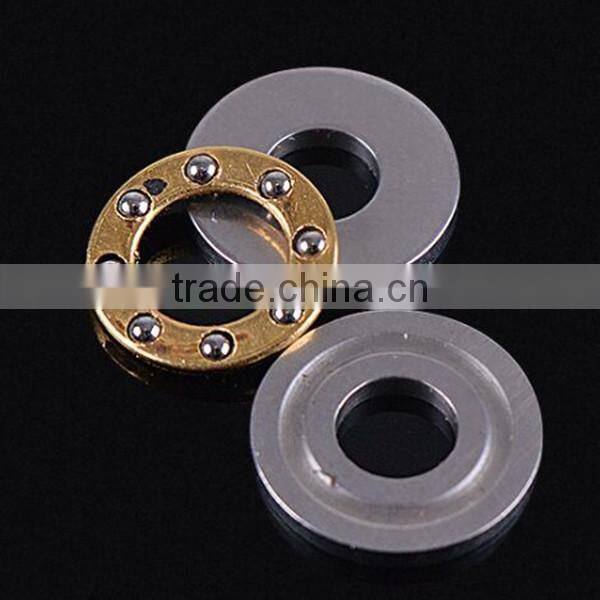

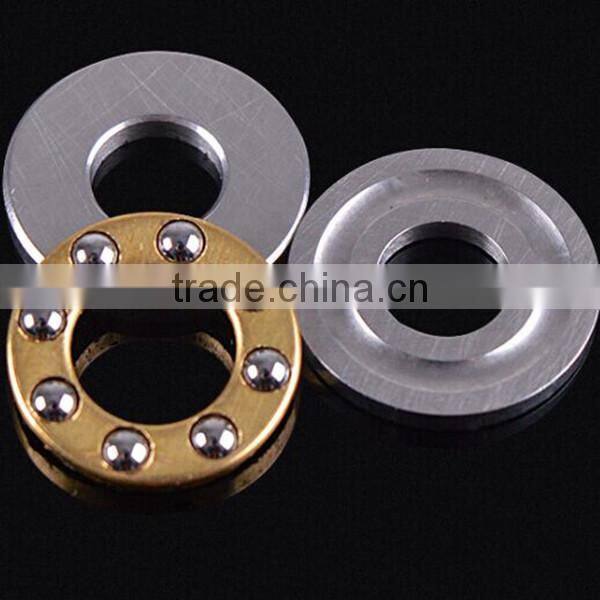

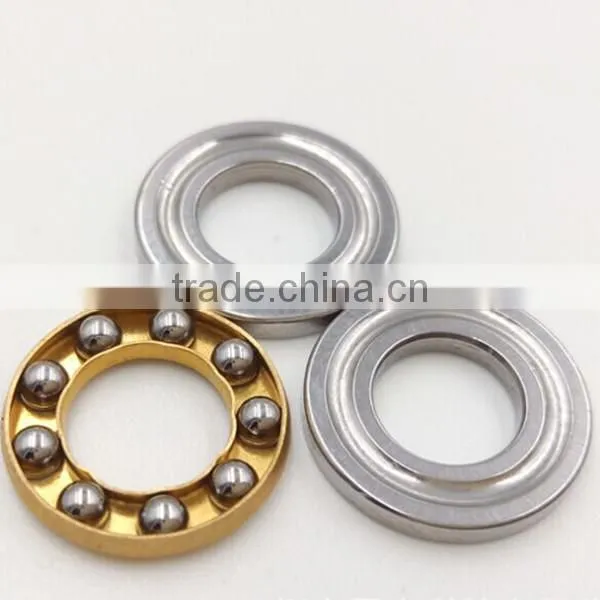

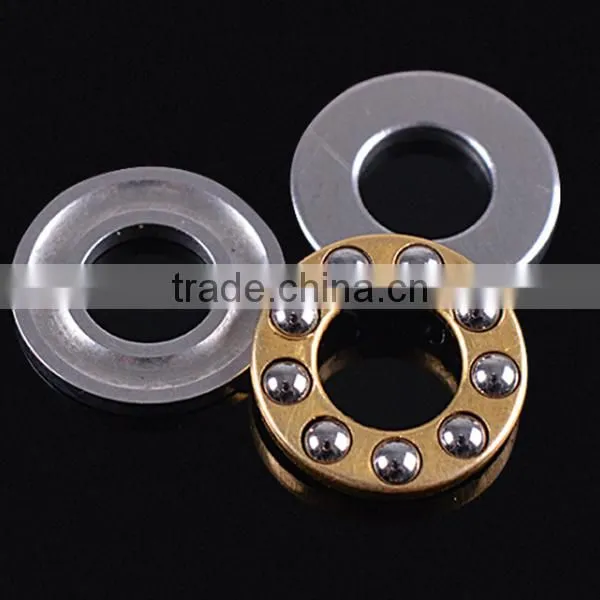

5*12*4mm miniature thrust ball bearing F5-12M
Thrust ball bearings are made as single direction or double direction that are designed to accommodate axial loads only and must not be subjected to any radial load.
Thrust ball bearings are separable with parts being the shaft washer, housing washer, ball and cage assemblies can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assembly. As their name implies, single direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only.
Double direction thrust ball bearings consist of one shaft washer, two housing washers and two ball and cage assemblies. The housing washers and ball and cage assemblies are identical to those found in single direction bearings. Double direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in both directions.
