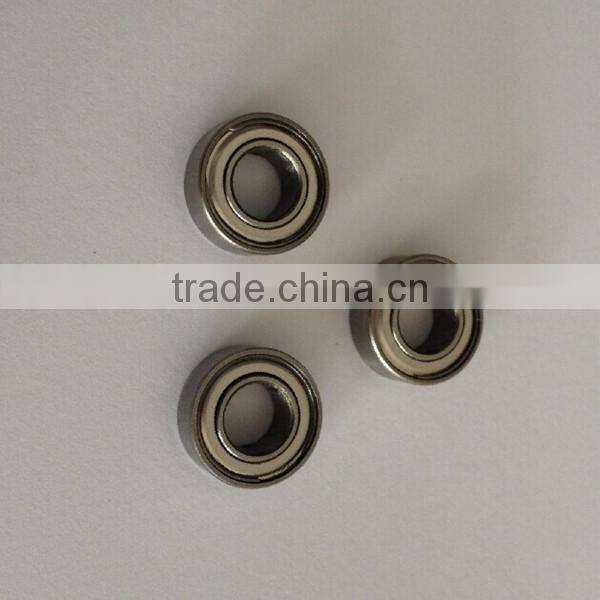

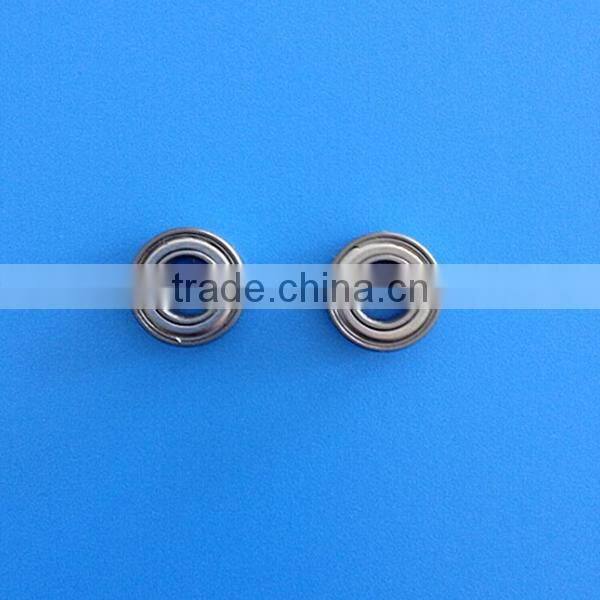

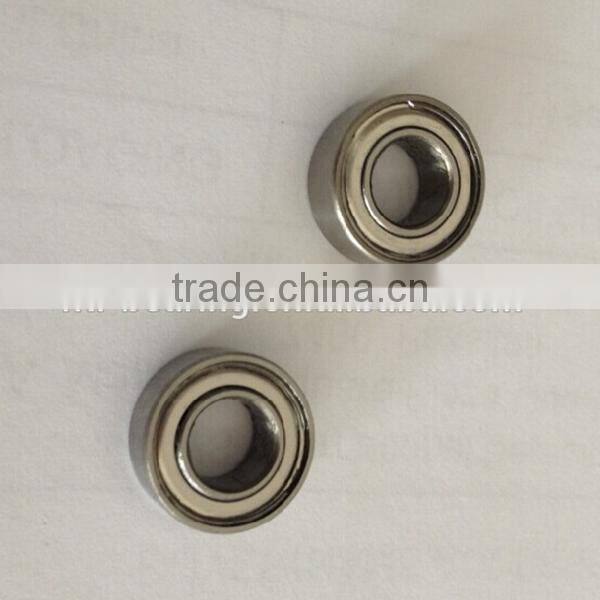

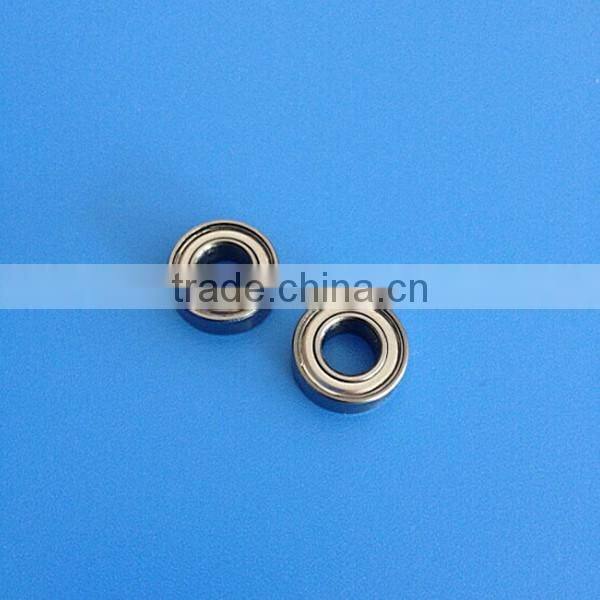

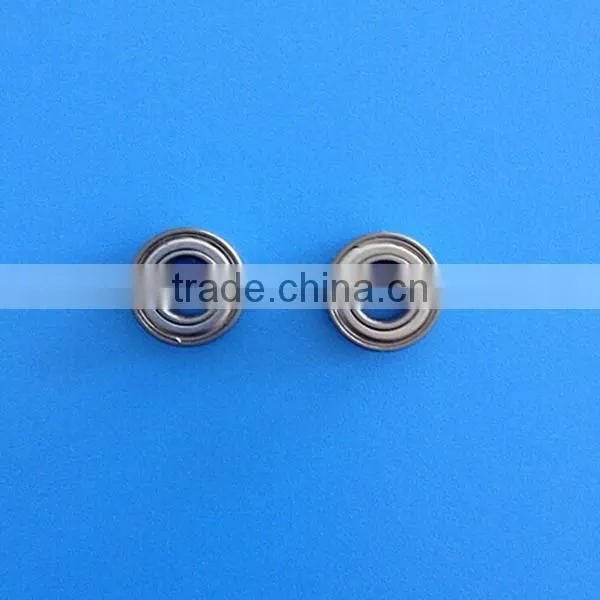

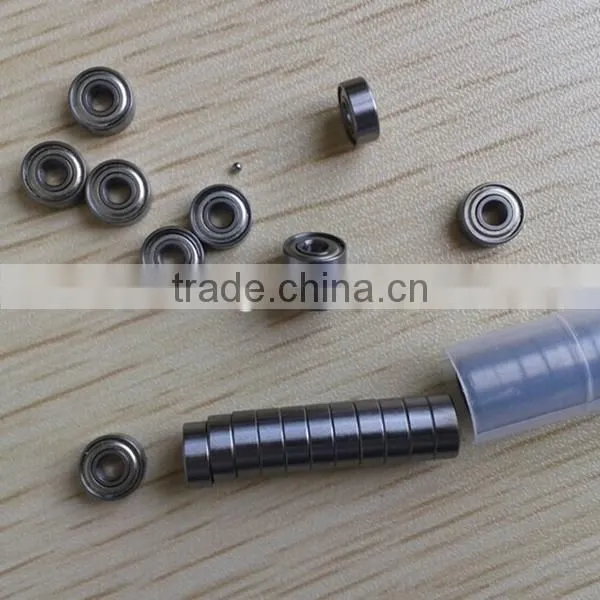

6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ

6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ thumbnail-1
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ thumbnail-2
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ thumbnail-3
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ thumbnail-4
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ thumbnail-5
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ thumbnail-6
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ photo-1
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ photo-2
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ photo-3
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ photo-4
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ photo-5
6.35*15.875*4.978 mm Miniature Ball Bearing mm R4ZZ photo-6
US$ 0.15 - 1 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
ntl
Bore Size:
6.35,
Outside Diameter:
15.875,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ntl
Bore Size 6.35,
Outside Diameter 15.875,
Model Number R4ZZ
Precision Rating P0 P6 P5 P4 P2
Seals Type ZZ
Number of Row Single Row
Place of Origin Zhejiang, China

 6.35*15.875*4.978 mm miniature ball bearing mm R4ZZ





Features:

1. Seals: Open Type, Sealed Type, Shielded Type;

2. Cage: Machined Brass Cage, Steel Cage, Plastic Cage;

3. Outer Ring: With our Without Snap Ring Groove;

4. Precision Grade: P0, P6, P5, P4;

5. Clearance Grsde: C2, C0, C3, C4, C5;

6. Vibration Grade: Z1V1, Z2V2, Z3V3.



Description:

Deep groove ball bearings are the most common Rolling bearings. Its structure is simple and easy to use. Used primarily for radial load, but when you increase the radial clearance of bearings, has a certain amount of angular contact ball bearings, can be subjected to combined radial and axial loads. When in high speed and inappropriate use of thrust ball bearings can also be subjected to purely axial loads. Compared with other types of bearing of the same size, the bearings low friction, high speed limit. But not shock resistant and should not be subjected to heavy loads



Types:

– Single row deep groove ball bearings

– Single row deep groove ball bearings with filling slots

– Stainless steel deep groove ball bearings

– Double row deep groove ball bearings

– Hybrid deep groove ball bearings

– Deep groove ball bearings for high temperature applications



Application



Deep groove ball bearings can be used for transmission, instruments, electrical machinery, transport vehicles, agricultural machinery, household appliances, internal combustion engines, construction machinery, engineering machinery.







Type     (b)     rotative
(d) (D) open zz rated rated lubricate lubricate
dynamic static  grease  grease
 load  load    oil
Cr(N)  Cor(N)
        *1000rpm
R1-4zz 1.984 6.35 2.38 3.571 284 96 67 80
R133zz 2.38 4.762 1.588 2.38 144 53 80 95
R1-5zz 2.38 7.938 2.779 3.571 552 176 60 71
R144Jzzs   6.35 2.38 2.779 311 110 67 80
R144zzs 3.175 6.35 2.38 2.779 284 96 67 80
R2-5zz   7.938 2.779 3.571 558 180 60 67
R2-6zz   9.525 2.779 3.571 640 227 53 63
R2zz   9.525 3.967 3.967 631 219 56 67
R2Azz   12.7 4.366 4.366 640 227 53 63
R155zzs 0.3967 7.938 2.779 3.175 359 150 53 63
R156zzs   7.938 2.779 3.175 359 150 53 63
R166zzs 4.762 9.525 3.175 3.175 709 272 50 60
R3zz   12.7 3.967 4.978 1301 488 43 53
R3Azz   15.875 4.978 4.978 1480 621 38 45
R168zzs   9.525 3.175 3.175 373 172 48 56
R188zz 6.35 12.7 3.175 4.762 1082 442 40 50
R4zz   15.875 4.978 4.978 1480 621 38 45
R4Azz   19.05 5.558 7.142 2336 896 36 43
R1810zzs 7.938 12.7 3.967 3.967 542 276 40 48
R6zz 9.525 22.225 5.558 7.142 3332 1422 32

38
R1038zz 9.525 15.875 3.967 3.967 815 411 28 31
R1212zz 12.7 19.05 3.967 3.967 898 524 21 26





6.35*15.875*4.978 mm miniature ball bearing mm R4ZZ6.35*15.875*4.978 mm miniature ball bearing mm R4ZZ6.35*15.875*4.978 mm miniature ball bearing mm R4ZZ6.35*15.875*4.978 mm miniature ball bearing mm R4ZZ
