Thin Section Angular Contact Ball Bearings KA030ARO
Thin Section Angular Contact Ball Bearings KA030ARO Alternative KAYDON
As usual we called it as Thin-section ball bearing when the hole diameter was more than 4 times larger than the radial sections. It can solve many design problems which the common bearings cannot complete in application. The Thin-section ball bearings produced by our PRS company totally have three kinds of structural, are divided into five series.
Thin-walled bearings are simple structure and easy to use, are the most widely application bearing, mainly used to support radial load. This kind of bearings with small friction coefficient, low noise, high speed limit, but is not able to bear impact strike, not suitable for a heavy load. According to the user's requirements, we can provide high precision (P6 ,P5), all kinds of clearance and vibration noise level (Z1 and Z2 or V1, V2) bearing.
Thin-walled bearing cage usually for steel plate stamping ribbon cage, and engineering plastic, copper solid cage also can be used. Large bearing used car system metal solid cage more. according to different use environment ,Sealed bearing can add corresponding bearing special grease.
Thin-walled deep groove ball bearing is widely used in robot, automation control mechanical and the occasions which installation space narrow and low load.
Features:
1. Seals: Open Type, Sealed Type, Shielded Type;
2. Cage: Machined Brass Cage, Steel Cage, Plastic Cage;
3. Outer Ring: With our Without Snap Ring Groove;
4. Precision Grade: P0, P6, P5, P4;
5. Clearance Grsde: C2, C0, C3, C4, C5;
6. Vibration Grade: Z1V1, Z2V2, Z3V3.

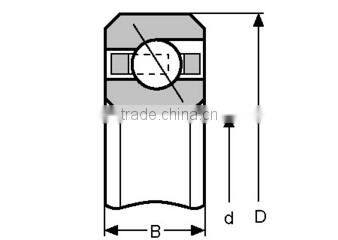

| Item No. | Dimensions ( inch ) | Approx. | Interchange | |||
| d | D | B | Wgt. Kgs | |||
| KA020ARO | 2 | 2.5 | 0.25 | 0.045 | KYA020 | CSEA020 |
| KA025ARO | 2.5 | 3 | 0.25 | 0.054 | KYA025 | CSEA025 |
| KA030ARO | 3 | 3.5 | 0.25 | 0.064 | KYA030 | CSEA030 |
| KA035ARO | 3.5 | 4 | 0.25 | 0.077 | KYA035 | CSEA035 |
| KA040ARO | 4 | 4.5 | 0.25 | 0.086 | KYA040 | CSEA040 |
| KA042ARO | 4.25 | 4.75 | 0.25 | 0.091 | KYA042 | CSEA042 |
| KA045ARO | 4.5 | 5 | 0.25 | 0.095 | KYA045 | CSEA045 |
| KA047ARO | 4.75 | 5.25 | 0.25 | 0.1 | KYA047 | CSEA047 |
| KA050ARO | 5 | 5.5 | 0.25 | 0.104 | KYA050 | CSEA050 |
| KA055ARO | 5.5 | 6 | 0.25 | 0.113 | KYA055 | CSEA055 |
| KA060ARO | 6 | 6.5 | 0.25 | 0.127 | KYA060 | CSEA060 |
| KA065ARO | 6.5 | 7 | 0.25 | 0.136 | KYA065 | CSEA065 |
| KA070ARO | 7 | 7.5 | 0.25 | 0.145 | KYA070 | CSEA070 |
| KA075ARO | 7.5 | 8 | 0.25 | 0.154 | KYA075 | CSEA075 |
| KA080ARO | 8 | 8.5 | 0.25 | 0.163 | KYA080 | CSEA080 |
| KA090ARO | 9 | 9.5 | 0.25 | 0.186 | KYA090 | CSEA090 |
| KA100ARO | 10 | 10.5 | 0.25 | 0.204 | KYA100 | CSEA100 |
| KA110ARO | 11 | 11.5 | 0.25 | 0.227 | KYA110 | CSEA110 |
| KA120ARO | 12 | 12.5 | 0.25 | 0.245 | KYA120 | CSEA120 |
if you are interested in our products, please contact me freely.
Attn:connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
