40x51.8x8mm bicycle headset bearing/bike bearing ACB518K
- 10000000 Piece / Pieces per Month
- Shanghai
- Credit Card
- thrust needle bearing and washer NTA1828 TRA1828 TRB1828
- Mini motorcycle wheel bearings/deep groove ball beairng 627ZZ
- Stainless Steel Miniature Fishing Reel Bearings SMR63
- V Groove Guide Bearing/Track Roller Bearing W4X/RM4 2RS
- 4.75x5.5x0.375 inch Thin-section bearings JU047CP0
- china factory textile bearing 3204 2rs angular contact ball bearing
Product Details
Brand Name: | NTL | Bore Size: | 40, | Outside Diameter: | 51.8, |
Model Number: | ACB518K | Precision Rating: | P0 | Seals Type: | 2RS |
Number of Row: | Single Row | Place of Origin: | Zhejiang, China |
Product Description

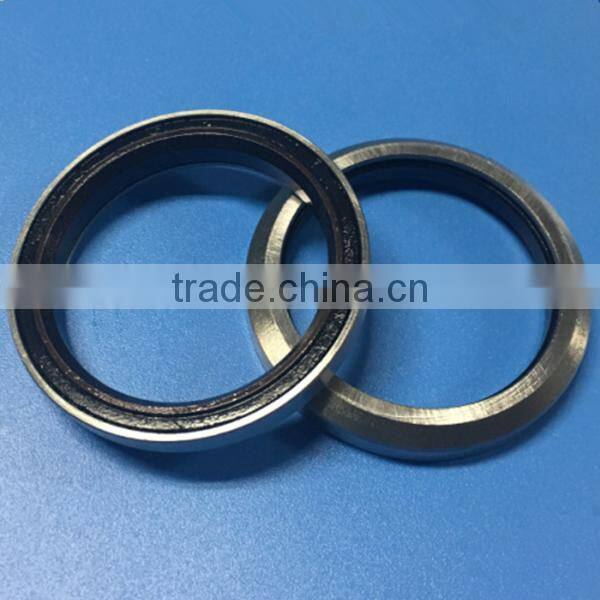

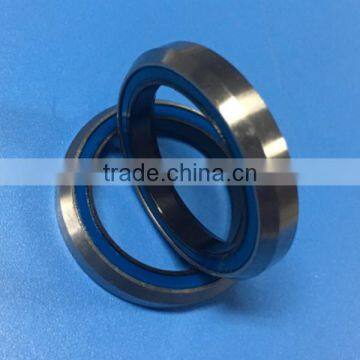

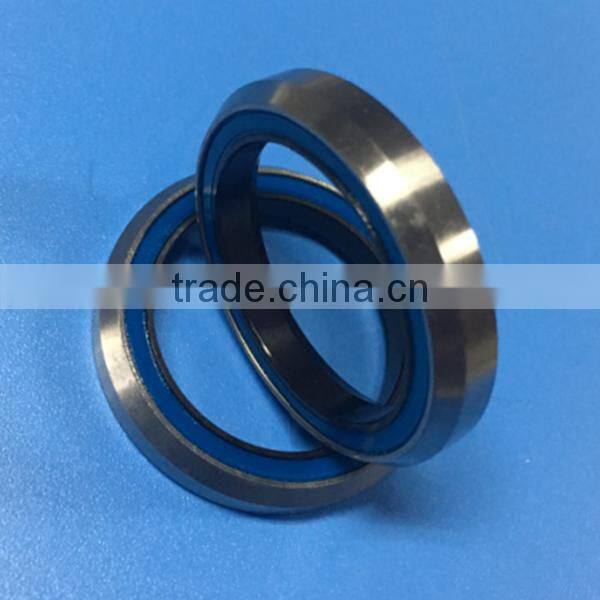

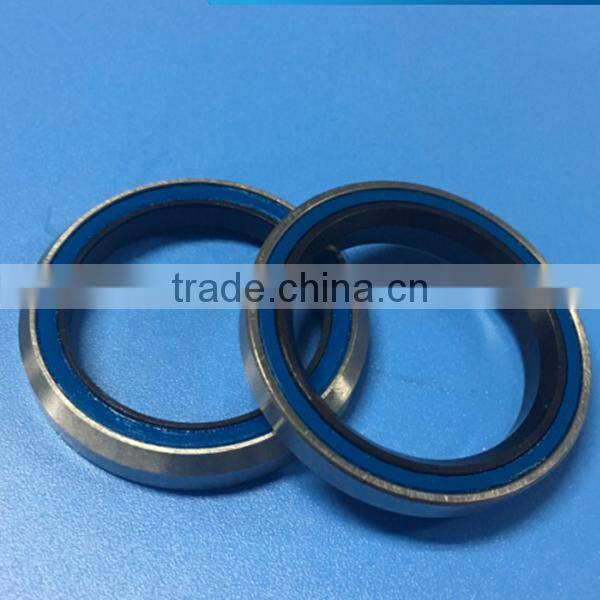

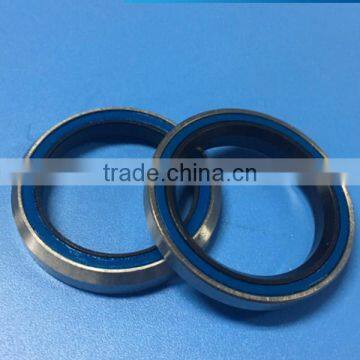

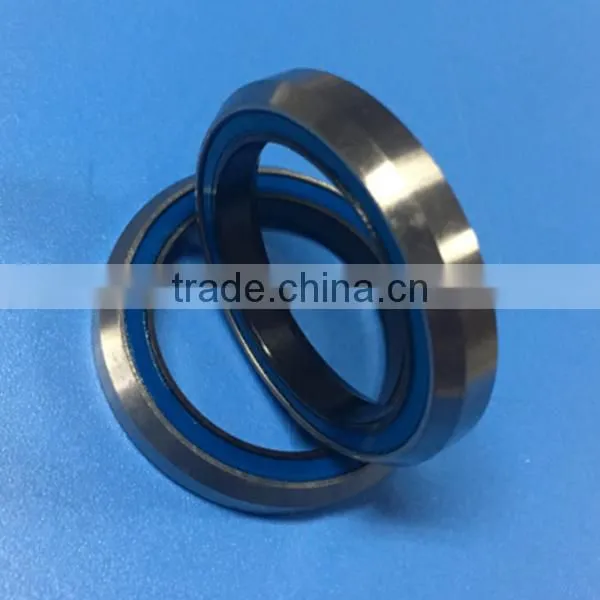

40x51.8x8mm bicycle headset bearing/bike bearing ACB518K
Bicycle headset bearing is a component of bicycle headset, which is the set of parts on a bicycle that provides a rotatable interface between the bicycle fork and the head tube of the bicycle frame itself. Bicycle headset bearings are usually ball bearings.They provide a low friction contact between the bearing cup and the steerer.
FreeRun Bearings range of headset bearings covers the majority of available bikes on the market today who use integrated/internal bearings.They are available with various different angle chamfers and usually come either as a 45/45 or 36/45.
We offer a full line of steel and ceramic bearings for almost any application.From headsets to hubs, wheels to suspension pivots, bottom brackets to jockey wheels...
Product Description
ACB518K bicycle headset sealed bearing
Inner x Outer x Depth (mm): 40x51.8x8
Angle / Chamfer (Deg): 36/45
Bearing ID: 40mm
Bearing OD: 51.8mm
Bearing Thickness: 8mm
Internal Angle: 36 Degrees
External Angle: 45 Degrees
Application:Headset
Bearing No. | ID | OD | H | Chamfer º | Qty of Seal | Ref TH ind. | Material |
ACB41K | 30.15 | 41 | 6.5 | 36°/45° | 2 | TH-873 | chrome steel |
ACB39 | 30.15 | 39 | 6.5 | 45°/45° | 2 | chrome steel | |
ACB41H7 | 30.15 | 41 | 7 | 45°/45° | 1 | chrome steel | |
ACB418 | 30.15 | 41.8 | 6.5 | 45°/45° | 2 | chrome steel | |
ACB418H7 | 30.15 | 41.8 | 7 | 45°/45° | 2 | chrome steel | |
ACB418H8 | 30.6 | 41.8 | 8 | 45°/45° | 1 | chrome steel | |
ACB418H8F | 30.6 | 41.8 | 8 | 45°/45° | 1 | TH-870 | chrome steel |
ACB44 | 30.15 | 44 | 8 | 45°/45° | 2 | chrome steel | |
ACB1645 | 40 | 52 | 7 | 45°/45° | 2 | chrome steel | |
ACB52 | 40 | 52 | 8 | 45°/45° | 2 | chrome steel | |
ACB1645/12 | 40 | 52 | 12 | 45°/45° | 1 | chrome steel | |
ACB518K | 40 | 51.8 | 8 | 36°/45° | 2 | TH-073 | chrome steel |
if you need this product, please contact me freely.
Attn:connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy.
We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields.
Our Advantages
Products
Big volume in Stock, No MOQ required
We comply with all the international standards, such as ISO9001 and TS16949 standards.
Personnel
Our sales persons are well trained to accommodate your requests and speak English for your convenience.
Our technicians and engineers have 23 years of Experience in the Bearing Industry.
Service & Quality control
We supply detailed drawings and offer whenever necessary.
We inspect every piece of bearing by ourselves before delivery.
