Sell Super Transparent Tape Slitting Machine

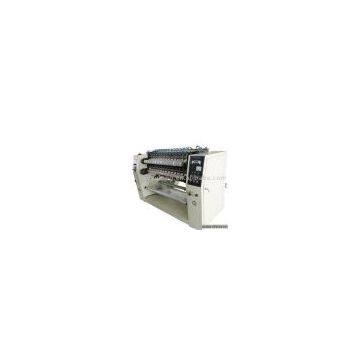

Sell Super Transparent Tape Slitting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2004
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Model No.:HY-201C
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Main technical parameters: 1) Model: 1.3m 2) Valid width: 1,300mm 3) Max. diameter of rewinding: f100mm 4) Max. diameter of unwinding: f600mm 5) Min. slitting width: 12mm 6) Diameter of paper core: f76.2mm 7) Slitting speed: 180m/min 8) Motor: 7.5HP 9) Weight: 1,700kg 10) Machine dimensions (Lx W x H): 2,520 x 1,430 x 1,760mm Features: 1) Centralized control panel: all operations continually roll. For this machine are centralized in a control panel 2) Control panel provides major functions: a) Two-step length measurement b) The labeling position is never affected by braking c) Label measurement d) Cycle counting e) Speed display f) Second start g) Shaft change at fixed point 3) Automatic shaft change: once the rewinding operation is accomplished. The machine will automatically perform shaft changes for convenient and efficient operations. The operation needs to simply cut off the silted products 4) Crowned stretch roll: the stretch roll is specially designed with a crowned shape for accurate tape tracking and proper tension control that completely eliminates tape wrinkling during extension and feeding 5) Pneumatic brake: brings the machine to an immediate halt for accurate positioning and labeling 6) Convenient jumbo roll loading and adjustment: simple operation of the fixing, lever accomplishes simple jumbo, load rolling, can be easily and quickly positional to the right and left 7) Keep noise to a minimum the jumbo rolls: pressure roll is built with a noise buffer that reduces noise to a minimum while in operation 8) Rewinding of glass paper tape 9) Tape rewinding greatly improving productivity 10) Application: suitable for OPP adhesive and glass paper tapes
