Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2002
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Model No.:
Product Origin:China
Brand Name:ccco
Price Terms:
Payment Terms:
Certification:

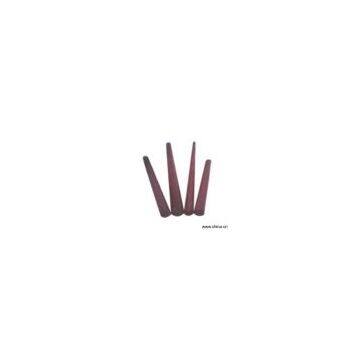

Description:Product Name: Alexandrite Laser RodsPlace of Origin: ChinaCCCO specializes in manufacturing and distributing alexandrite laser rods for medical, scientific and aesthetic use. The size of alexandrite laser crystal as grown is up to 30mm x 70mm x 250mm. Alexandrite is the leader of a class of tunable solid-state laser materials. Enhanced by several years of research and development, it features a broad wavelength tuning range of 710 - 800 nm with the capability to store and efficiently extract multi-joule pulses of energy. It is one of the most robust solid-state laser materials available with a thermal shock resistance five times that of Nd:YAG. Alexandrite 's unique combination of properties offer application in such areas as dermatology, lithotripsy, spectroscopy, atmospheric lidar, testing of fiber optics, photodetectors, materials processing, pumping of dye lasers, non-linear optics studies and annealing of semiconductors. Specifications: 1) Diameter (tolerance): 3 - 10mm (+0.01/-0.02mm) 2) Length (tolerance): 50 - 200mm (+2/-0.5mm) 3) Chamfer: 45±5 (depth 0.2±0.1mm) 4) Perpendicularity: <5 arc-minutes 5) Parallelism: <60 arc-seconds 6) Rod end face flatness: <1/10 wave (at 632nm) 7) Rod end finish: 10 - 5 per MIL-O-13830A 8) Fiavefront distortion: <0.2 wave/cm single-pass at 780nm 9) Rod end coating: e-beam evaporated AR-AR<0.3% at selected="selected" wavelength 10) Cr++ concentration: standard 0.14% special order 0.03 - 1.0% 11) Optical length: 0.001 - 0.003cm-1
Product Origin:China
Brand Name:ccco
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Alexandrite Laser RodsPlace of Origin: ChinaCCCO specializes in manufacturing and distributing alexandrite laser rods for medical, scientific and aesthetic use. The size of alexandrite laser crystal as grown is up to 30mm x 70mm x 250mm. Alexandrite is the leader of a class of tunable solid-state laser materials. Enhanced by several years of research and development, it features a broad wavelength tuning range of 710 - 800 nm with the capability to store and efficiently extract multi-joule pulses of energy. It is one of the most robust solid-state laser materials available with a thermal shock resistance five times that of Nd:YAG. Alexandrite 's unique combination of properties offer application in such areas as dermatology, lithotripsy, spectroscopy, atmospheric lidar, testing of fiber optics, photodetectors, materials processing, pumping of dye lasers, non-linear optics studies and annealing of semiconductors. Specifications: 1) Diameter (tolerance): 3 - 10mm (+0.01/-0.02mm) 2) Length (tolerance): 50 - 200mm (+2/-0.5mm) 3) Chamfer: 45±5 (depth 0.2±0.1mm) 4) Perpendicularity: <5 arc-minutes 5) Parallelism: <60 arc-seconds 6) Rod end face flatness: <1/10 wave (at 632nm) 7) Rod end finish: 10 - 5 per MIL-O-13830A 8) Fiavefront distortion: <0.2 wave/cm single-pass at 780nm 9) Rod end coating: e-beam evaporated AR-AR<0.3% at selected="selected" wavelength 10) Cr++ concentration: standard 0.14% special order 0.03 - 1.0% 11) Optical length: 0.001 - 0.003cm-1
