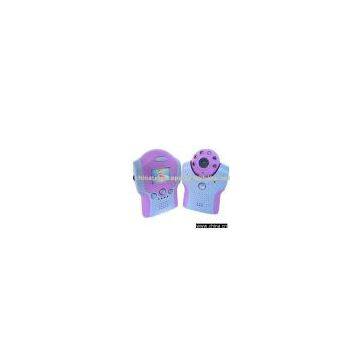

Sell Toy Monitor

Model No.:HL-215C/315R
Product Origin:China
Brand Name:
Price Terms:FOB Shanghai, CIF
Payment Terms:T/T, L/C at sight
Certification:ISO9001
Description:Camera specifications: Frequency: ISM 2,400 - 2,483MHz Imaging sensor: 1/3 inches OMNI-vision color CMOS Horizontal resolution: 380 TV lines CMOS total pixels: 628 x 582 (PAL) / 510 x 492 (NTSC) View angles: 62 degrees Minimum illumination: 1.5 lux / F1.5 Gain control: automatic Transmission power: 10mW Consumption current: 80mA Modulation mode: FM Bandwidth: 18m Operating range: 30m / 100m (obstructed / unobstructed) Power: DC 8V or 9V battery Operating temperature: -10 ~ +40°C Operating humidity: 85% RH Dimensions (W x L x H): 23 x 23 x 23mm Weight: 20g Receiver specifications: Frequency: ISM 2,400 - 2,483MHz Antenna: OMNI-directional antenna Channel: 1-4 (flip-type switch) Intermediate frequency: 480MHz Frequency stabilization: +/-100kHz Demodulation mode: FM Receiving sensitivity: 85dBm Video output: 1Vp-p at 75 ohms, S/N>38dB Audio output: 1Vp-p at 600 ohms Power: DC 9V Operating temperature: -10 ~ +40°C Operating humidity: 85% RH Dimensions (W x L x H): 110 x 80 x 20mm Weight: 130g Standard package content: - 2.4GHz, wireless color camera with built-in microphone - 2.4GHZ wireless flip-type 4-channel AV receiver - Antenna for receiver - AV cable - 8V power adaptor for camera - 9V power adaptor for receiver - 9V battery with battery clip - Swivel bracket for camera Inner packing: 1 unit/gift box Gift box size: 20.2 x 8 x 18.5cm Outer packing: 20 boxes/ctn Carton box size: 42 x 38 x 42cm Net weight: 16kg Gross weight: 17kg
