Micro Motion 3500 and 3700 Controller and Transmitter

Introduction

With combined Coriolis transmitter functions and PLC capabilities, the Micro Motion Series 3000 is built for industy-focused solutions, including net oil computer, enhanced density, custody transfer and marine fuel bunkering solutions.

Specifications

Housing

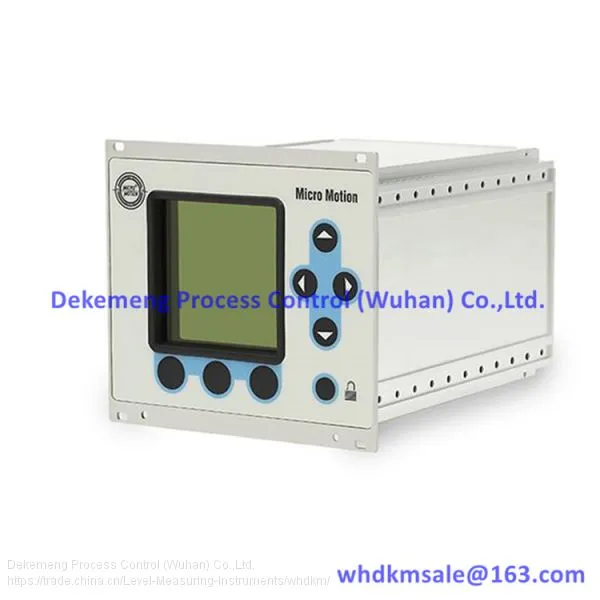

3500 Rack:

19-inch (486.2 mm) rack-mount housing meets DIN standard 41494 and IEC 297-3

3500 Panel:

Front panel with bezel is rated NEMA 4X (IP65) Front panel is aluminum with laminate overlay

Housing

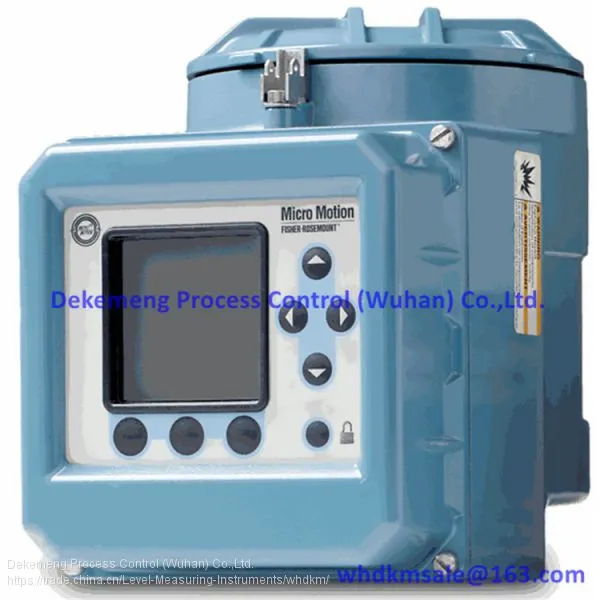

3700: Housing is epoxy painted aluminum, bracket is 304 SS

NEMA 4X (CSA) and IP66/IP67 (ATEX/IECEx)

Weight

3500: Maximum 3.5 lb (1.6 kg), excluding prepared cables

3700: 19 lb (8.6 k)

3500/3700 Interface

Display:

Backlit LCD, 128 x 128 pixel, bit map Adjustable contrast Non-glare, chemical-resistant acrylic lens

3500/3700 Interface

Interface:

(keypad membrane switch)

Large push buttons with tactile feedback

Software-defined function keys

Chemical-resistant polyester

Features

Decrease your plant's labor, maintenance and operating costs with transmitter functions and PLC capabilities

Increase efficiency, accelerate throughput and improve product quality

Eliminate the need for external tools with full configuration capabilities

Improve interaction with a large, programmable display and descriptive alarms for easy setup, control and operation

Maximize uptime and process consistency with MVD technology that speeds response and enables multivariable measurement
