Help CenterSell Micro Multi-Purpose Machine
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2002
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Model No.:MT9510
Product Origin:China
Brand Name:XENDOLL
Price Terms:
Payment Terms:
Certification:

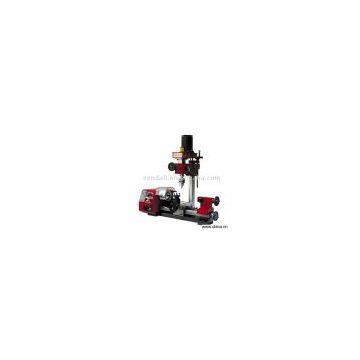

Description:Product Name: Micro Multi-Purpose MachineModel Number: MT9510Place of Origin: ChinaFeature: 1) Safety switch 2) Variable speed 3) Four positions turret post 4) Complete set of change gear 5) Highly accurate Specifications: Cutting: 1) Process exact: 0.02mm 2) Swing over bed: 140mm 3) Distance between centers: 250mm 4) Spindle taper: MT#2 5) Tailstock taper: MT#1 6) Spindle speed: 100 - 2,000rpm 7) Range of threads: a) Metric: 0.5 - 1.25mm (5 thread pitches) b) Imperial: 16 - 24TPI (5 thread pitches) 8) Output power: 150W Drilling and milling: 1) Max. drilling / milling capacity: 10mm 2) Travel of drilling / milling spindle: 30mm 3) Drilling / milling spindle speed: 100 - 1,300rpm 4) T-slot: 8mm 5) Output power: 150W Outer packing: Carton dimensions: 700 x 500 x 400mm N.W.: 40kg G.W.: 45kg
Product Origin:China
Brand Name:XENDOLL
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Micro Multi-Purpose MachineModel Number: MT9510Place of Origin: ChinaFeature: 1) Safety switch 2) Variable speed 3) Four positions turret post 4) Complete set of change gear 5) Highly accurate Specifications: Cutting: 1) Process exact: 0.02mm 2) Swing over bed: 140mm 3) Distance between centers: 250mm 4) Spindle taper: MT#2 5) Tailstock taper: MT#1 6) Spindle speed: 100 - 2,000rpm 7) Range of threads: a) Metric: 0.5 - 1.25mm (5 thread pitches) b) Imperial: 16 - 24TPI (5 thread pitches) 8) Output power: 150W Drilling and milling: 1) Max. drilling / milling capacity: 10mm 2) Travel of drilling / milling spindle: 30mm 3) Drilling / milling spindle speed: 100 - 1,300rpm 4) T-slot: 8mm 5) Output power: 150W Outer packing: Carton dimensions: 700 x 500 x 400mm N.W.: 40kg G.W.: 45kg
