Single Girder Gantry Crane 5 Ton ,Electric Hoist by Steel Wire Rope

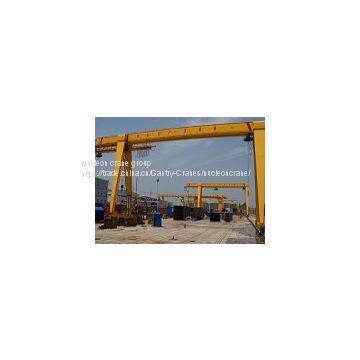

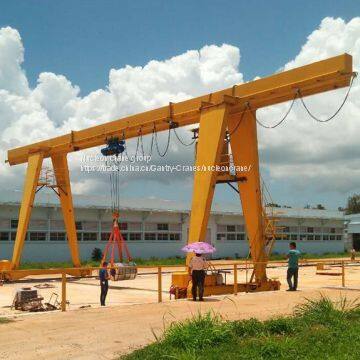

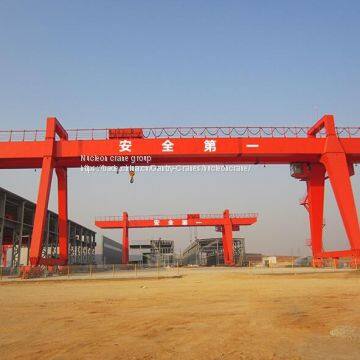

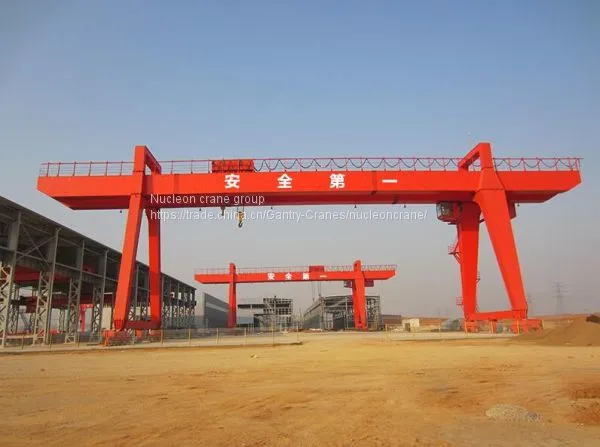

Single girder gantry crane is a kind of track traveling midlight type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.

MHLP type single girder gantry crane is Ltype partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.

Features:

Simple and compact structure, steady performance.

Easy to install and high efficiency.

Overload, low voltage protective device.

Pendent control and remote control.

Easy maintenance.

specification:

Lifting capacity is 5ton to 32ton;

Span is 12m to 30m;

Lifting height is 6m, 9m, 12m, etc;

Working duty is A5;

Working temperature is -20°C to + 50°C.

Usage(Application):

MH gantry crane is widely used in varied industries, like material stocks area, cement plant, granite industry, engineering industry, construction industry, shipping yards, road sides, mines, steel plant, concrete girder yard, etc.

 Drawing：

Package:

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;

2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion during transportation.

Delivery:

1. If the size of whole crane are suitable for container ship, usually by container;

2. If the size is too big, usually by bulk ship or by container after truncation;

3. Freight ways are based on reducing cost for you!
