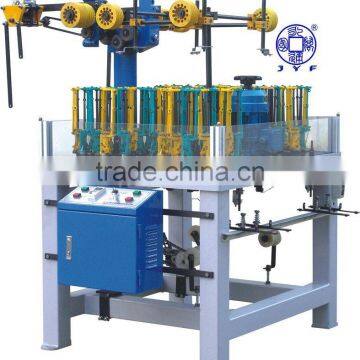

High Speed Rope Braiding Machine
US$ 2,000 - 5,000
/ Set
1 Set(Min. Order)
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Product Type | Rope | |
| Type | Circular | Production Capacity | 1000 | |
| Place of Origin | Zhejiang, China | Brand Name | JYF | |
| Model Number | 16*4 | Power(W) | 1000w | |
| Knitting Style | Flat | Knitting Method | Double | |
| Computerized | No | Weight | 600kgs | |
| Dimension(L*W*H) | 1.2*1.2*1.8 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
High Speed Rope Braiding Machine, 1-high speed,2-big size bobbin 3-stable running 4-easy operationB series of high speed braiding machine ,uses in producing each kinds of circle or the hollow flat inelasticity and the tension rope belt.This machine have excellent designs,high quality,high velocity and high grade.The electrical motor adopts the frequency conversion contral,can infinite speed variation,with overload protection.And the spindles' contruction is reasonable,replacing the yarn cop and adjusting the elasticity is more quick and convenient.
MODEL | B8/4 | B13/4 | B16/4 | B17/4 | B24/2 | B 25/4 | B32/2 | B 40/1 | B48/1 |
HEAD | 4 | 4 | 4 | 4 | 2 | 4 | 2 | 1 | 1 |
SPINDLE | 8 | 13 | 16 | 17 | 24 | 25 | 32 | 40 | 48 |
Max.R.P.M. | 380 | 380 | 380 | 380 | 360 | 360 | 320 | 300 | 300 |
Motor Power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
V | 220Vsingle-phase380V3phase | ||||||||
