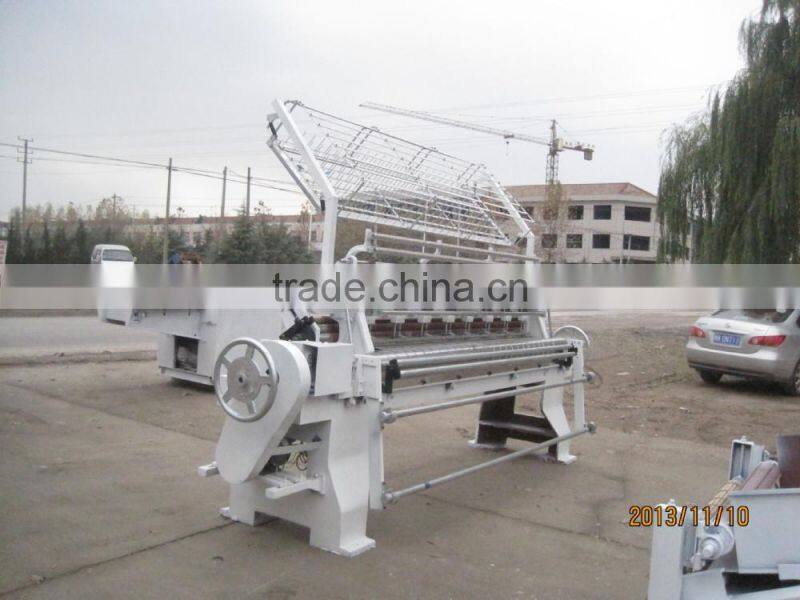

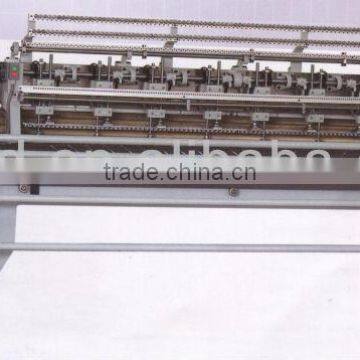

Quilting Machine
Usage and Features
1.The speed of main shaft has been raised and the work efficiency has been increased.
2.and the shuttle core is two times larger than that of small shuttle
3.The system has the function of testing, so as to have convenient maintenance.
4.Patterns have the function of rotation and overturn.
5.Drive:using the principle of alternating current servo control and without resonance region and small noisy. Meanwhile, it has the protection function of short-circuit, over-voltage, under voltage and overheating, and with high reliability.
6.Frequency convertor: stable performance, high precision and shortcircuit protection and OCP
(over-current-protection)
7.Handpiece: fast moving speed of lifting needle, which can stop running in fixing position and
the height of presser foot can be adjusted.
Main parameter of Quilting Machine
| M/C Dimension | 5100*1600*2500mm |
| Quilting Width | 2485 |
| Needle Row Space | 50.8,76.2,127(5'') 76.2,76.2,152.4(6'') |
| Needle Space | 25.4 |
| X Distance | 450 |
| Quilting Thickness | <=80 |
| Production speed | 60~230m/h |
| Needle model | 24/180 23/160 22/140 21/130 |
| Main Shaft Revolving Speed | 200~900r/min |
| Power | 7kw |
| Voltage | 380V/50HZ 220V/60HZ |
| Weight | 4000kg |
