Specifications

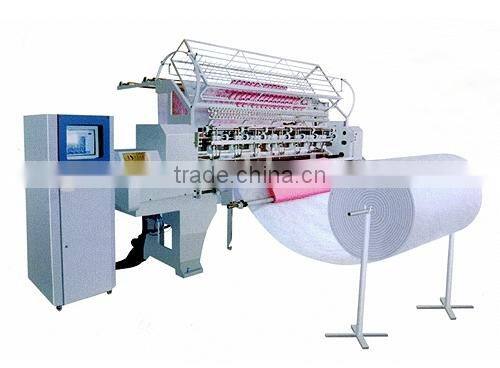

HFJ-25B Computerized quilting machinebeautiful design
excellent work ship
output materials is high
Computerized quilting machine
Performance
1.automatic quilting accroding the patterns.
2.The pressure foot height can be adjusted according to the material thickness, the thickness of up to 70mm.
3.Strong professional Quilting computer functions, such as synchronized zoom, needle step size selection, trimming, etc..
4.Figure has the production quantity, cutting length can be set in advance in computer, transverse cutting and vertical cutting, a molding products, can be directly suture edge.
5.Any-pattern Auto-Quilting,Equal-Distance Needle Quilting.
6. Easy modification operation of needle distance and speed.
7. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.
8. the needle automatically stops at high position when the machine stops.
9. the machine stops when any broken thread is automatically detected.
10. Quilting condition and operation indication are shown in real time.
11. It automatically returns to original point.
12. It has the function of pattern tracing to make the needle position quickly.
13.It has the function of pattern browsing.
14.It has the function of work-piece and time statistics.
15.Through pattern side setting up ,it can automatically enlarge or reduce patterns.
Feature of the machine
1.The main shaft speed has been raised and work effciency has been increased.
2.Application of large rotation shuttle while the shuttle core is two times larger than that of small shuttle.
3.The system has testing function so as to have convenient maintenance.
4.Graphics has the function of rotation and overtum.
5.Sliding axle case application integration structure, the machining center production.
6.Paint application car lacquer barbecue processing, beautiful appearance.
7.Guide assembly with special platform, accuracy requirement not more than 0.05 mm.
7.Beyond-boundary protection function.
Specifications
Head:single head,single needle,double locking type line mark,big hook.
Quilting thickness:about1200/m2
Quilting speed: 2000n/min
Needle:18-22#
Needle space:2-12mm
Voltage:22V 50HZ 1.5kw
Max quilt size:WXL2400*2600mm
Max needle drop size:WXL2200*2400mm
Machine size:LXW5200*3000mm
