Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Knitting Machine > COMPUTER KNITTING MACHINE

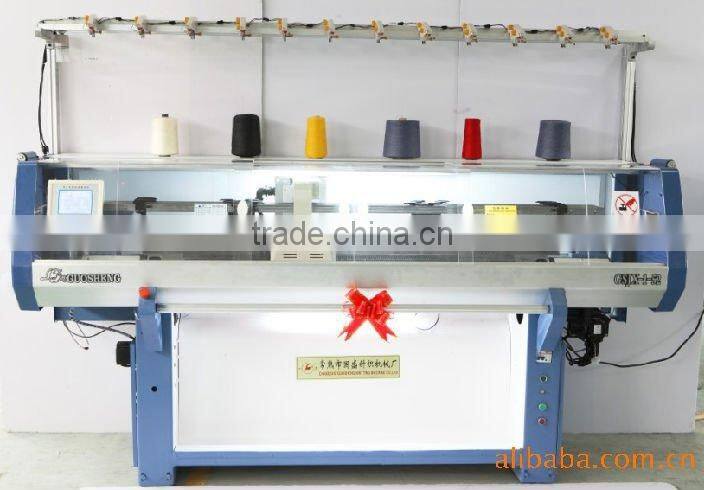

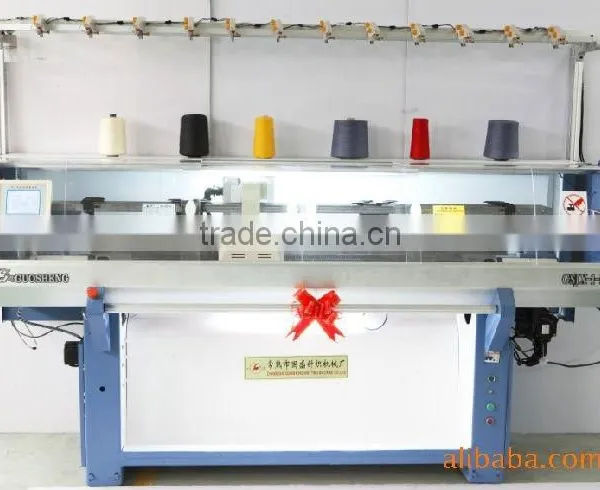

COMPUTER KNITTING MACHINE

Name: COMPUTER KNITTING MACHINE
Brand: luke
SKU: 145105896
Availability: InStock

Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Product Type:

Sweater

Type:

Jacquard

Contact Supplier Request Quote Chat Now

Guangfeng Xiaoni Trading Im. And Ex. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Product Type Sweater

Type Jacquard

Place of Origin Jiangsu, China

Brand Name luke

Model Number GSJX-1-52

Knitting Method Single

Computerized Yes

Specifications

computerized knitting machine
1.Knitting width :44' 52'
2.Rolla:Top Rolla
3.System :Single-way,single system

DIMENSIONS
Dimentions:26007001850mm	Net weight 750kg

TECHNICAL PARAMETER
Type	GSJX-1-52
Knitting width	44’ 52’
Knitting system	Single system
Knitting function	Mixed weaving can be made,such as loop formation,tucking,welt floatation,thread crossing,etc.
Texture adjustment	Cable,fashion mark,eyelet,plain weave,lockstitch,single-side jacquard,two-side jacquard(maximum 6 colors in the same line),embossing and dented space and high speed.
Selecting Needles	Eight-section needle selector made of special electromagnet chooses needles for jacquard efficiently,which is suit able for weaving of narrow needle space and high speed.
Yarn feeder	The machine is equipped with six yarm feeders controlled by computer.
Knitting speed	Computer controlled eight-section high speed,max 1.2meter/second,and speed being adjusted slightly by computer.
Driving Mode	Computer controlled Acmotor,ensuring steady operations with great torque under either high speed or low speed.
Density control	64-section electronically controlled,easy for slight adjustment
Needle displacement	Controlled by Acmotor,needle by moving range up to 1/4-8 needles,with function of accurate slight adjustment.
Rolling Unit	Controlled by computer programs and motor,rolling quantity is 64-section electronically controlled and each section can be slightly adjusted.
Protection System	In the operation,the machine will be automatically shut upon yarn-cutting,knot,yarn miss
Control System	1,Screen display:LCD,USB input,32M memory,latest memory of 1G which can keep various files and can be outputted according to production needs.2,Monitoring view:display of various working parameters, and be adjusted according to the machine operations,optimal convenience for operations.3,Pattern system:easy to understand,convenient for update,free configuration.
Power-off Protection	Support the protection of working site from sudden power interruption,and continue knitting after power returning.
Safety Prote	Equipped with electrical safety protection system, automaticly checking the status of voltage,automaticly turning turning the electricity off after stopping.
