Help Center2 in 1 Digital Auto-ranging 0-470 Capacitor ESR Meter Capacitance Tester Internal Resistance Measurement With SMD Tes
Related Products
-
800W 220-240V Professional Household Electric Flour Egg Blender Milk-shake Stirring Cooking Machine Kitchen Stand Mixer Dough MiUS$ 81 - 81MOQ: 20 Pieces -
Wireless AV Transmission to Phone WIFI Signal Transmitter for FPV Aerial PhotographyUS$ 49 - 49MOQ: 20 Pieces
-
45g Super Lightweight Mini Pocket Outdoor Cooking Burner Folding Camping Gas Stove 3000WUS$ 7 - 7MOQ: 20 Pieces
-
Magicscan 900dpi Portable Scanner Sheetfed DetachableUS$ 19 - 22MOQ: 500 Pieces
-
KST-900 Bluetooth Headset Wireless Headphone Stereo Headphones New HeadphonesUS$ 7 - 7MOQ: 1000 Pieces
Features:
Auto-ranging testing, digital LCD backlight display, easy for readings.
Can test capacitor ESR, capacitance and low resistance with high accuracy.
Using constant current charging to calculate the capacitance and ESR.
4 ranges of charging current from 100uA to 50mA.
ESR measurement: 0-470Ω, capacitance range is 0μF-470mF.
Can measure the capacitor is bad/damaged or good in condition.
Built-in 3.7V 1200mAh rechargeable lithium ion battery, with 5V micro USB interface.
Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
It doesn't support IN CIRCUIT Testing.
This meter can measure low resistance, but can't be used for wire wound resistor.
Specifications:
1.Display: Digital LCD
2.Accuracy: Up to 1% (detail on above table)
3.High Resolution: 5 digit
4.Measuring Voltage: <0.8V
5.Clamping Voltage: ~1.25V (open voltage)
6.Battery: Built-in 3.7V 1200mAh Rechargeable Lithium-ion Battery
7.External Power: 5V Micro USB
8.Operating Current 0.02A (Average)
9.Item Size: 145 * 80 * 30mm / 5.7 * 3.15 * 1.18in
10.Item Weight: 160g / 5.67oz
11.Package Size: 16 * 9 * 5cm / 6.3 * 3.54 * 1.97in
12.Package Weight: 250g / 8.83oz

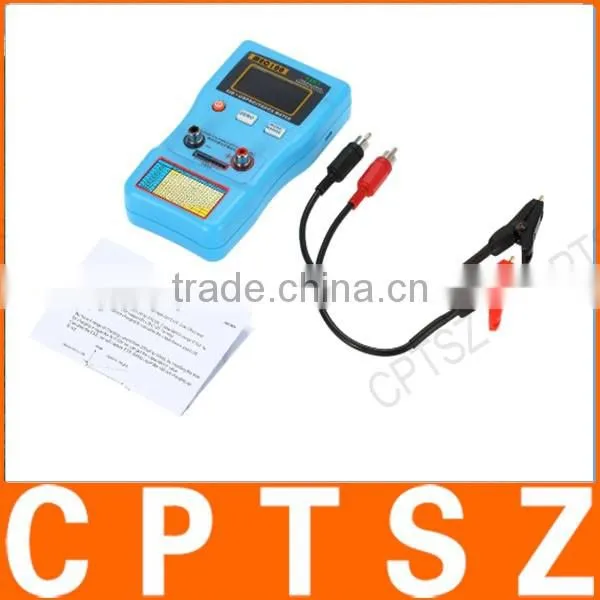

Package List:
1 * ESR Meter
1 * Pair of SMD Test Clips
1 * User Manual (English)
