For home use vacuum conveyor portable mustard seed suction machine

Pneumatic conveying system small suction machine for medicine podwer

Product Description

Pneumatic conveying system Small suction machine for medicine podwer is a kind of a conveyor that vacuum generator as a vacuum source. Use the vacuum feeding machine can mix material from the container directly into the machine, packaging machine, vibrating screen, filling machine, grinder and other equipment.The machine reduces the labor intensity of the workers, eliminates the dust pollution, and ensures the production meets the GMP requirements.At present, it is the most advanced, ideal and perfect vacuum conveying equipment in China.

Working Principle

• 1. When pressing the "on/off" button, the compressed air enters the vacuum generator, while the hopper door is shut down by the cylinder and the hopper produces a vacuum.The vacuum machine creates a stream of air in a vacuum,and under the air flow,the material by soft tube transports into the vacuum hopper.

•


• 2. After a certain time (feeding time, adjustable) compressed air have been closed down, pneumatic vacuum pump cannot produce vacuum, at the same time the feeding hopper door in cylinder driven by open, vacuum feeding machine vacuum disappeared, material automatically from feeding door into the feeding device, and the compressed air blowback to the filter cleans automatically.

•


• 3. After a certain time (adjustable), the compressed air restarts.The vacuum generators produce the vacuum and the feeding door closed.Then the machine will load material again,and the material is continuously sent into the feeding device.


• 4. For the vacuum feeding machine with the material position control, the material in the hopper of the receiving equipment can complete the automatic feeding through the material position controller.When the material in the receiving hopper device is higher than that of a certain position, the vacuum machine stops adding material;When the material bit below a certain position, the vacuum feeding machine automatically starts to complete the feeding of the material.

Product Advantages

•


• 1. Materials conforming to GMP standard


• 2. Easy to operate,energy saving,no-blocking

• 3. Seal conveying, no dust leakage.

• 4. Using curved surface seal to prevent material leakage


• 5. Using the s-type curved surface to turn over, easy to install and remove and clean quickly


•


Product Technology

Product Applicant

This machine can be used in many fields, such as medicine, food, additives, chemicals, plastics, dyes, cosmetics, etc.
This machine is suitable for many kinds of materials, such as spices,seasoning(solid), adsorbent, catalyst, graphite, blush, polyethylene, etc.

Machine Clean

• Before cleaning,the machine should be taken apart.


• ◇Not using water washing:Vacuum generator,air bag,cover(connected) and filter.

•           Power on the filter tube with compressed air cleaning.

• ◇Using water washing:Vacuum hopper

Company Profile

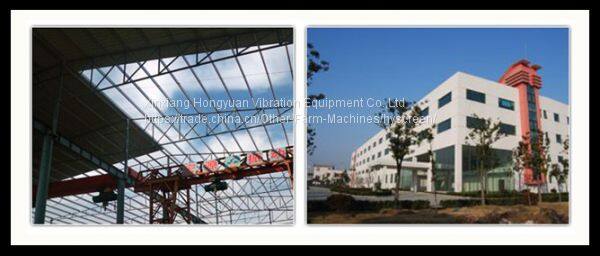

Xinxiang Hongyuan Vibration Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China.
