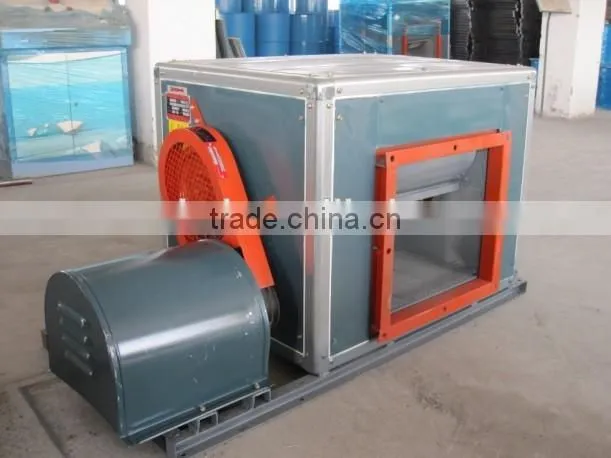

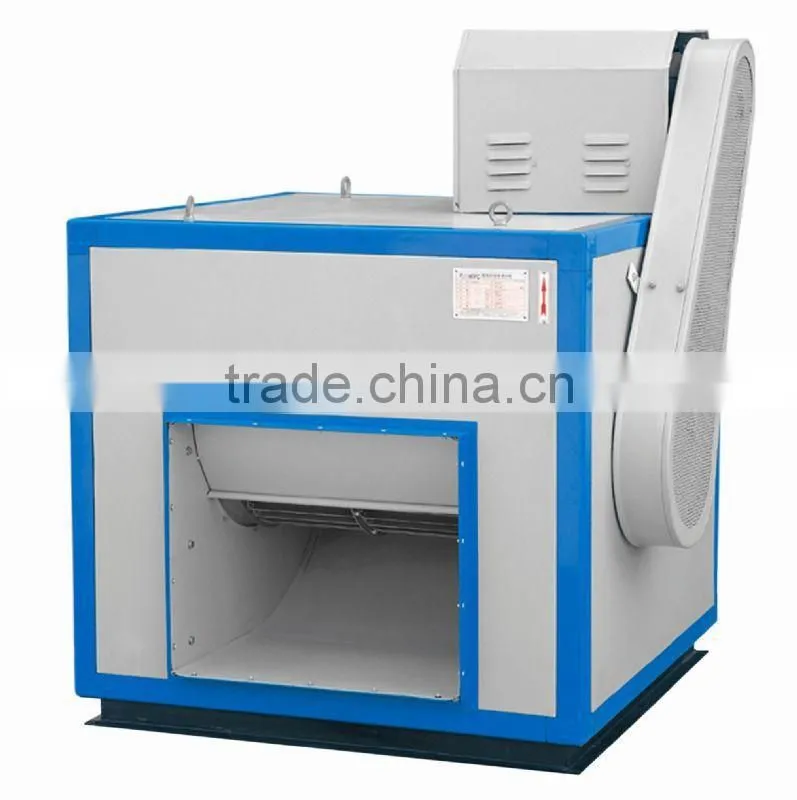

HTF#Fire Smoke Exhaust Ventilation Cabinet Low Noise Centrifugal Fan, Ventilation Fan
US$ 200 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Free Standing
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HTF Ventilation Pipe High Temperature Fire Smoke Exhaust Fan Ventilation, Exhaust Ventilation Equipment, Ventilation FanUS$ 100 - 200MOQ: 1 Set -
General Residential Equipment Air Filter and Purify Air Cooling Ventilation FanUS$ 95 - 1,000MOQ: 50 Pieces
-
Toilet, Kitchen Ventilation, Exhaust and Ventilation Fan,small Ventilation FanUS$ 2 - 10MOQ: 50 Pieces
-
Low Noise Industrial Piping, Plant Using the Axial Fan, Ventilation FanUS$ 20 - 112MOQ: 100 Pieces
-
New Solar Constant Temperature Ventilator, the Ventilation FanUS$ 92 - 105MOQ: 50 Pieces
Electric Current Type
AC
Blade Material
Stainless Steel
Mounting
Free Standing
Place of Origin
Zhejiang, China
Brand Name
SUBEI
Model Number
HTFC
Power
0.37~55KW
Voltage
220V/380V/12V /24V
Air Volume
1229-90000m3/h
Speed
480~1450r/m
Certification
CCC, CE, ROHS, UL
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
- HY-HTFC Cabinet centrifugal fan of fire protection and ventilation with low noise is developed by our company which is one camera dual use, high efficiency and low noise. It has many obvious advantages, such as: low noise, high performance of high temperature resistance, novel and compact structure, small shaking, light weight, easy installation and maintenance, and so on.
- It is widely used in these sites where need exhaust smoke of fire protection and kitchen, ventilation and air exchange (Lifting or Ground mounted), such as: Hotel, Restaurant, Auditorium, Movie theater, Basement, Industrial and mining enterprises, Office building, and so on. It can supply air and exhaust air. It had been good market all over the country and get well received by user. It is the ideal product of exhaust smoke of fire protection, ventilation and air exchange for high-rise buildings now.

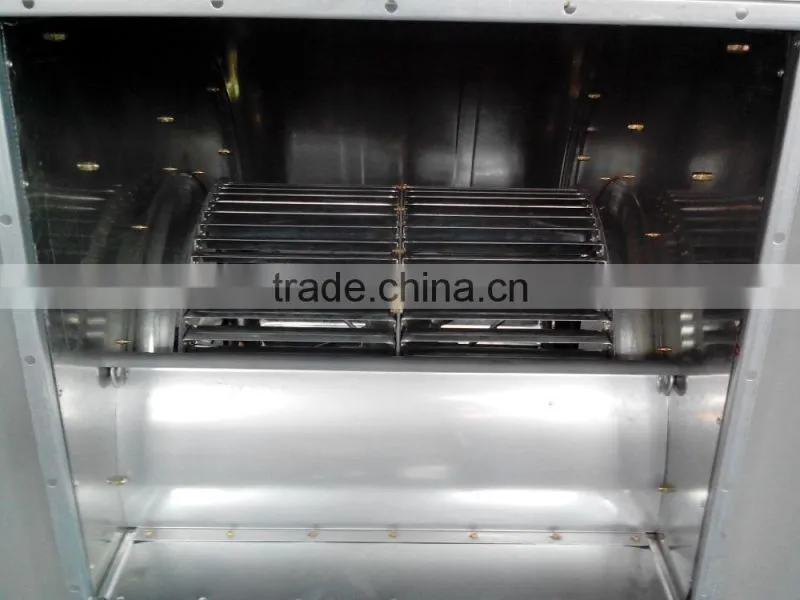

- This series product has two type of Type A and Type B. The motor installed in the outer of box is called Type A. In the test of high temperature resistance, it can be continuous running more than 40 minutes under the condition of flue-gas temperature more than 280℃ to reach the objective of exhaust smoke of fire protection. It can be one cameral dual use after equipped with double speed motor. It can be ventilation and air exchange in the low-speed, also it can be exhaust smoke of fire protection in the high-speed. The motor installed inside of box called Type B. It is generally used as ventilation of supply air and exhaust air.
Operating conditions
- Operating temperature: -20~+40℃(Can be continuous running);
- High temperature resistance: 100℃(Can be continuous running 20 hours),300℃(Can be continuous running 60 minutes);
- Humidity: <90%;
- Medium conditions: Air (Dust content is less than 100mg/m³);
- Power supply: Three phase, 380V/50Hz.
Fan configuration
| Standard configuration |
Options and accessories (When placing order, indicate whether to buy) |
|
|

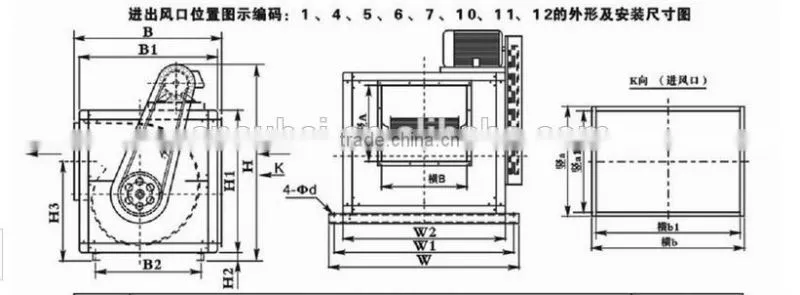

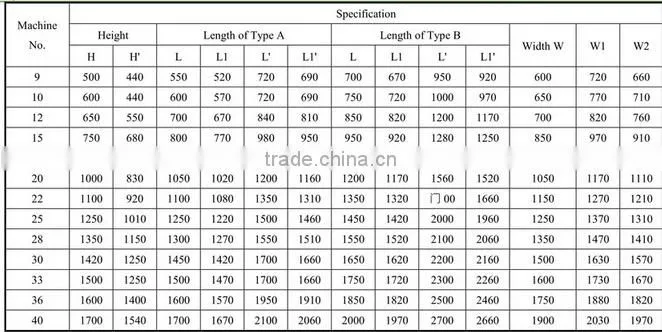

HTFC- specification

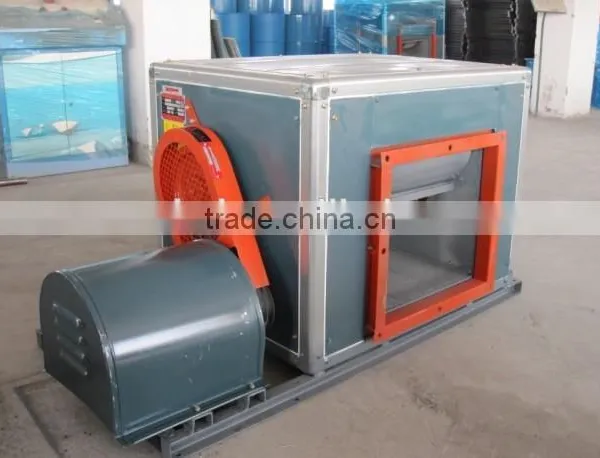

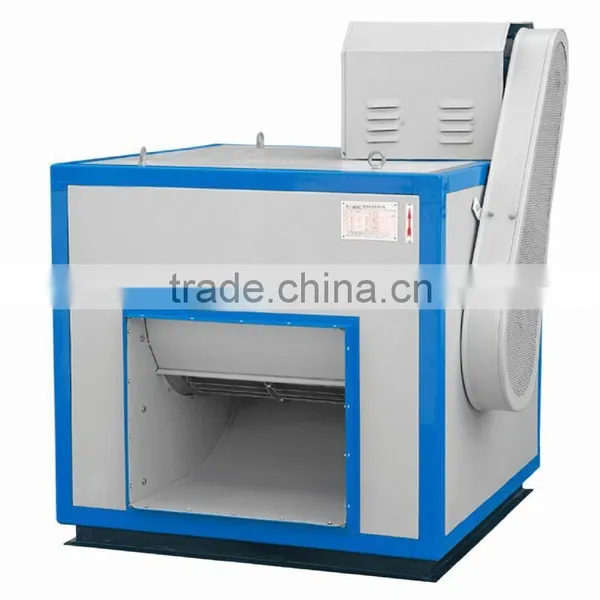

Product prcture

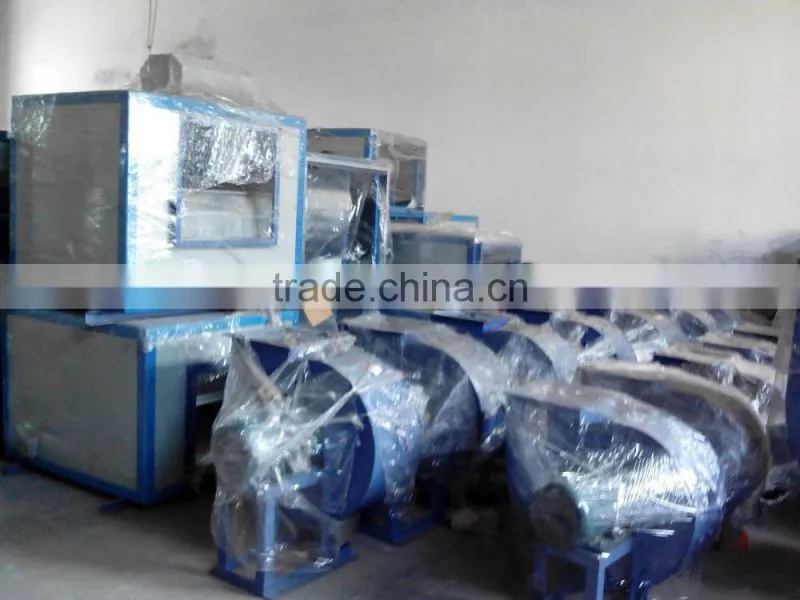

Packaging & Shipping
Our Services
We provide good quality service for our clients. If you need sample for testing or showing to your clients,we can deliver the sample by international express.You should pay the sample and express cost.
We can also design the product according to your specific requirement.
We can provide you installation guide.If parts are damaged in the quality insurance period because of our quality,we can change the damaged parts free of charge.
Company Information
FAQ
Quality Control:
100% of the fans will be tested before packing. Put sample for 24 hours running to test its quality reliability , and we will also test its Proformance/temperature.
Each fan should pass all these QC procedures before shipping to customer.
100% of the fans will be tested before packing. Put sample for 24 hours running to test its quality reliability , and we will also test its Proformance/temperature.
Each fan should pass all these QC procedures before shipping to customer.
Trade Terms:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 30~35 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days.
4. Shipping port: Shenzhen , China
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 30~35 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days.
4. Shipping port: Shenzhen , China
Delivery detail:
We ship goods by container/LCL/to warehouse nearby.
We ship goods by container/LCL/to warehouse nearby.
