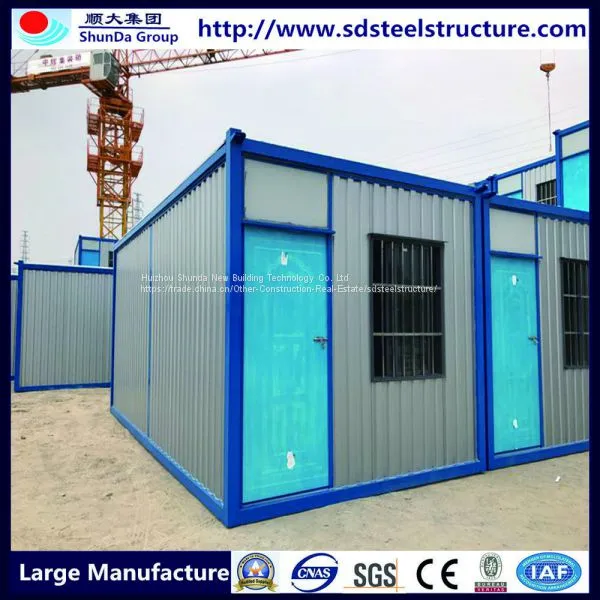

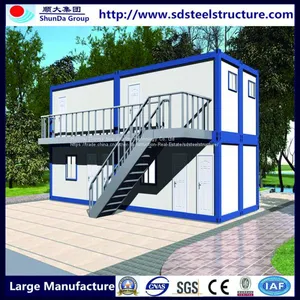

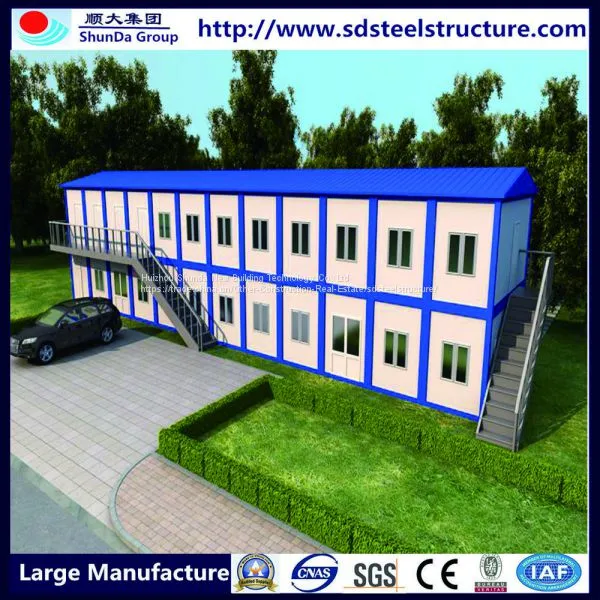

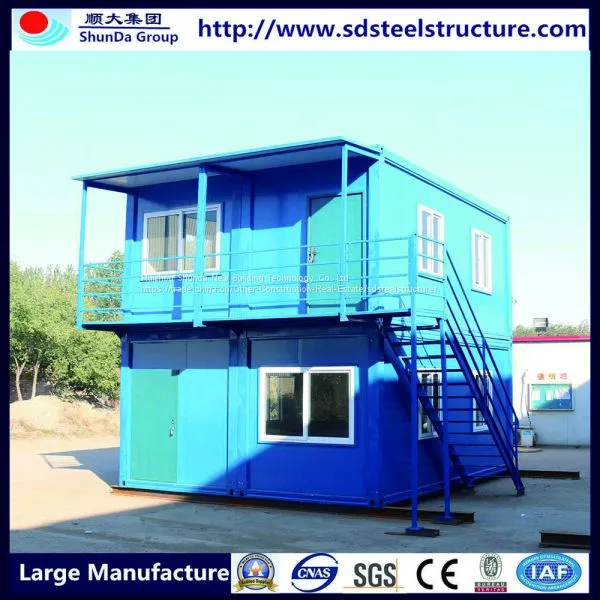

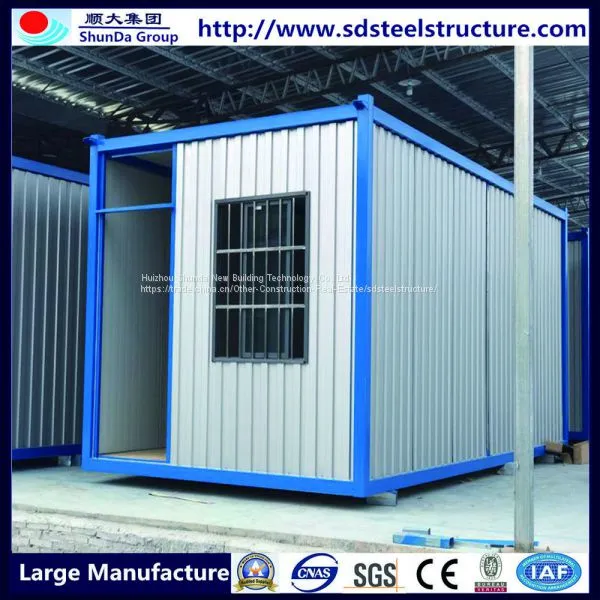

Modular House- Modular Home-Prefab House

Name: Modular House- Modular Home-Prefab House
Brand: SHUNDA
SKU: 144917896
Availability: InStock

US$ 1200 - 1800 MOQ: 15 Sets

Key Specifications

Brand Name:

SHUNDA

Place of Origin:

China

Model Number:

LSV-0096

Huizhou Shunda New Building Technology Co. Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhe, China

Delivery Detail:

20 days

Brand Name SHUNDA

Place of Origin China

Model Number LSV-0096

Material Sandwich Panel

Use Other, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

1.1 Floor

frame construction:		- made of cold rolled, welded steel profiles, thickness 2,5/3 mm - 4 corner casts, welded - two fork lift pockets on the long side (apart from type 30') - inside clearance of fork lift pockets: 252 x 100 mm - fork lift pocket distance in centre: 2,050 mm1/2, optional: 950 mm, 1,650 mm or without fork lift pockets one of each package with one pair of fork lift pocket on bottom one - steel cross members with omega profiles, thickness = 2.5 mm - optional: double amount of floor cross members double amount of floor cross members with underpadding
insulation:	CN-31	MW 80MM insulation inside.120 kg/m3 rock wool insulated Or 80mm insulation EPS 38-40 kg/m³
	CN-11	PU 80MM insulation inside.38-40 kg/m3 polyurethane insulated Or 80mm insulation EPS 38-40 kg/m³
insulation thickness:		80 mm

subfloor: 0.5 mm thick, galvanised steel sheets (subject to differing steel finish)

floor plates:	plywood board thickness 18 mm , or 18mm OSB flooring ( 100% E0 grade , moisture proof mothproof, anti-fire grade B2)
	cement-bound chipboard thickness 18 mm E1 in accordance to EN 717-1 fire behaviour A2-s1, d0 in accordance to EN13501-1
floor cover:	vinyl floor cover thickness 1.5 mm LG Chem
	Option 1: vinyl floor cover thickness 2.0 mm Option 2 : Plywood floor Option 3 :aluminium checker plate thickness 3 + 1 mm

1.2 Roof

frame construction:		- made of cold rolled, welded steel profiles, thickness 3 mm Q235A - 4 corner casts, welded - roof cross members made of steel Q235A 3 mm thickenss
cover:		galvanised steel plate with double rabbet, thickness 0.5 mm
insulation type:	CN-31	MW 0.5mm galvanized painting steel both side and foaming polystyrene 40MM in the middle , colour: white in side and out side as ceiling , and insulated 60 mm EPS (density 38-40 kg/m³).
	CN-11	PU 0.5mm galvanized painting steel both side and foaming polystyrene 40MM in the middle , colour: white in side and out side , and insulated 60 mm EPS (density 38-40 kg/m³).
insulation thickness:		40 + 60 mm
Option ceiling sheeting:		coated chipboard 10 mm thick, white, E1 in accordance to EN 312, flame behaviour D-s2, d0 according to EN 13501-1 plasterboard with coated steel plate² 10mm thick, colour: white (similar RAL 9010) flame behaviour A2-s1,d0 according to EN 13501-1
CEE connectors: externaly sunk into short sided container frame

1.3 Wall panels

		wall thickness 60 /100 (depending on insulation type)
available items:		- full - door - window - air conditioning - sanitary window - half - double (only with windows or doors) - fixed glazing
external cladding:		corrugated, galvanised and coated steel sheet, thickness 0.6 mm
insulation type:	CN-31	MW 60MM Mineral Wool (density 110 - 120 kg/m³)
	CN-11	PU 60MM polyurethane (density 38-40 kg/m³)
insulation thickness:		60 mm/ 100 mm
internal cladding:		galvanised steel sheet thickness 0.5 mm, light oak / white
Option internal cladding:		coated chipboard thickness 10 mm, light oak / white. E1 in accordance to EN 312, fire behaviour D-s2, d0 respectively Dfl-s1 in accordance to EN13 501-1 plasterboard with coated steel plate thickness 10 mm, colour: white (similar RAL 9010) flame behaviour A2-s1,d0 s1 in accordance to EN 13501-1

Wall panels - design combinations:

type	insulation	panel thickness	external cladding	insulation thickness	internal cladding
CN-31	MW	60 / 100	steel sheet	60 / 100	- steel sheet	Option
			steel sheet			- double-sided coated chipboard( option ) - plasterboard with coated steel plate (option)
