Specifications

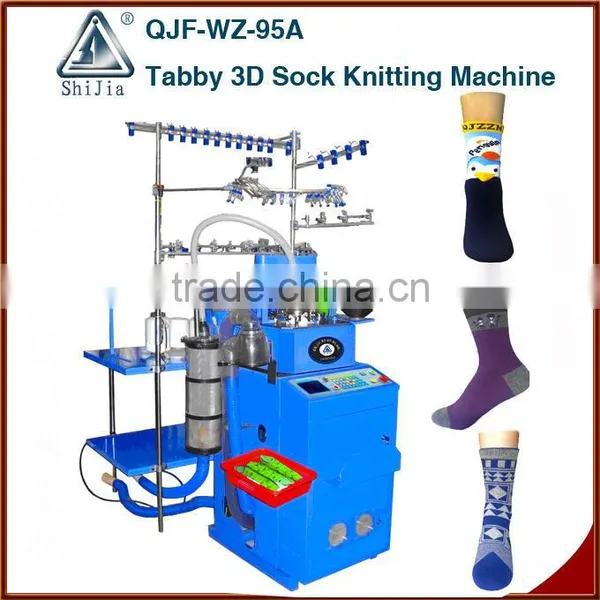

can knit three-dimensional sock for needed patternthe socks looks more beautiful
with higher speed and higher output
Detailed offer Description
can knit three-dimensional sock for needed pattern
the socks looks more beautiful than other socks, and most liked by wide childrens, also adult
Power Required | Drive Motor | 0.85kw |
Fan Motor | 0.75kw | |
Control Box | 0.80kw | |
Floor Area(C.M.)(L.XW.XH.) | 150X120X230 | |
N.W. | 275kg | |
G.W. | 355kg | |
Packing Specification(C.M.) (L.XW.XH.) | 115X105X180 | |
Function:
1. Each line makes weave with a main color and five auxiliary colors, each sock may be knitted with thirteen colors.
2. Drumless, fully electronic control system with Friendly interface,
3. Exclusive inner cam block system for high speed, 250-300 pairs socks per day
4. Stepping motor for thread tension and weave density
5. According to flower type, the thread and triangle are controlled by the electron air controller
6. the most large range of flower type is 200 needles, could weave various kinds of flower type and welt
7. Using sensing unit to protect computer automatically, such as electronic components, highly sensitive broken yarn, broken needle protector etc., which could enhance production benefit and reduce production cost
8. Automatically controlling supplying oil speed, adding oil when needing, saving oil and cutting loss
9. The pattern design software is easy to use and study
10. Available in 220/380/415V, 3 phase 50/60HZ
11. The main part uses popular accessories and could exchange with other kinds of machines
12. Apply the techniques of double picker point and double down picker so that we can make the running of stocking toe and heel much steadier. We use special technique to control the turn-over of the needles to reduce the shake of the machine and change in the electric pressure to lengthen the life of the electric motor.
13. The parameters for pattern and setting can be input from or saved in the USB memory disk.
14. To guarantee easy operations, USB facet adopted for easy to process the data
