high quality interactive multi touch table from shenzhen ---55inch
- 1000 Unit / Units per Month
- shenzhen
- Credit Card PayPal
-
8/8.4 Inch Industrial Touch Screen All-in-One Windows10/11/Linux System Wide Voltage DC9~36V Front Panel IP65 Water Resistant
-
MEKT 18.5/15.6 Inch Industrial Wall Mount Capacitive Touch All-in-One i3i5i7-11 Generation Outdoor High Gloss Embedded Tablet PC
-
Bosto X5 Graphics Drawing Tablet with Screen Full-Laminated Tilt Battery-Free Stylus Touch Bar Adjustable Stand, ,15.6inch Pen Display
-
Marine IP65 Full Hull Waterproof 15.6 Inch Touchscreen All-in-One Wind10/11/Linux Embedded Tablet 1000 Nits Marine Yachts MEKT
-
MEKT 13.3 Inch RK3568 Outdoor High Brightness 1000 Nits Embedded Capacitive Touchscreen 1080P Android All-in-One PC Wall Mounted
-
1366/1080P/ 18.5 Inch Industrial Intelligent Terminal Query Touch Screen All-in-One Machine Embedded Tablet Computer
Product Details
| Products Status: | Stock, Used | Type: | All-In-One | Screen Size: | Other, 55" |
| Processor Brand: | Intel | Memory Capacity: | Other, ≥ 4GB | Hard Drive Capacity: | 320GB |
| Graphics Card Type: | Integrated Card | Display Type: | LCD | Widescreen: | Yes |
| Optical Drive Type: | Other, up to customer's option | Processor Main Frequency: | 1.6GHZ OR 2.8GHZ | Brand Name: | CHIMEE |
| Model Number: | HQ55CSK-2 | Place of Origin: | Guangdong, China |
Product Description
Product Name: high quality interactive multi touch table from shenzhen ---55inch
Product No:HQ55CSK-2
Screen Specification
Panel Size(Diagonal) | 54.64 inch |
Display Area(HxV) | 1209.6mm x 680.4mm |
Outline Dimension(HxV) | 1286.0mm x 745.0mm |
Display Colors | 16.7M |
Resolution | 1920 x 1080 |
Pixel Pitch | 0.630 x 0.630 |
Contrast Ratio | 1000:1 |
Brightness(cd/m2) | 700 |
Responsive Time | <5.5ms |
Viewing Angle(H/V) | 178°/178° |
Life Time(minimum) | 50,000 hours |

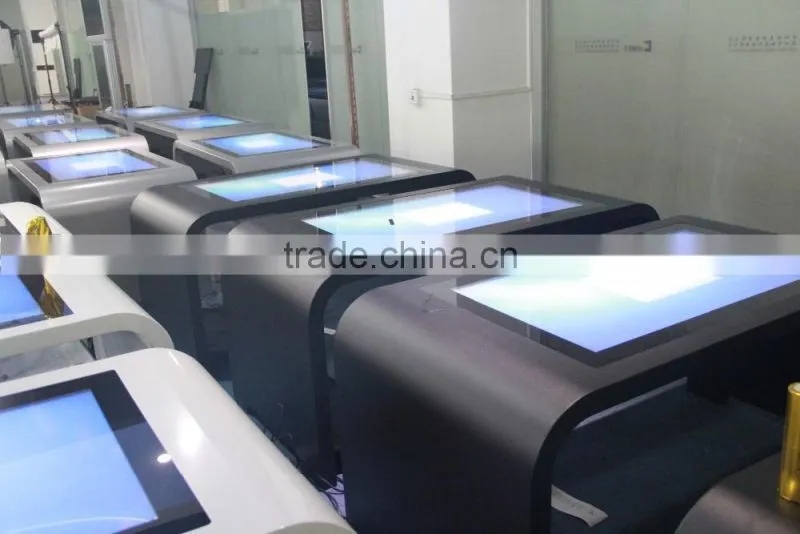

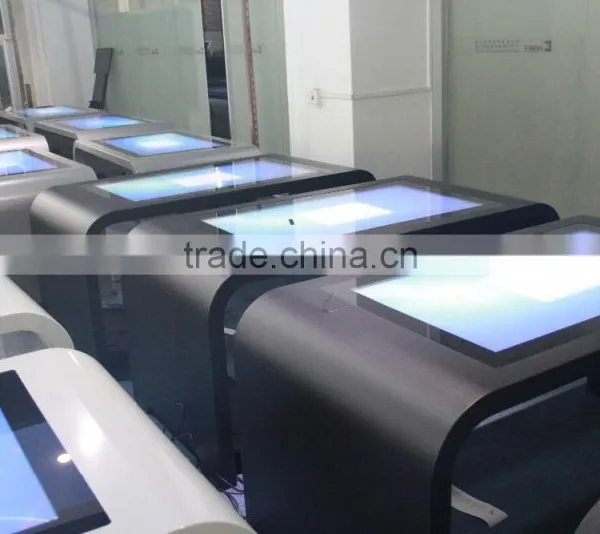

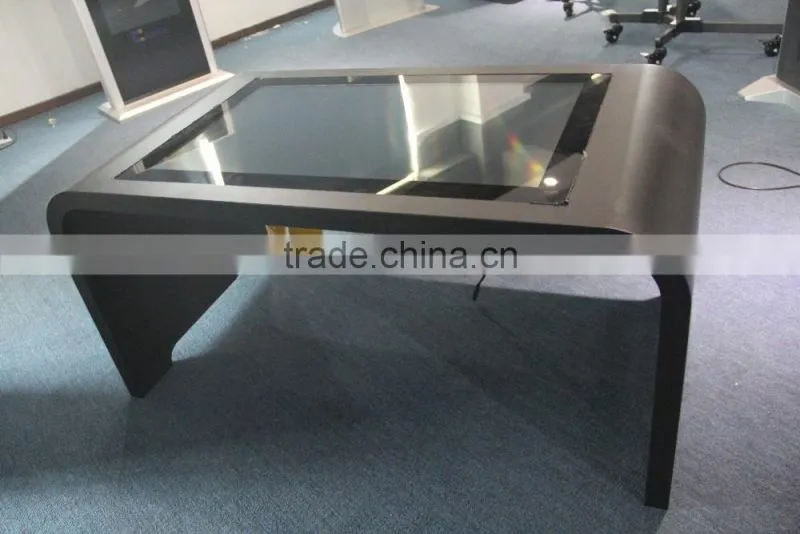

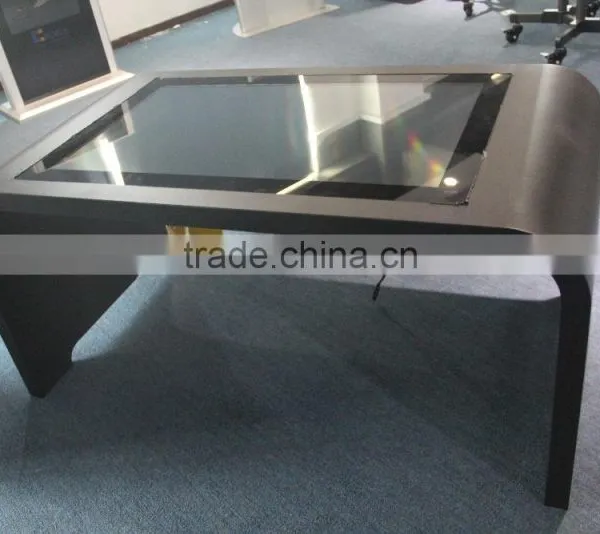

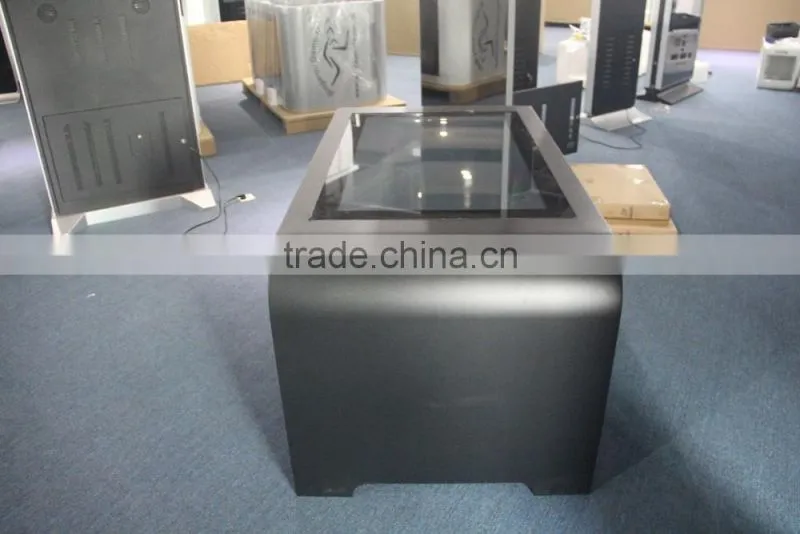

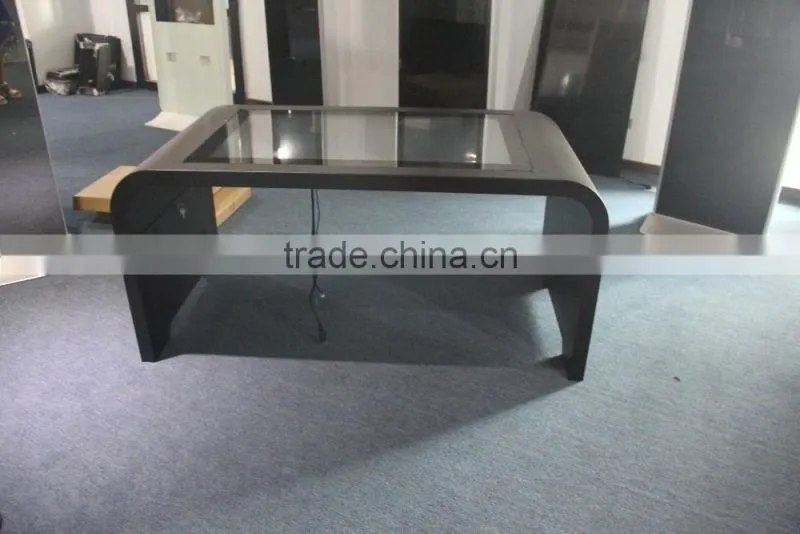

Product Picture
Product features:
1. Out enclosure is made by high class metal and painted
by environment protecting material.Outer enclosure color
can be customized.
2. Adopt high transparent tempered glass with
2mm--8mm thickness, protecting the LCD screen been
damaged or scraped.
3. Can be fixed on the wall by VESA holes and wall
mounting brackets or on the groud by screws to
protect the player being pushed down by people.
4. With Capacitive Touch Screen, IR Multi Touch Screen.
5. Can be added with A4 Printer or Thermal Printer.
Can be customized
Built-in pc solution | ||||
Solutions | 1037U | i3 | i5 | i7 |
CPU | Intel Celeron 1037U | 4th Gen Intel Core i3 | 4th Gen Intel Core i5 | 4th Gen Intel Core i7 |
Chipset | NM70 | H81 | H81 | H81 |
RAM | DDR3/1600/4G | DDR3/1600/4G | DDR3/1600/4G | DDR3/1600/8G |
Hard disk | 128GSSD or 500G HDD | |||
Graphics | Intel HD Audio | Integrated with CPU | Integrated with CPU | Integrated with CPU |
Audio | RTL 662 HD Audio | |||
Network | RTL 8111 Giga Ethernet controller | |||
WIFI | 150M 802.11A/B/G/N | |||
Speaker | 2 build-in high quality stereo speakers(3W or 5W) | |||
Supported OS | Windows7/8/8/1/Latest stable version of fedora or Ubuntu | |||
Can be customized
IR TOUCH SCREEN SPECIFICATIONS | |||
Detectable Touch Points | True Multi-Touch(Detects over 32 touch points simultaneously) | ||
Ultimate | 50+Touch Points | ||
Plus | 32+Touch Points | ||
Standard | 12 Touch Points | ||
Basic | 6 Touch Points | ||
Dual | 2 Touch Points | ||
Glass | 3mm/4mm Mighty Glass | ||
Sample Rate | Up to 250fps(depends on frame size) | ||
Finger Touch Accuracy | 2.7mm | ||
Touch Activation Force | No pressure required | ||
Power Supply | USB Powered | ||
Data Interface | USB 2.0(Full speed),compatible with USB 3.0/USB 1.1 PORT | ||
Operating System | Windows7/8/vista/xp,Mac OS X,Ubuntu/ Fedora Android (need to be customized) | ||
Touch Durability | Unlimited | ||
Waterproof | Anti-Spill, customizable to IP66 | ||
Programming Interface | Windows Native Touch/TUIO/SDK | ||
-----------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------
PROJECTED CAPACITIVE TOUCH PANEL | ||
ITMES | SPECIFICATIONS | NOTE |
Touch Point | 10points (under 42inch) 60points(>=55inch) |
|
Structures | Glass/Glass |
|
Total Thickness | 2.7±0.15mm (Cover_1.8mm & Sensor_0.7mm) |
|
Operation Conditions | -20℃~+70℃ at Min 45% to Max 85% RH |
|
Input Method | Finger or Cap.Stylus |
|
Resolution | 25ppi(Min) | Based on WIN7 definition ppi (Pixel per inch) |
Accuracy | Within 2.5mm each target & 10% Jitter limit on moving | |
Transparency | 85±5% | By BYK-ardner at 550nm |
Haze | 3%(Maximum) | |
Size | 13.3inch to 84inch | |
If there is anything I can do for you,
please contact me freely.--Lydia Chen
Skype: lydia chimee
WhatsApp:+8618927452750
Mob:+86-189-2745-2750
Tel:+86-755-27131215
Fax:+86-755-27131725
Website:
1.Q:what HS code for your ad player?
A:85219090
2.Q:what color can we choose?
A:our standard color is black or silver, but you can customize other colors.
3.Q:how long is your warranty? And what’s the detail content?
A:one year warranty from the shipping date. And it is ok upgrade to two or three years
guarantee with additional cost
Under guarantee: Free spare parts shipping, after checking by pictures and videos,
if we confirm the damage not cause by human, we will ship spare parts to do the
replacement for free.
Out of guarantee: we offer repairing parts at lower cost, and service free in charge.
4. Q:what payment can you accept?
A:HSBC T/T,western union,paypal
For sample order:100% payment
For bulk orders:30% deposit in advance to start the production. balance payment
clear before the delivery.
