10.4 Inch Tft Lcd Monitor Digital Displays

Specifications

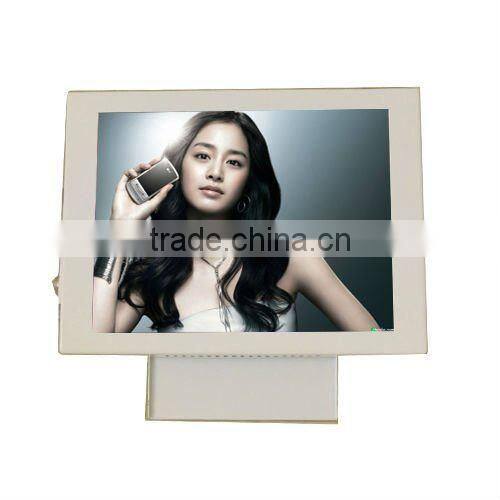

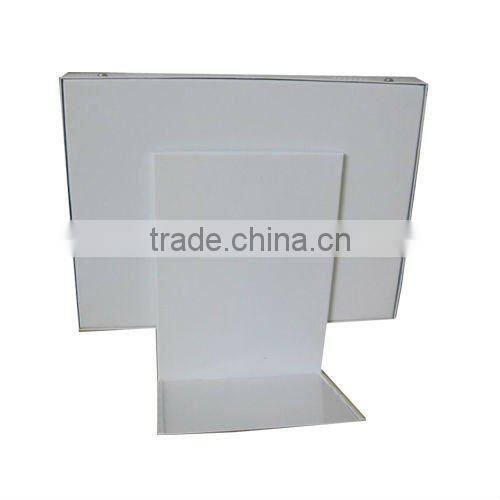

10.4 Inch tft lcd monitor digital displays

Product No. : HQ104-3

Main Function

1.Local network: network player with 10/100M Ethernet, 54M WIFI or 3G (WCDMA, TDS-CDMA, CDMA2000) can download media contents from local server and managed by mediaserversoftware.

2.Auto Download and Playback: Easy to set auto download time frame and auto download media contents from the media server.

3.Playlist Support: Media server software supports playlist editor and scheduling to send playlist to multiple groups of network players

4.Time Schedule: Playlist supports download, playback and stop time for each group of network players to do scheduled functions, the player turns on/off at the same time everyday according to your setting.

5.Scrolling Text: News ticker message can be sent from media server and scroll on bottom screen with different text color, speed.

6.Built-in CF and SD card reader, support CF/SD/MS/MMS/XD card and USB drive, using CF and SD card as the source of programming, playing with high stability.

7.Control command:Create group and player ID/play/stop/volume setting/open and close video output/reboot/close/format CF card/send text note/send playlist/send command of auto loading and play/display CF card status, capacity and filename.

8.No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.

9.AUTO/NTSC/PAL video playing format is optional.

10 Built-in clock and calendar function in the system of player.

11.OSD Language: supports Chinese, English, Russian, etc.

Product Features

1.Outer shell is made by high-class metal material,black or silver color etc, back-fixing mode with nice appearance.

2.With a protection layer of ultrathin, high light, perfectly clear tempered glass on the surface of the LCD screen to protect the screen being damaged.

3.Choosing Samsung, LG, Chi Mei, AU, Toshiba, SVA etc LCD panels. A Class 335 standard, full new and factory original packing screen.

4.Theft-protection device effectively prevent the player and CF card from being stolen in public place.

5.Built-in two high quality stereo speakers.

Technical Specifications

1.Compatible file formats:

MP4(AVI:DIVX/XVID), MPG2(DVD:VOB/MPG2), MPEG1(VCD:DAT/MPG1), MP3, JPG ,WMV, AVI, etc.

2.Play from:

Memory flash: CF Card, SD card or USB (32M-16GB)

Built-in flash memory: (optional)

USB: high speed USB 2.0 (Host)

3.Others:

Power supply: AC110V-240V, 50/60HZ

Output voltage adapter: 12V, 5A

Working temperature: -15°C - 65°C Working humidity: 20%-80%

Storage temperature: -20°C - 60°C Storage humidity: 10%-95%

4.Packing Information:

Packing list: LCD media player,Keys, English user’s manual, Remote controller

Packing size: 192*110*24cm Net weight: about 111kg Gross weight: about 125kg Volume Weight: 102kg

Applicable Fields

1.Business Organizations: supermarket, shopping malls, chain shops, travel agencies, etc.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, etc.

3.Non-profit Organizations: Telecommunications, post offices, hospital, etc.

4.Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks etc.

5.Real Estate Property: Apartments, offices, commercial buildings, etc.
