Home > Consumer Electronics > Display & Accessories > LCD Module > 46inch 5.3 mm Ultra Narrow Bezel Lcd Video Wall

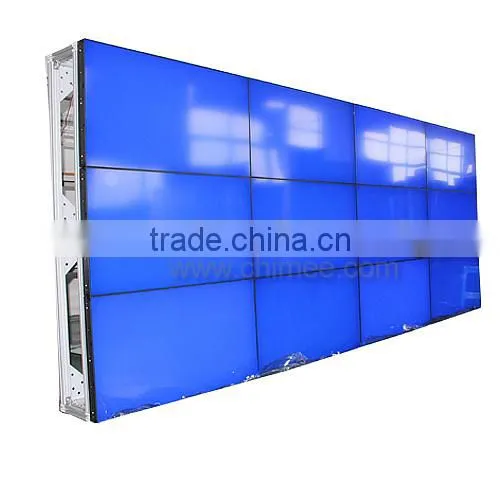

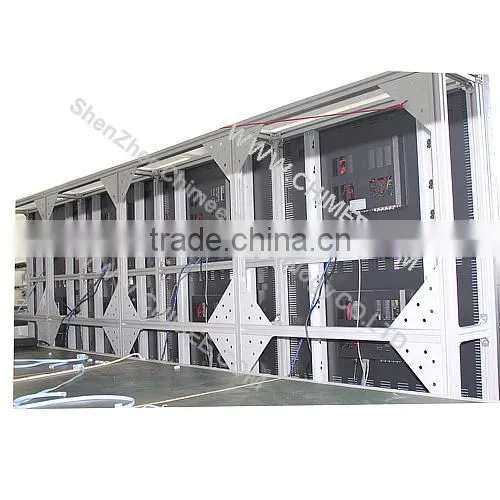

46inch 5.3 mm Ultra Narrow Bezel Lcd Video Wall

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

HQ460-V

Contact Supplier Request Quote Chat Now

Shenzhen Chimee Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name NO

Model Number HQ460-V

Specifications

46inch 5.3 mm ultra narrow bezel lcd video wall
1.Samsung original panel
2.,build-in matrix
3.1080P
4.short lead time

Product number : HQ460-V

46inch 5.3 mm ultra narrow bezel lcd video wall

Features:

Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.

Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV

One Screen,Four Image,Image Roaming,M*N*4 dispaly

HD video wall unit--- High brightness,high contrast,High gamut .

Flexible structure design ---easy installation ,extensible,arbitrary combination

Stable performance,suitable working for a long time

Specifications
Model No.			hq420-v
Panel Size			46" LG DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight)
Display area			1210(W)*680.8(H)(mm)
Aspect Ratio			16:9
Max Resolution Support			1920x1080
Color			8Bit,16.7M
Brightness (nits)			700cd/m2
Contrast			2500:1
Visual Angle (H/V)			178°
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
Input and output
DVI			1
HDMI			1
VGA			1
YPbPr			1(BNCx3)
S-video			1(BNCx2)
Composite Video Input/(AV)			3(BNCx3)
Composite Video Output			2(BNCx2)
Control signal input and loop out			RS232(RJ45-8)
Split Screen			Support Picture in Picture(PIP/POP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			250W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension
Video Wall Controller(Built-in each Screen)
Model No.	HQ550-V
Input	CVBS	1*BNC port, support PAL / NTSC all formats
	VGA	1*D15 port, support SVGA / XGA / WUXGA
	DVI	1*DVI-I port,support SVGA / XGA / WUXGA
	HDMI	5*BNC ports, support SVGA / XGA / WUXGA
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port,support SVGA / XGA / WUXGA
Operate mode	Panel key operation(need customization)
	Standard RS232 port( provide free control software)
	ADD Code
Engineering software	XK _LCD_CONTROL_Manager, RS232 interface control (1 input, 2 looping out)
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	307×283×55(mm)
Weight	About 3.5KG
