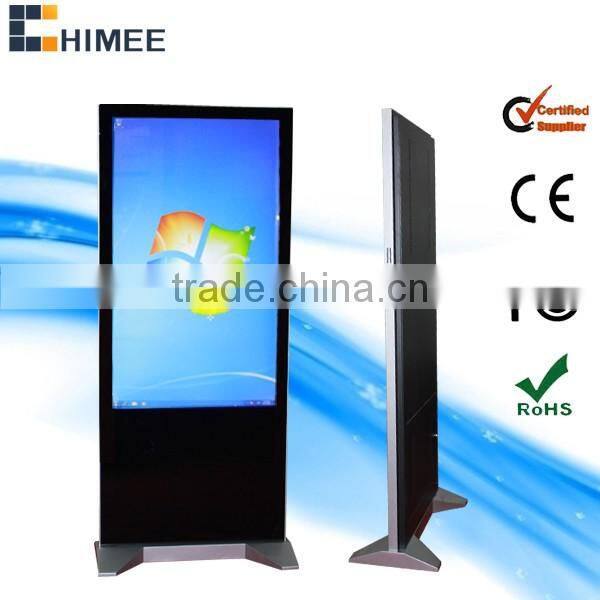

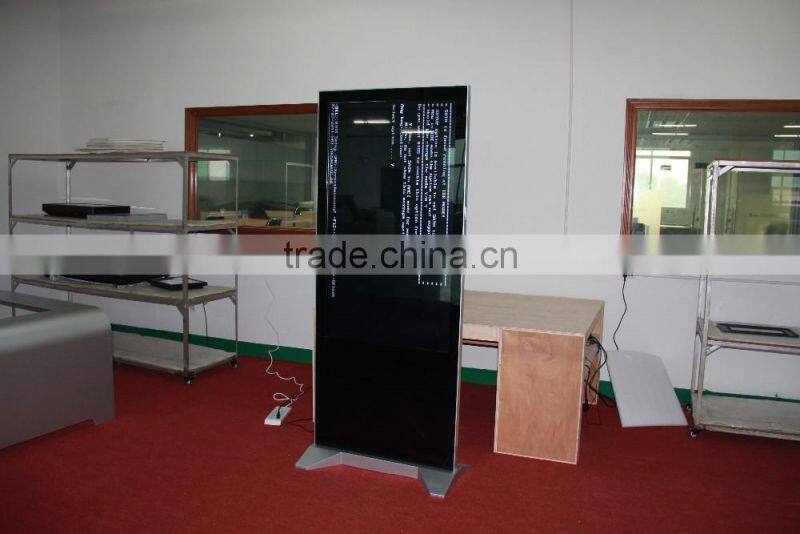

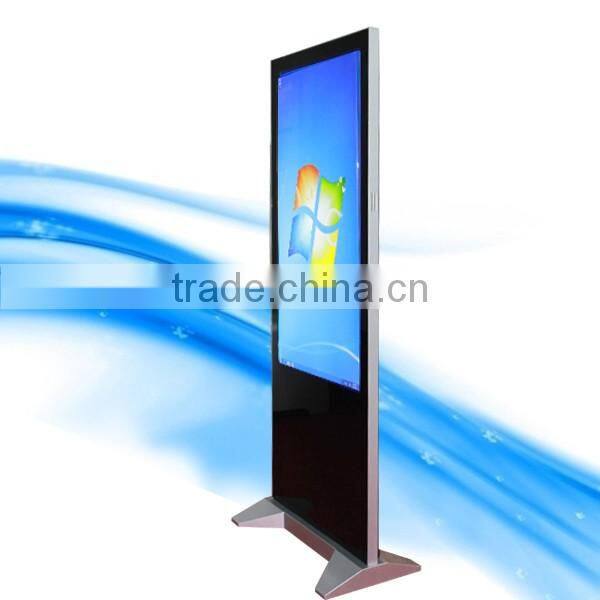

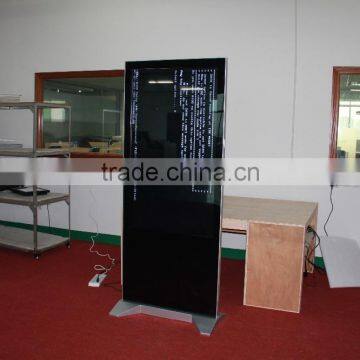

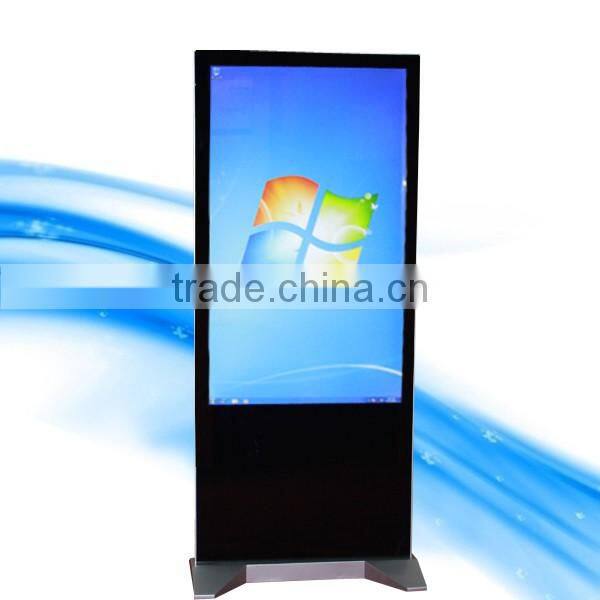

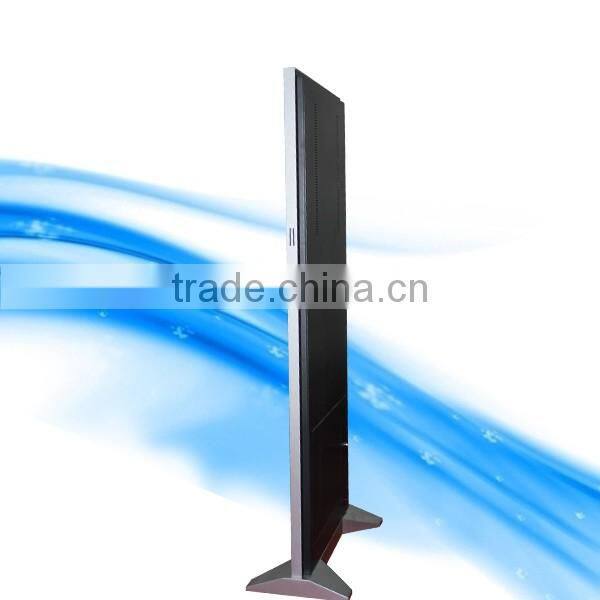

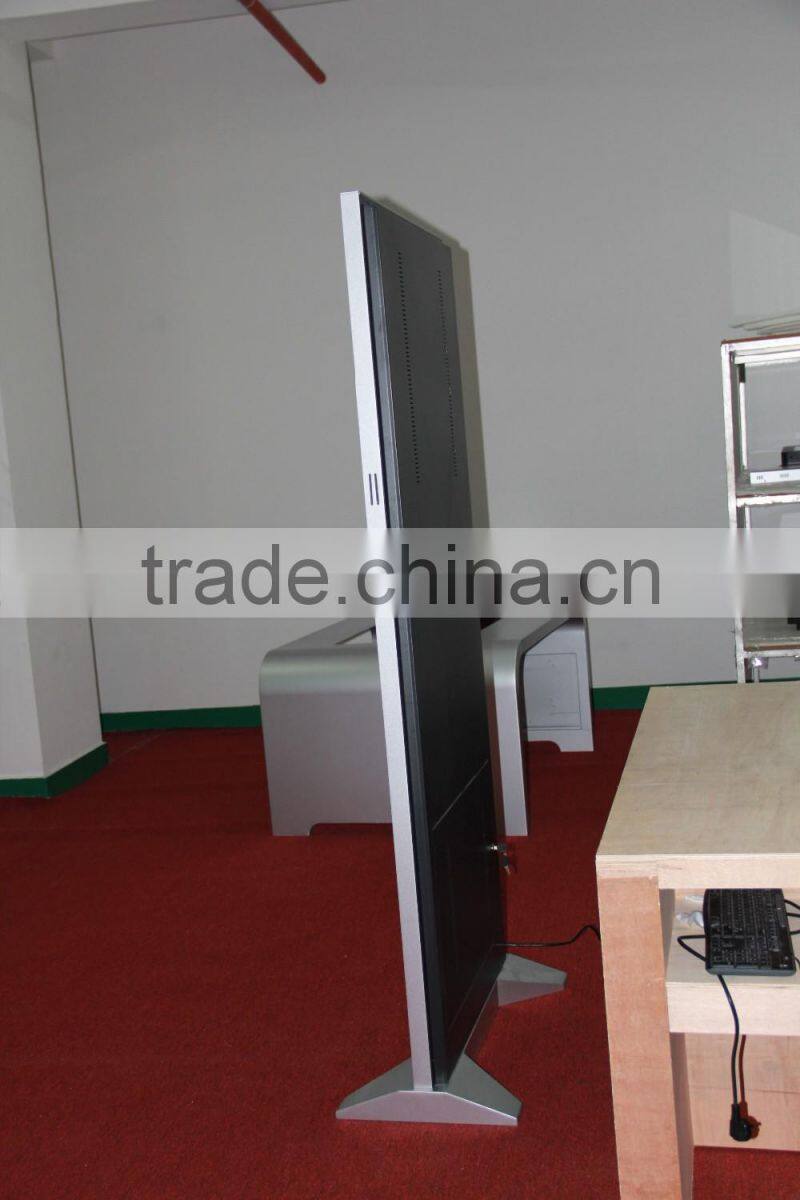

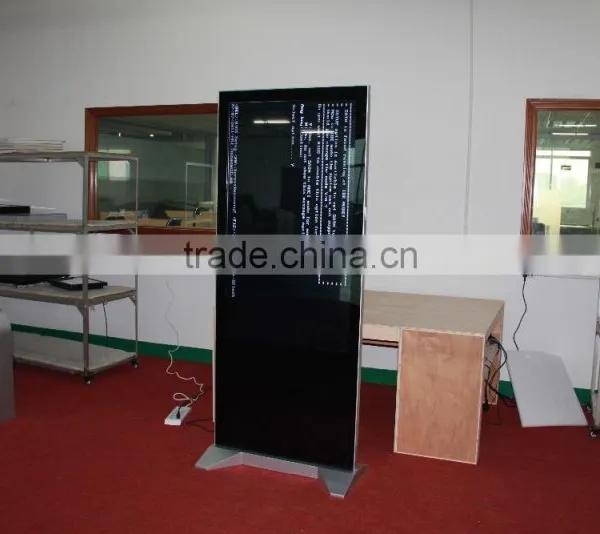

55inch NEW Led Full hd ad Display All in One pc

Shenzhen Chimee Technology Co., Ltd.
55inch NEW Led Full hd ad Display All in One pc thumbnail-1
55inch NEW Led Full hd ad Display All in One pc thumbnail-2
55inch NEW Led Full hd ad Display All in One pc thumbnail-3
55inch NEW Led Full hd ad Display All in One pc thumbnail-4
55inch NEW Led Full hd ad Display All in One pc thumbnail-5
55inch NEW Led Full hd ad Display All in One pc photo-1
55inch NEW Led Full hd ad Display All in One pc photo-2
55inch NEW Led Full hd ad Display All in One pc photo-3
55inch NEW Led Full hd ad Display All in One pc photo-4
55inch NEW Led Full hd ad Display All in One pc photo-5
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
All-In-One
Screen Size:
Other, 55inch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type All-In-One
Screen Size Other, 55inch
Processor Brand Intel
Memory Capacity Other, ≥ 4GB
Hard Drive Capacity 320GB
Graphics Card Type Integrated Card
Display Type LCD
Widescreen Yes
Optical Drive Type Other, up to customer's option
Processor Main Frequency 1,8GHZ OR 2.6GHZ
Brand Name CHIMEE
Model Number HQ55ES-C1-T
Place of Origin Guangdong, China

55inch NEW led full hd ad display all in one pc

product NO: HQ55ES-C1-T



Product Description



55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc







Screen Specifications



Panel Size(Diagonal)

54.64 inch

Display Area(HxV)

1209.6mm x 680.4mm

Outline Dimension(HxV)

1955.5.0mm x 800mm

Display Colors

16.7M

Resolution

1920 x 1080

Pixel Pitch

0.630 x 0.630

Contrast Ratio

1000:1

Brightness(cd/m2)

700

Responsive Time

<5.5ms

Viewing Angle(H/V)

178°/178°

Life Time(minimum)

50,000 hours





Product Features



1.Out enclosure is made by high class metal and painted by

environment protecting material. Outer enclosure color can be

customized.

2.Adopt high transparent tempered glass with 2mm--8mm thickness, protecting the LCD screen been damaged or

scraped.

3. Can be fixed on the ground by screws to protect the player

being pushed down by people.

4.With Resistive Touch Screen, IR Multi-Touch Screen support

multiple O/S. (Win 7, Win 8, Linux etc)

5.Can be added with Webcam.

6.Can be added with Printer, A4 printer or Thermal printer.

7.Can be added with Wheels.

8.Can be installed with Digital Signage Software for advertising

and broadcasting.(Extra cost will be charged)







Hardware solutions

Can be customized

Built-in pc solution

Solutions

1037U

i3

i5

i7

CPU

Intel Celeron 1037U

4th Gen Intel Core i3

4th Gen Intel Core i5

4th Gen Intel Core i7

Chipset

NM70

H81

H81

H81

RAM

DDR3/1600/4G

DDR3/1600/4G

DDR3/1600/4G

DDR3/1600/8G

Hard disk

128GSSD or 500G HDD

Graphics

Intel HD Audio

Integrated with CPU

Integrated with CPU

Integrated with CPU

Audio

RTL 662 HD Audio

Network

RTL 8111 Giga Ethernet controller

WIFI

150M  802.11A/B/G/N

Speaker

2 build-in high quality stereo speakers(3W or 5W)

Supported  OS

Windows7/8/8/1/Lastest stable version of fedora or Ubuntu





Touch monitor

Can be customized

IR TOUCH SCREEN SPECIFICATIONS

Detectable Touch Points

True Multi-Touch(Detects over 32

touch points simultaneously)

Ultimate

50+Touch Points

Plus

32+Touch Points

Standard

12 Touch Points

Basic

6 Touch Points

Dual

2 Touch Points

Glass

3mm/4mm Mighty Glass

Sample Rate

Up to 250fps(depends on frame size)

Finger Touch Accuracy

2.7mm

Touch Activation Force

No pressure required

Power Supply

USB Powered

Data Interface

USB 2.0(Full speed),compatible with USB 3.0/USB 1.1 PORT

Operating System

Windows7/8/vista/xp,Mac OS X,Ubuntu/ Fedora Android

 (need to be customized)

Touch Durability

Unlimited

Waterproof

Anti-Spill, customizable to IP66

Programming Interface

Windows Native Touch/TUIO/SDK

-----------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------

PROJECTED CAPACITIVE TOUCH PANEL

ITMES

SPECIFICATIONS

NOTE

Touch Point

10points (under 42inch)

60points(>=55inch)



Structures

Glass/Glass



Total Thickness

2.7±0.15mm (Cover_1.8mm

& Sensor_0.7mm)



Operation Conditions

-20℃~+70℃ at Min 45% to

Max 85% RH



Input Method

Finger or Cap.Stylus



Resolution

25ppi(Min)

Based on WIN7 definition ppi

(Pixel per inch)

Accuracy

Within 2.5mm each target &

10% Jitter limit on moving

Transparency

85±5%

By BYK-ardner  at 550nm

Haze

3%(Maximum)

Size

13.3inch to 84inch





Application Filed

Business Organizations: supermarket, shopping malls, exclusive agency, chain

shops, large-scale sales, hotels, restaurants, travel agencies, etc.

Financial Organizations: Banks, negotiable securities,funds, insurance companies,

pawnshops,etc.

Non-profit Organizations: Telecommunications, post offices, hospital, schools, etc.

Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks,exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market,

lottery centers, etc.

Real Estate Property: Apartments, offices, commercial buildings, model rooms,

property brokers,etc.

Entertainments: Movie theaters, fitness halls, clubs, massage rooms, bars, cafes,

Internet bars, beauty shops, golf course, etc.





Company Information

55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc









Packaging & Shipping

55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc55inch NEW led full hd ad display all in one pc

FAQ

1.Q:what HS code for your ad player?

A:85219090

2.Q:what color can we choose?

A:our standard color is black or silver, but you can customize other colors.

3.Q:how long is your warranty? And what’s the detail content?

A:one year warranty from the shipping date.  And it is ok upgrade to two or three years guarantee with additional cost

Under guarantee: Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.

Out of guarantee: we offer repairing parts at lower cost, and service free in charge.

4. Q:what payment can you accept?

A:HSBC T/T,western union,paypal

For sample order:100% payment

For bulk orders:30% deposit in advance to start the production. balance payment clear before the delivery.
