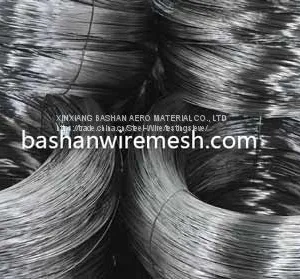

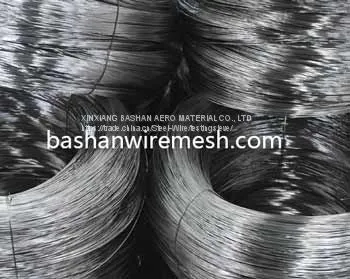

2017 New Product Stainless Steel Wire
- Qingdao,Tianjin,Shanghai
- T/T L/C
- 15 days
You May Like
Product Details
| Brand Name | Bashan | Place of Origin | China | |
| Model Number | 304,304L,316,316L | Certification | ISO | |
| Length | as your request | Application | Convenient automatic coiling and winding for precision spring | |
| Standard | Other, AISI, ASTM, DIN, EN, GB, JIS | Grade | 300 Series | |
| Wire Gauge | 0.1mm--5.5mm | C Content (%) | Standard | |
| Si Content (%) | Standard |
Product Description
Product Description:
Chemical Composition for Spring wire with diameter 1.0 mm to 5.0 mm.
And the form is as follows:
Chemical Composition for Types of Stainless Steels | ||||||||
Type AISI | C % | Mn % | P % | S % | Si % | Cr % | Ni % | Mo % |
302 | <0.15 | <2.00 | <0.045 | <0.03 | <1.00 | 17.0-19.0 | 8.0-10.0 | _ |
304 | <0.08 | <2.00 | <0.045 | <0.03 | <1.00 | 18.0-20.0 | 8.0-10.50 | _ |
304H | 0.06-0.10 | <2.00 | <0.045 | <0.03 | <1.00 | 18.0-20.0 | 8.0-10.0 | _ |
316 | <0.08 | <2.00 | <0.045 | <0.03 | <1.00 | 16.0-18.0 | 10.0-14.0 | _ |
321 | <0.08 | <2.00 | <0.045 | <0.03 | <1.00 | 17.0-19.0 | 9.0-13.0 | _ |
347 | <0.08 | <2.00 | <0.045 | <0.03 | <1.00 | 17.0-19.0 | 9.0-12.0 | _ |
Spring wire with diameter 1.0 mm to 5.0 mm | ||||||
Wire Type | Diameter | Elongation | Tensile Strength | Spool type | Weight /Spool | Material |
Coarse Wire | 5.5--1.0mm | ≥ 25% | ≥ 650Mpa | Barrel, Coil | 50kg, 100kg /barrel | 304, 304L, 308, 316, 316L, 321, 410, 430 |
Medium Wire | 1.0--0.09mm | ≥ 25% | ≥ 650Mpa | OB80, DIN160, DIN200 | 500g-2kg /spool | 304, 304L, 316, 316L, 321 |
Fine Wire | 0.09--0.02mm | ≥ 25% | ≥ 700Mpa | OR80, KB80, HK100 | 150g-500g /spool | 304, 316, 316L |
Our Certifications:
1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Our Company:
Xinxiang Bashan Aero Material Co., Ltd.
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Basahn factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.
